3.3. FIRST SLICE
2. Bed Size
This setting defines the maximum distance the extruder may travel along
the X and Y axis. If the dimensions are not readily available for the printer
then it can be easily measured.
Be sure to measure from the lower left corner where the extruder nozzle
rests when in the home position to the maximum distance the nozzle can
travel in each direction. Take into account that the X carriage may touch
the frame before the nozzle reaches it’s full distance, this will depend on
the printer make and model.
Also remember to check any firmware end-stop settings which may limit
X/Y movement.

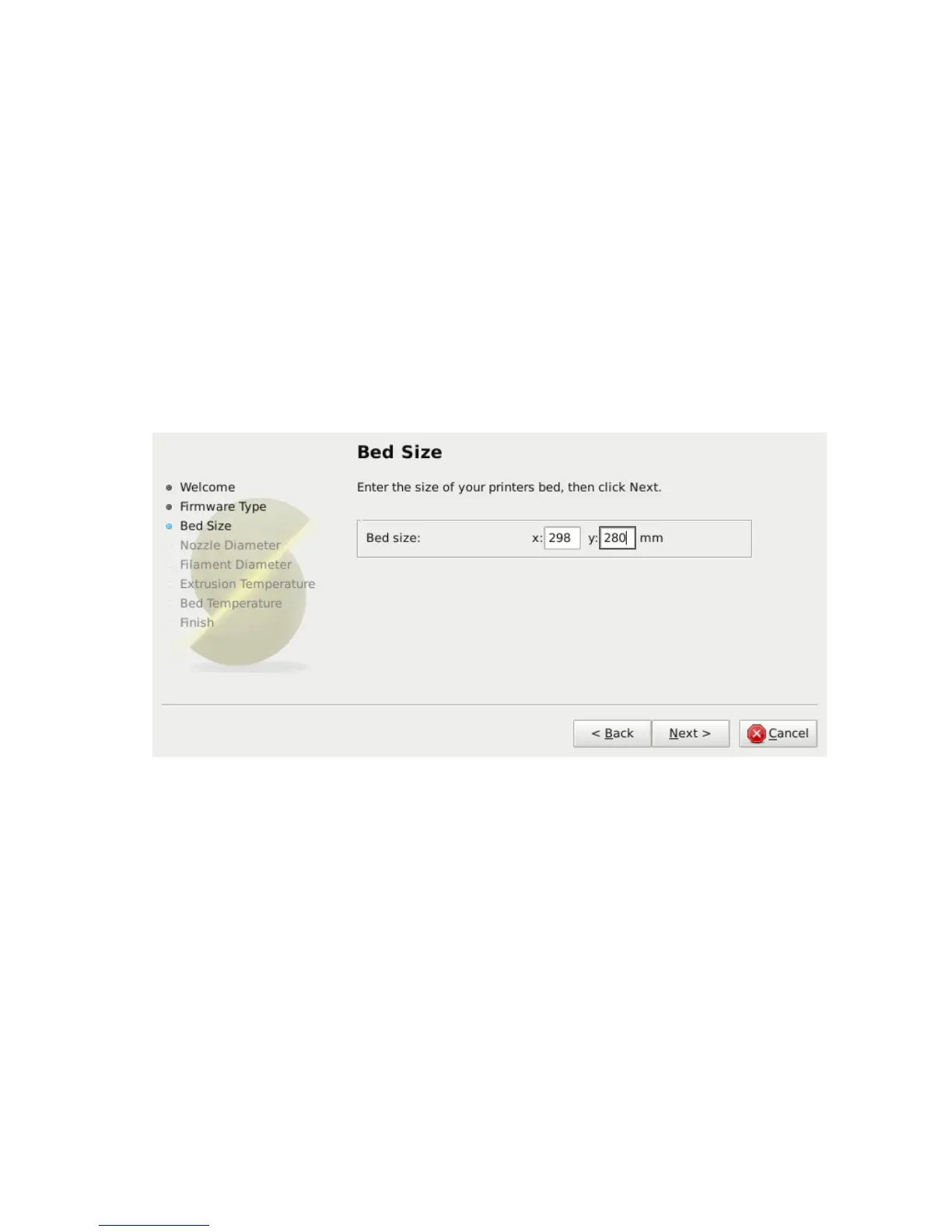

Figure 3.3: Configuration Wizard: Bed Size
43
