LulzBot TAZ User Manual

5.3. HOME PRINTER
access to the hobbed bolt and filament feed hole(Fig. 5.2, page 93). Feed the
end of the plastic filament into the filament feed hole (Fig. 5.2). Now you

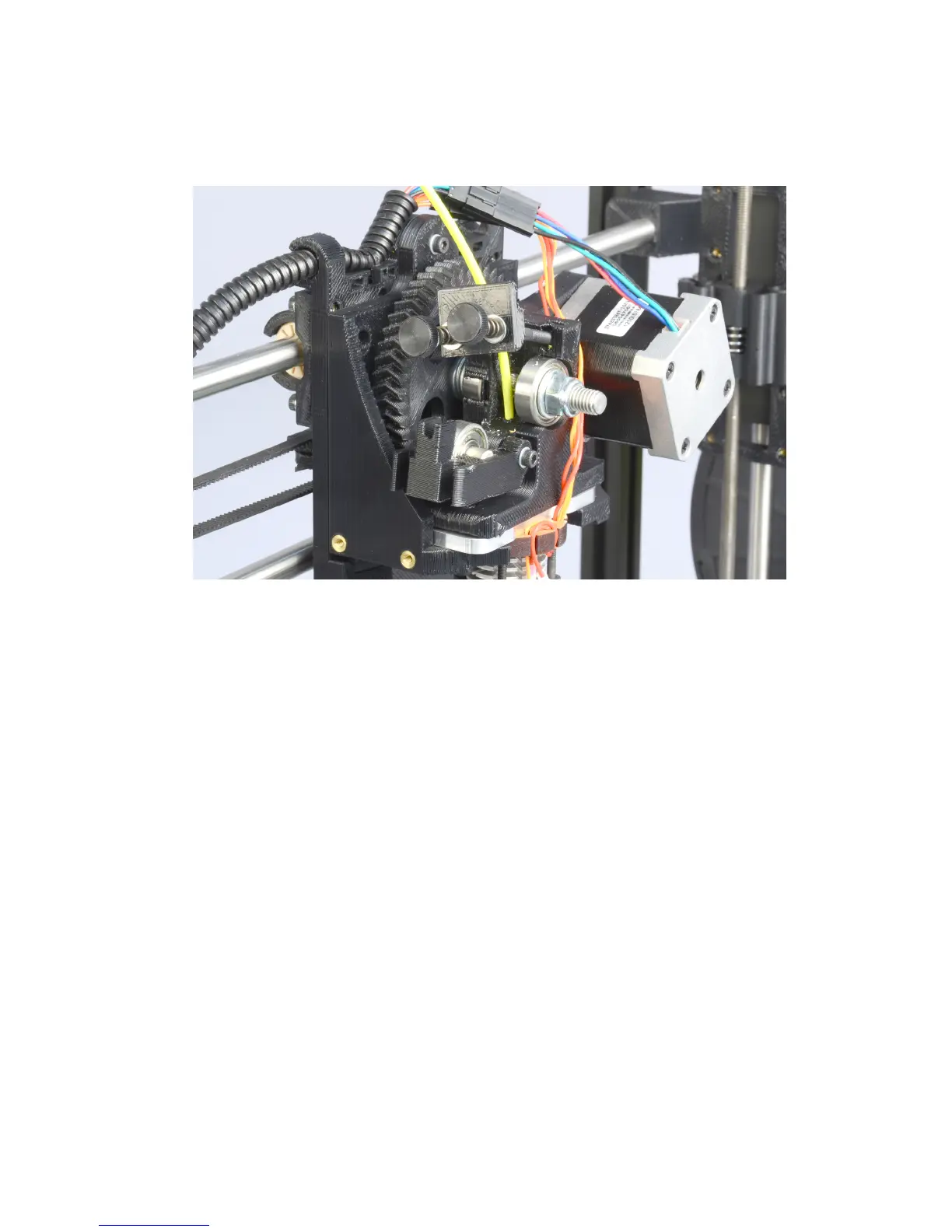

Figure 5.2: Extruder filament slot
can push the filament through the extruder by slowly pushing the filament
down into the hot end.
Once the filament extrudes a small amount out of the nozzle raise the
idler and slide the two idler bolts and plate back into place. Tighten the
two idler bolts if you previously loosened them or if you need additional
clearance. Now use the Extrude button in Printrun to test that the extruder
is working properly. You may need to extrude 30-60mm to fully prime the
hot end.
5.3 Home Printer
Use the home buttons to home the X axis and then the Y axis. Next home
the Z axis. When the Z axis is at home the nozzle tip should be sitting right
against the glass (Fig. 5.3, page 94). The image to the right, in figure 5.3,
is the correct nozzle height. The nozzle should not be pushing down on the
print surface. To lower or raise the Z home height adjust the Z end stop
93

LulzBot TAZ Specifications

General

Nozzle Diameter	0.5 mm (standard), interchangeable
Print Speed	Up to 200 mm/s
Max Hotend Temperature	300°C
Max Heated Bed Temperature	120°C
Connectivity	USB
Supported Materials	PLA, ABS, HIPS, PVA, PETG, Nylon, TPE, TPU, PC, wood-filled
Print Surface	PEI-coated borosilicate glass bed
Bed Leveling	Automatic
Operating System Compatibility	Windows, macOS, Linux
Power Requirements	100 - 240 VAC
Print Technology	Fused Deposition Fabrication (FDM)
