10. Connect the plug with the circuit board of the pulse converter
(or with the ribbon cable of the protection cap).
11.Attachthepulseconverter/protectioncapontotheowmeter
and mount the caps.
12. Connect the operating unit and pulse converter / protection cap
using the data line.

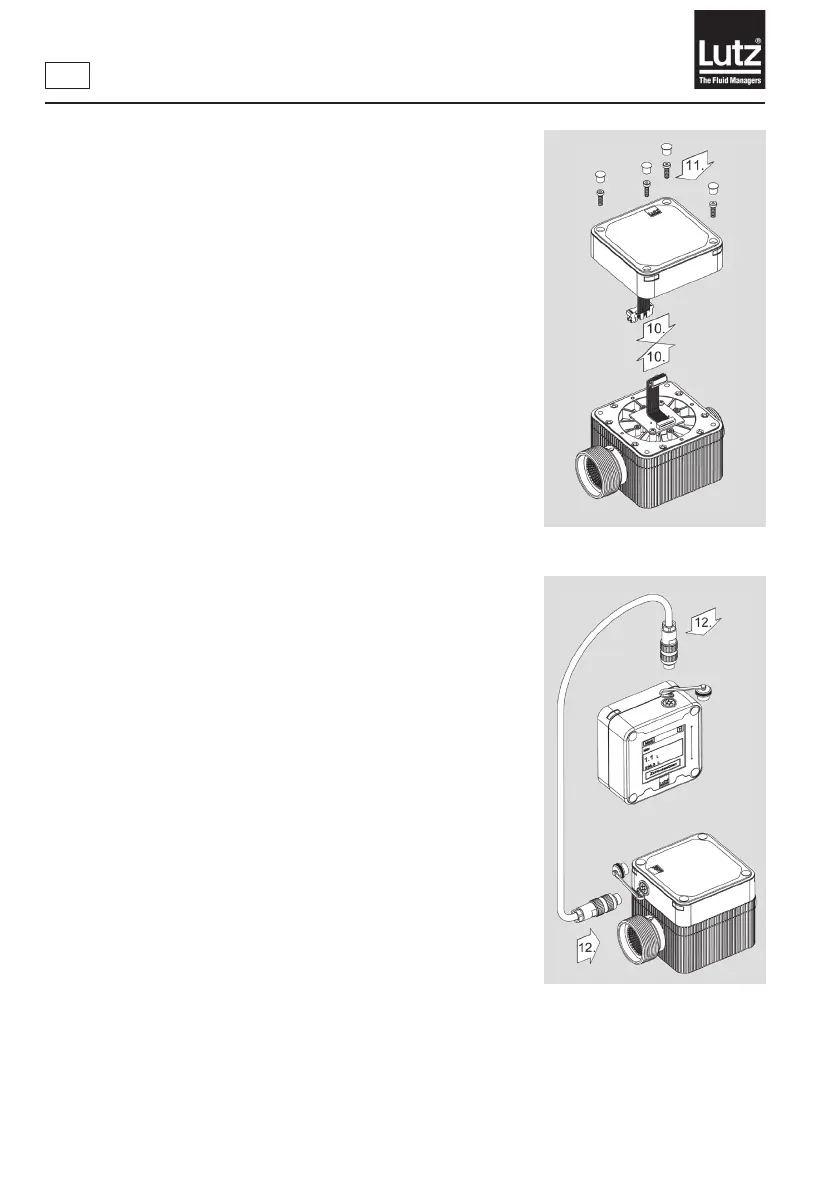

Fig. 7c - Separate installation of the
operating unit
Fig. 7d - Separate installation of the
operating unit
