8.4 Hose installation of the operating unit
NOTICE
► Use the supplied Allen key
SW3 for the screws.
► Only tighten the screws hand-
tight.
Mounting steps:
1. Remove the caps and release
the screws.
2. Carefully lift the operating
unit. Pay attention to cable
length!
3. Release the plug.
4. Attach the operating unit
onto the intermediate plate
and mount the caps.
5. Insert the cable binders in
thexingelementsonthe
intermediate plate.
6. Secure the intermediate
plate to the hose using the
cable binders.
7. Connect the plug with the
circuit board of the pulse
converter (or with the ribbon
cable of the protection cap).
8. Attach the pulse converter /
protectioncapontotheow
meter and mount the caps.
9. Connect the operating unit
and pulse converter / protec-
tion cap using the data line.

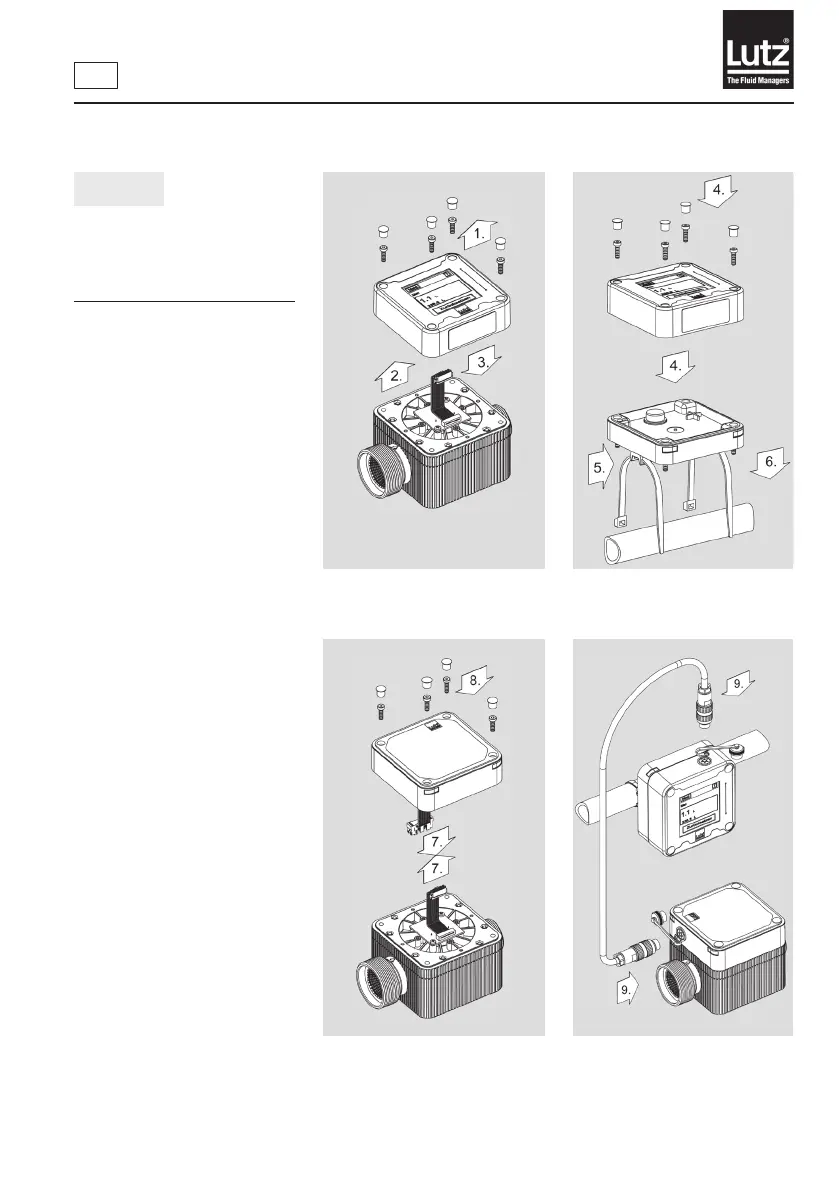

Fig. 8a - Assembly of the operating
unit at the hose
Fig. 8b - Assembly of the operating
unit at the hose
Fig. 8d - Assembly of the operating
unit at the hose
Fig. 8c - Assembly of the operating
unit at the hose
