9.23 Simulation of the outputs
Youcanusethisfunctiontorecreatecertainconditionsattheowmetersystemoutputs.Thisishelpful
for commissioning and maintenance work.
You can use this function to simulate the behavior of relay output 1.
You can use this function to simulate the behavior of relay output 2.
You can use this function to simulate the behavior of the alarm output.
You can use this function to simulate the behavior of interface RS 485.
You can use this function to simulate the behavior of the analog output.
You can use this function to simulate the behavior of the pulse output.

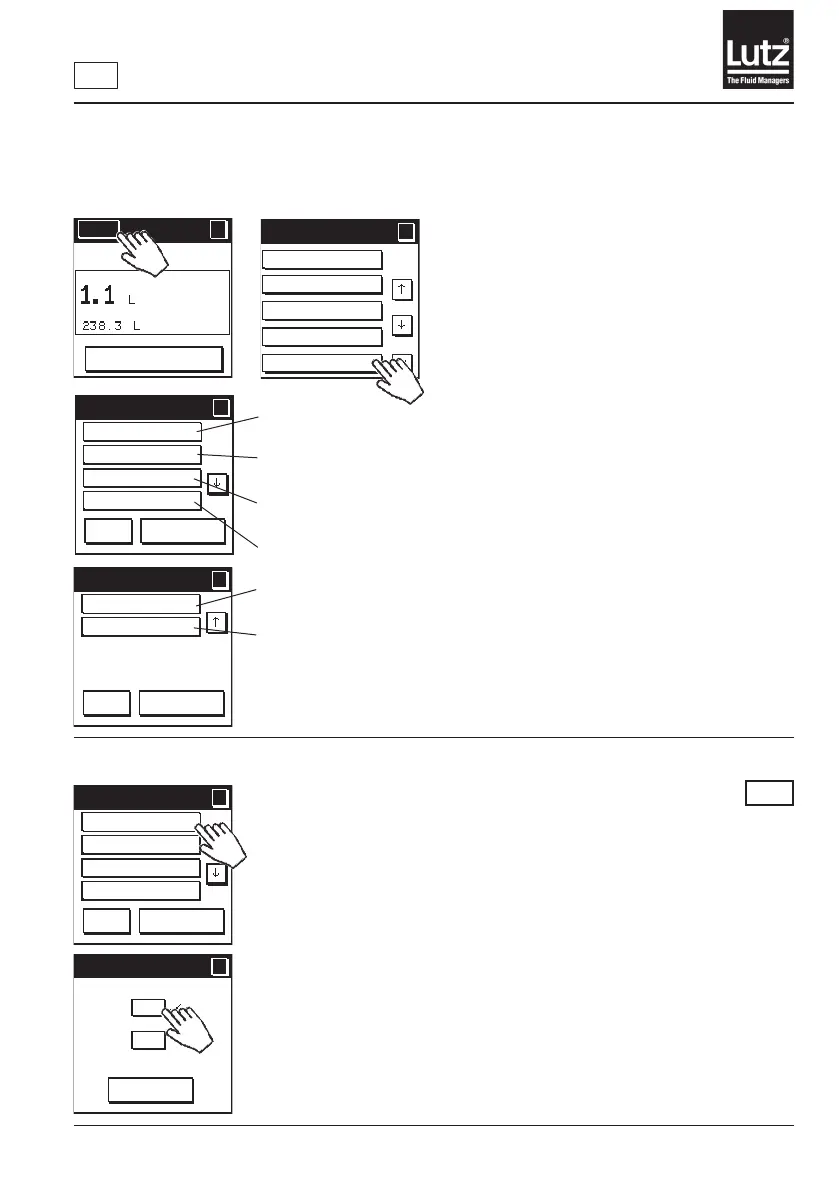

9.23.1 Simulation of relay output 1
RM
Press "On" to switch relay output 1 (pump) on.
Press "O"toswitchrelayoutput1(pump)o.
Press "Cancel"toendthesimulation.Therelaymoduleisswitchedo.
Menu
?
RESET
MAN
Menu 4/5
?
?
LCD contrast
Safety prompt
Flow monitoring
Communication
Simulation
Simulation 1/2
?
?
OK
Cancel
Relay output 1
Relay output 2
Alarm output
RS 485
Simulation 2/2
?
?
OK
Cancel
Analog output
Pulse output
Simulation 1/2
?
?
OK
Cancel
Relay output 1
Relay output 2
Alarm output
RS 485
Sim. rel. 1
?
?
Cancel
On
Off
(Pump)
