Lutz BE10 - Pulse Output

56
0698-651 Operating unit - 04/2021
en
9.22.5 Pulse output
KM
RM
NG
and
or

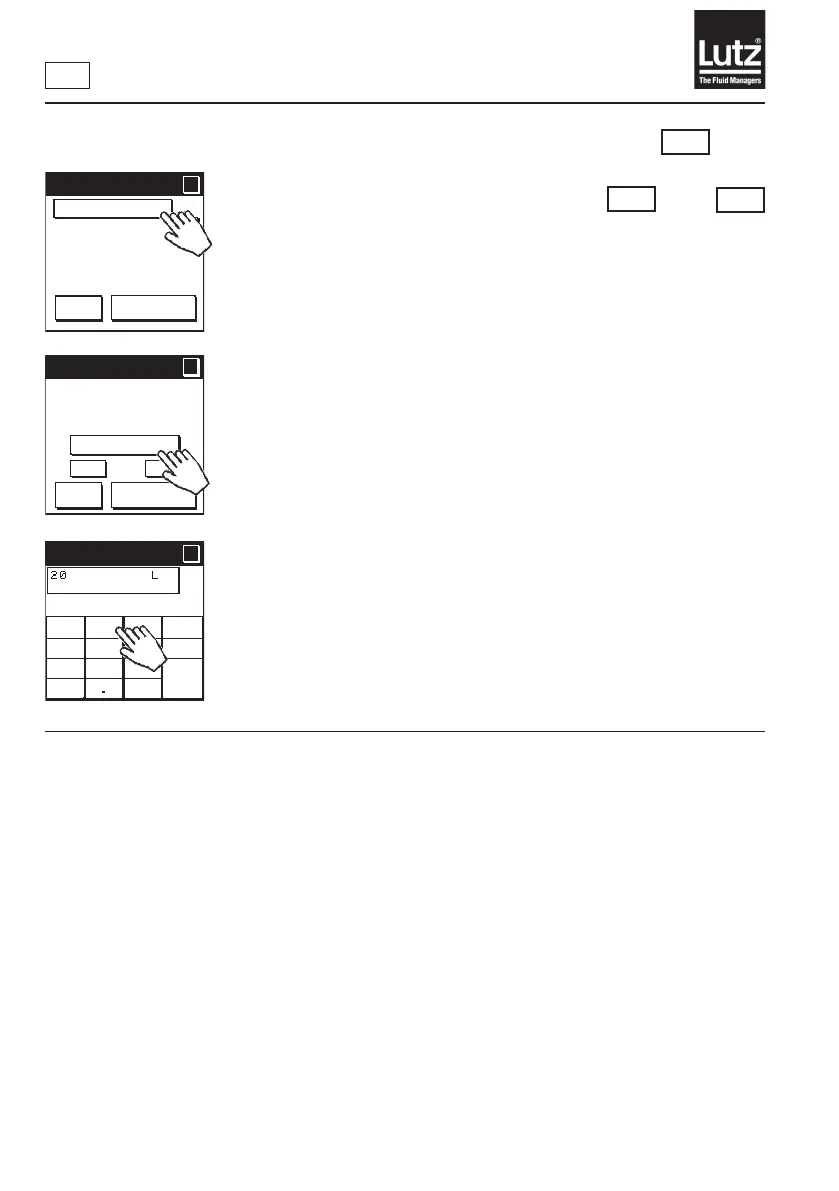

Press "Change value"todenethepulsevalueforthepulseoutput.
Thepulsevalueisthevolumethatowsthroughtheowmeterbeforea
pulse is triggered.
Press "On" to switch the pulse output on.
Press "O"toswitchthepulseoutputo.Thisisthefactorysetting.
Press "
←← C" to delete the last entry on the display.
Use the buttons "0-9" and "." to enter the pulse value. The value may not
exceed half the duration of a cycle. It is automatically cut to half the duration
of a cycle if the pulse frequency is too high.
Press "Cncl" to cancel the entry and return to the previous screen.
Press "OK"tosavethevalueandnishmakingentries.
