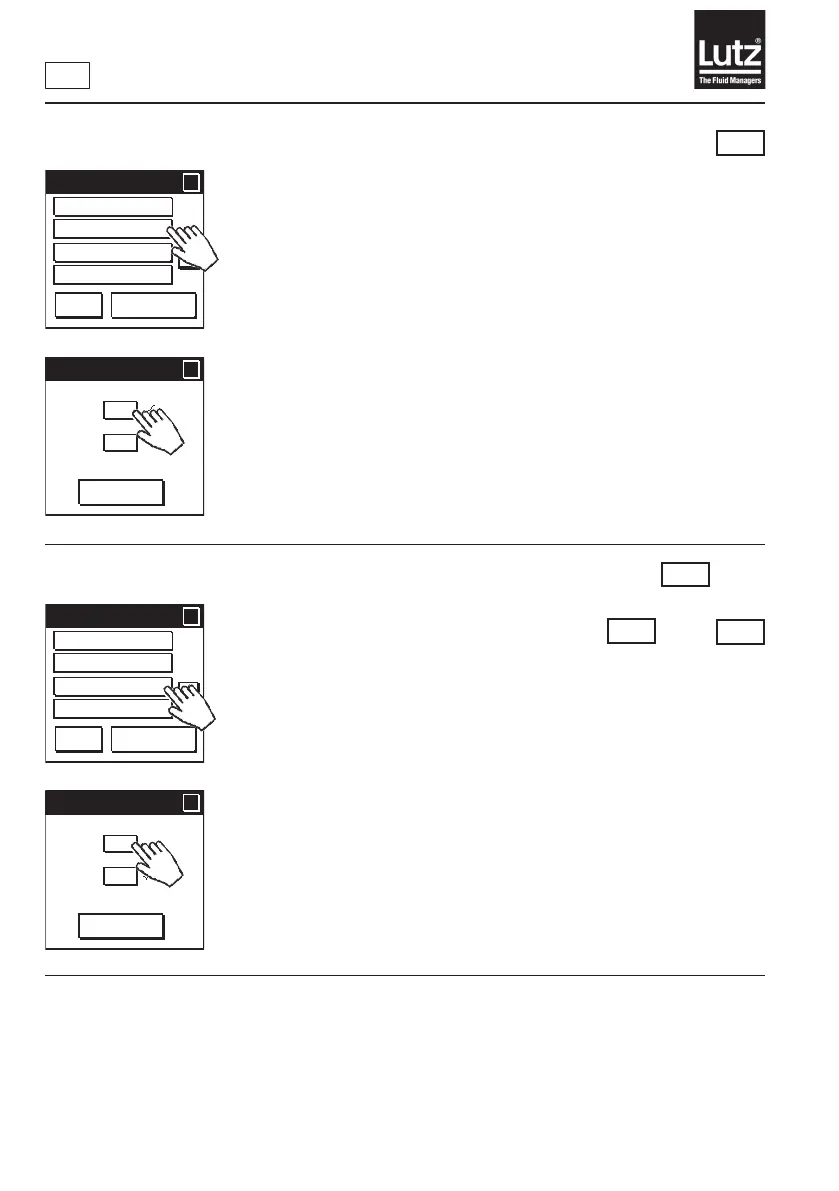

9.23.2 Simulation of relay output 2
RM
Press "On" to switch relay output 2 (sol. valve) on.
Press "O"toswitchrelayoutput2(sol.valve)o.
Press "Cancel"toendthesimulation.Therelaymoduleisswitchedo.
9.23.3 Simulation of alarm output
KM
RM
NG
and
or
Press "On" to switch the contact for the alarm output on.
Press "O" to switch the alarm output back to the normal operating state.
Press "Cancel" to end the simulation.
Simulation 1/2
?
?
OK
Cancel
Relay output 1
Relay output 2
Alarm output
RS 485
Sim. rel. 2
?
?
Cancel
On
Off
(Sol. valve)
Simulation 1/2
?
?
OK
Cancel
Relay output 1
Relay output 2
Alarm output
RS 485
Simulation alarm
?
?
On
Cancel
Off
