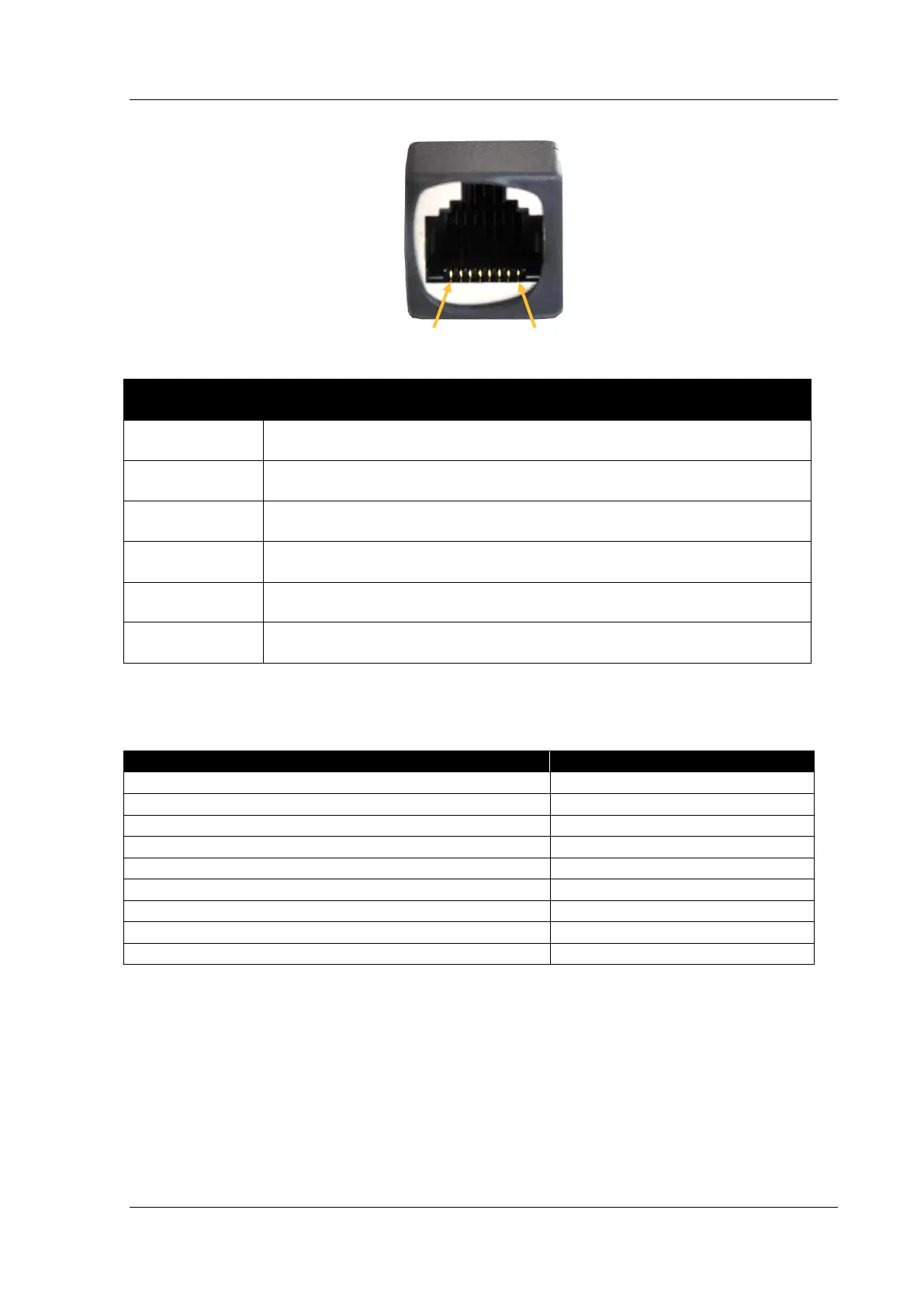

You will find a pin description on the NanoPower RJ45 in the picture below.
1 2 3 4 5 6 7 8
Pin numbers
Pin number
Description
1,2
Ground
3
(output) Transmit from NANO
4
RS232 (e.g. Computer, V7)
4
(input) Receive toNANO
4
RS232 (e.g. Computer, V7)
5
(output) Transmit from NANO
4
LVTTL (e.g. Oudie, HP302)
6
(input) Receive toNANO
4
LVTTL (e.g. Oudie, HP302)
7,8
5V OUTPUT (maximum 1A)
4.8.1 Available Cables for NanoPower
Device
Cable code
OUDIE
CC-NP-OUDIE1
Generic RS232 with female DB9
CC-NP-232
IPAQ 310/314
CC-NP-IPAQ310
IPAQ 38/39xx/47xx
CC-NP-38
MiniMap
CC-NP-LX
Butterfly Connect
CC-NP-BFC
FLARM
CC-NP-IGC
NanoPower for PowerFLARM
NanoPower-PF
NanoPower for FLARM
NanoPower-FL
4.9 Level Converter (Green Shrink Wrapped)
This is only used with NANO
4
serial numbers less than 06099. It is not needed with newer
devices. Please refer to Section 6.6 for more details.
