LXNAV NANO4 - Serial Port FLARM Connection

Rev #2 Version 3.00 August 2020
Page 66 of 80

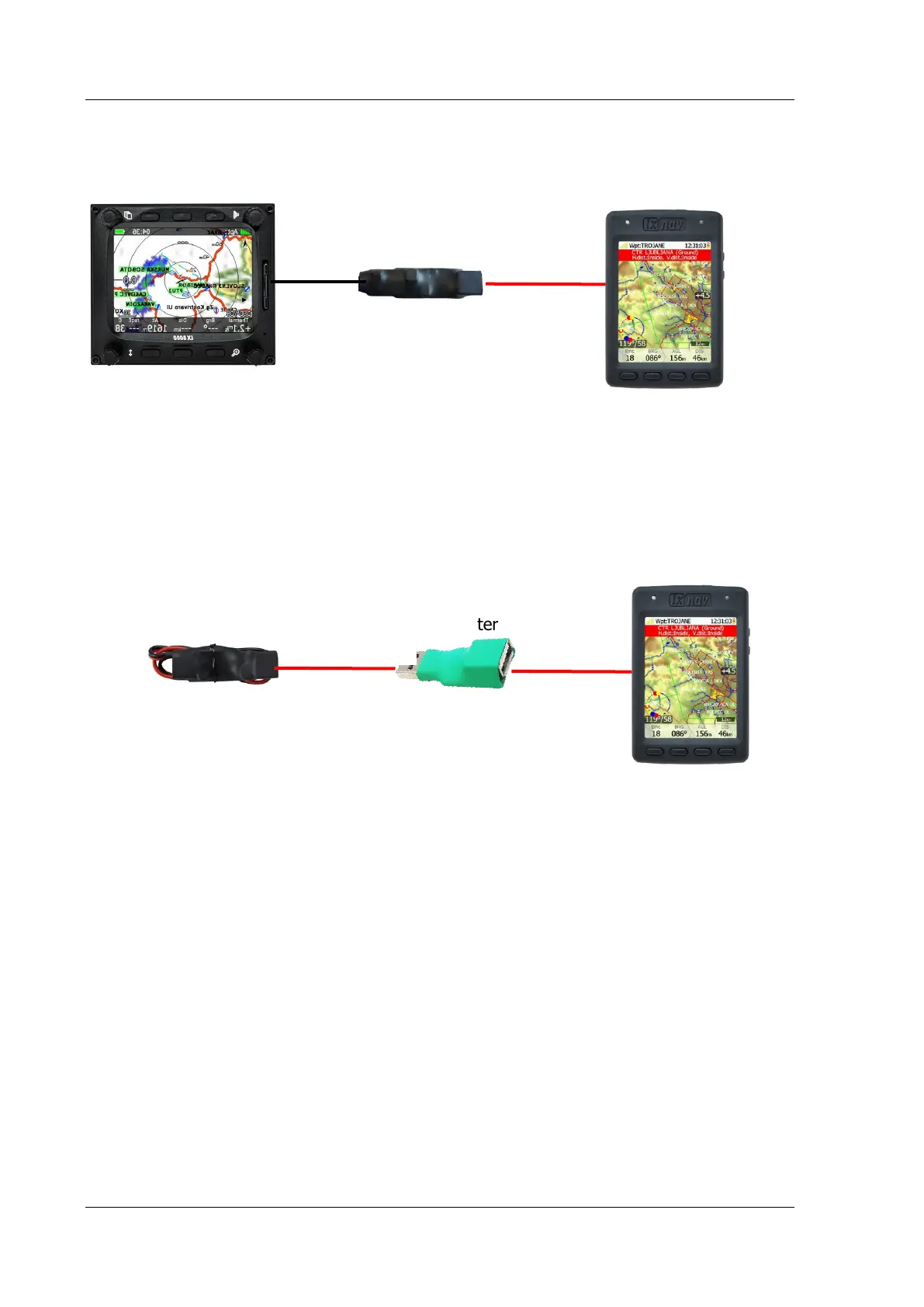

7.5 Connecting a LXxxxx Flarm port to the NANO
4
using the NanoPower-
FL
7.6 Connecting NANO
4
with Serial Number less than 06099
Please note that in all configurations described above a level converter is required for
connecting any NANO
4
device with a serial number less than 06099 with NanoPower.
Level
converter
Nano Power-FL
Gets 12V from LX
USB cable
NANO
4
LX8080/8000/9050/9000/9070
USB cable
USB cable
NANO
4
