Rev #2 Version 3.00 August 2020
Page 64 of 80

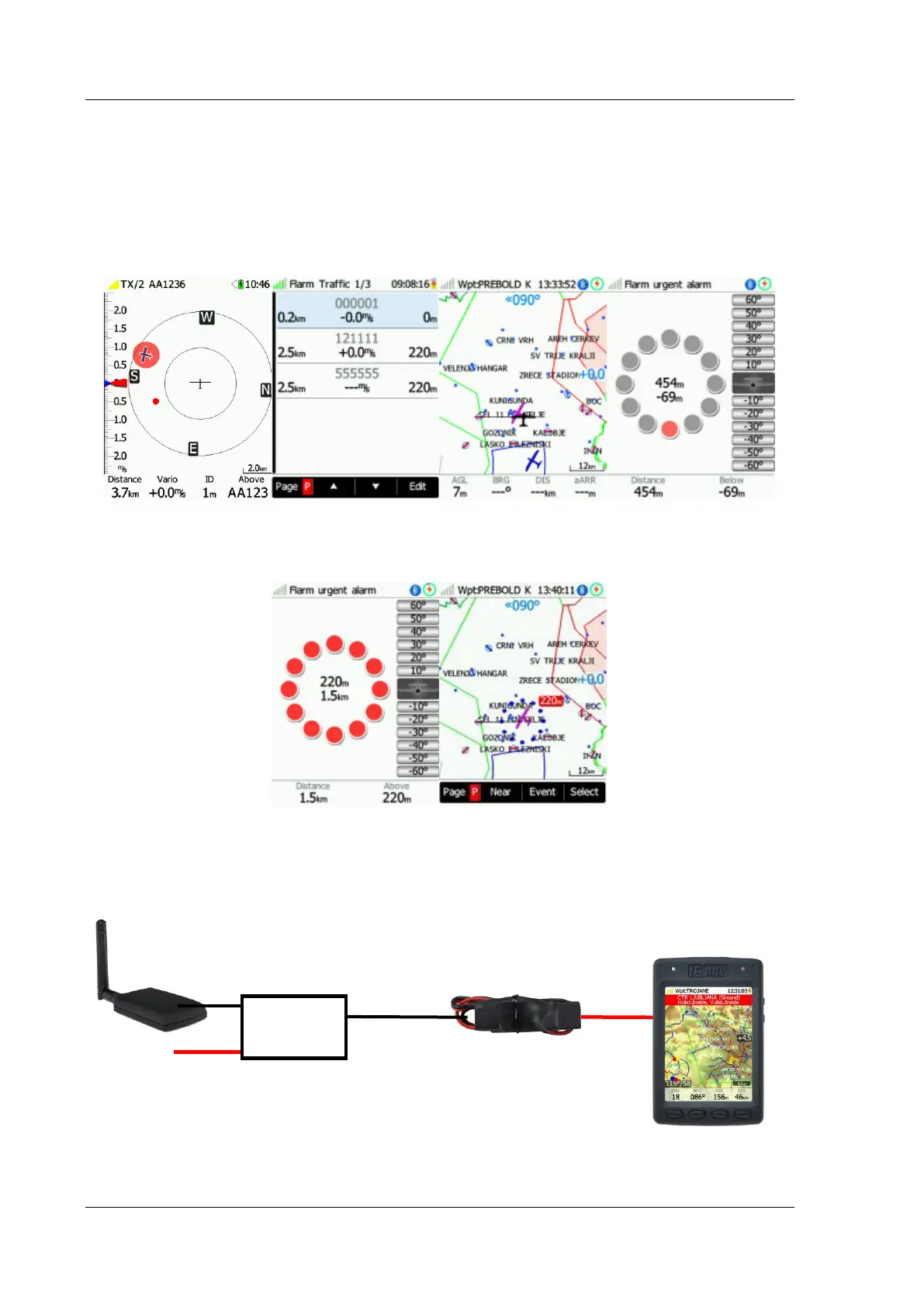

7 FLARM on NANO
4
The NANO
4
can display FLARM and PCAS traffic on the map or on a radar screen. The radar
screen is visible only when a FLARM object is detected by the NANO
4
. In case of a collision
warning another screen will be displayed, which will inform the pilot which direction the
threat is coming from.
PCAS alerts on the map are represented as a dotted circle with a relative altitude; the PCAS
warning is represented by lights on the clock in red or orange.
A FLARM warning can be dismissed with a short press of any button. A dismiss time can be
configured in setup.
7.1 Connecting a FlarmMouse to the NANO
4
