2. The unit can be restarted (power cycled) by using the Lynx MAT as follows:
a. From the Lynx MAT panel select ServiceZRestart Unit. See Figure 3-4.
b. From the Restart Unit screen select Maintenance (No WiFi)
c. Click on the Restart Unit button at the bottom of the main screen.
d. The unit is ready for configuration setup when the maintenance screen is shown on the unit
display. See Figure 3-6.

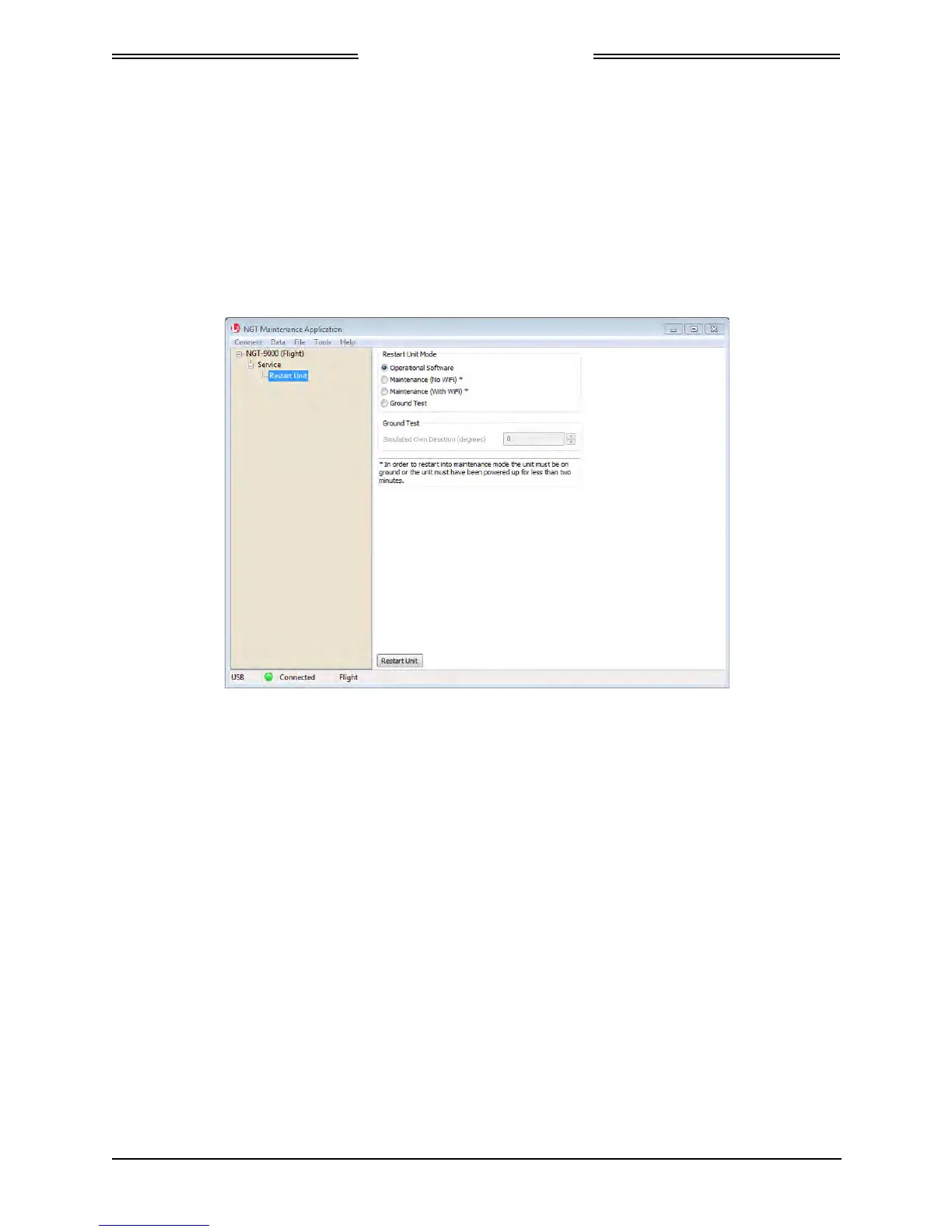

Figure 3-4: Lynx MAT – Restart Unit
3. Do the following to connect and establish communication between the MPC and the unit via the
WiFi connection. (The WiFi connection is optional.)
NOTE
The Configure WiFi Accessory procedure described in 3.5 must be
completed before the unit can establish a WiFi connection.
a. After communication has been established using the instructions in step 1, WiFi communication
can be established with the unit for installation using the WiFi option.
b. From the Lynx MAT panel select ServiceZ Restart Unit.
c. Select Maintenance (With WiFi)
d. Press the Restart Unit button.
e. From the Lynx MAT menu select ConnectZNGT9000 ZWiFi.
f. Connection should be established. If not, than restart the process begun in step 2.a.
g. Remove USB cable.
0040-17001-01 Installation Checkout Page 3-5
Revision A January 15, 2015
