215626 12 Revision A

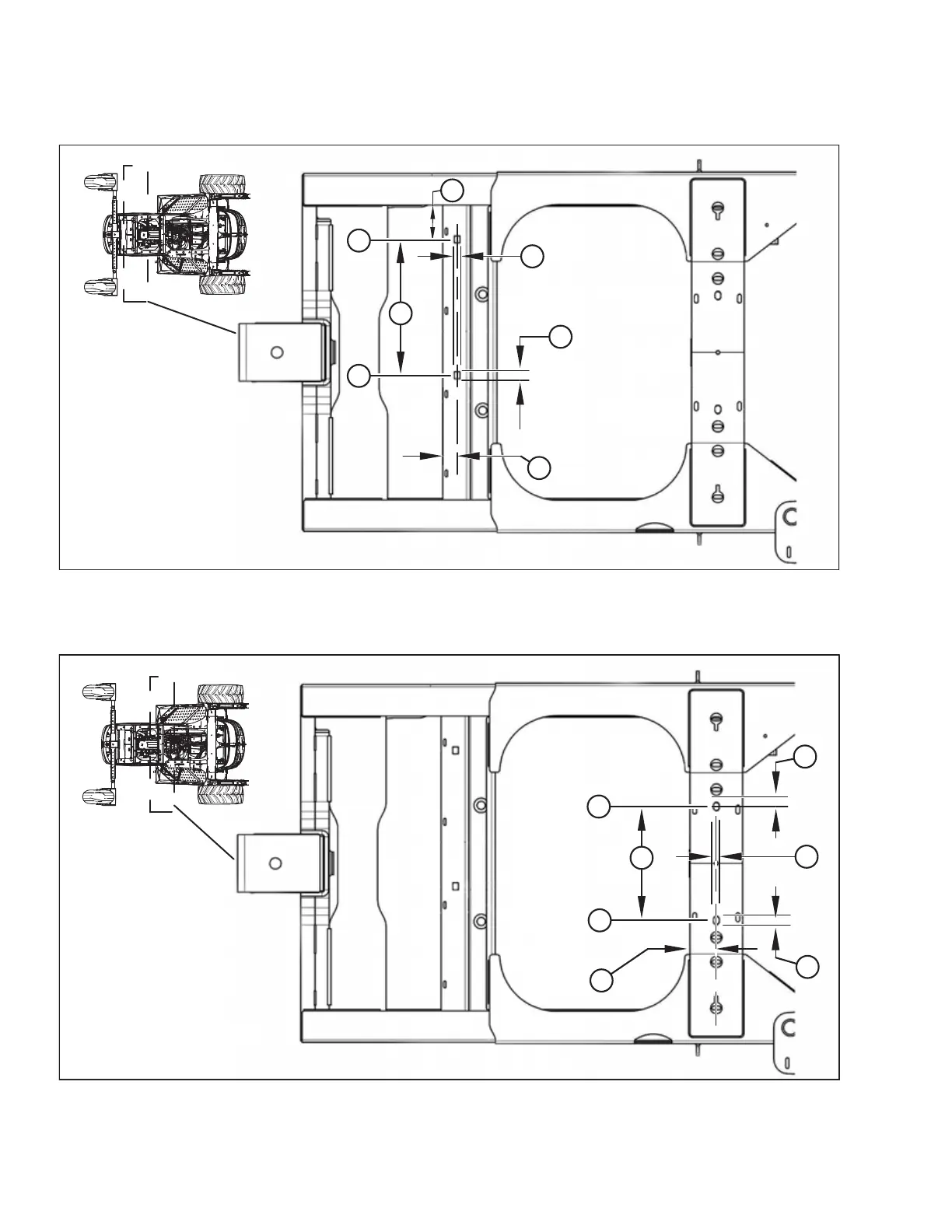

Figure 2.1: Rear-Facing Frame

%
&
$
$
'
(
)
A - Rear Frame Hole Locations B - 480 mm (18 7/8 in.) C - 121.5 mm (4 25/32 in.)
D - 20 mm (25/32 in.) E - 25 mm (1 in.) F - 50 mm (1 31/32 in.)
Figure 2.2: Forward-Facing Frame
%
$
$
(
&
'
)

A - Front Frame Hole Locations B - 402 mm (15 15/16 in.) C - 92.5 mm (3 5/8 in.)
D - 40 mm (1-9/16 in.) E - 20 mm (25/32 in.) F - 28.5 mm (1 1/8 in.)
SETUP INSTRUCTIONS
