4.2 Lubrication
The DWA has five grease points which need regular lubrication.
Apply high temperature extreme pressure (EP2) performance with 1% max molybdenum disulphide (NLGI Grade 2) lithium
base grease to all grease points (A) shown in the following illustrations after every 50 hours of operation.

$

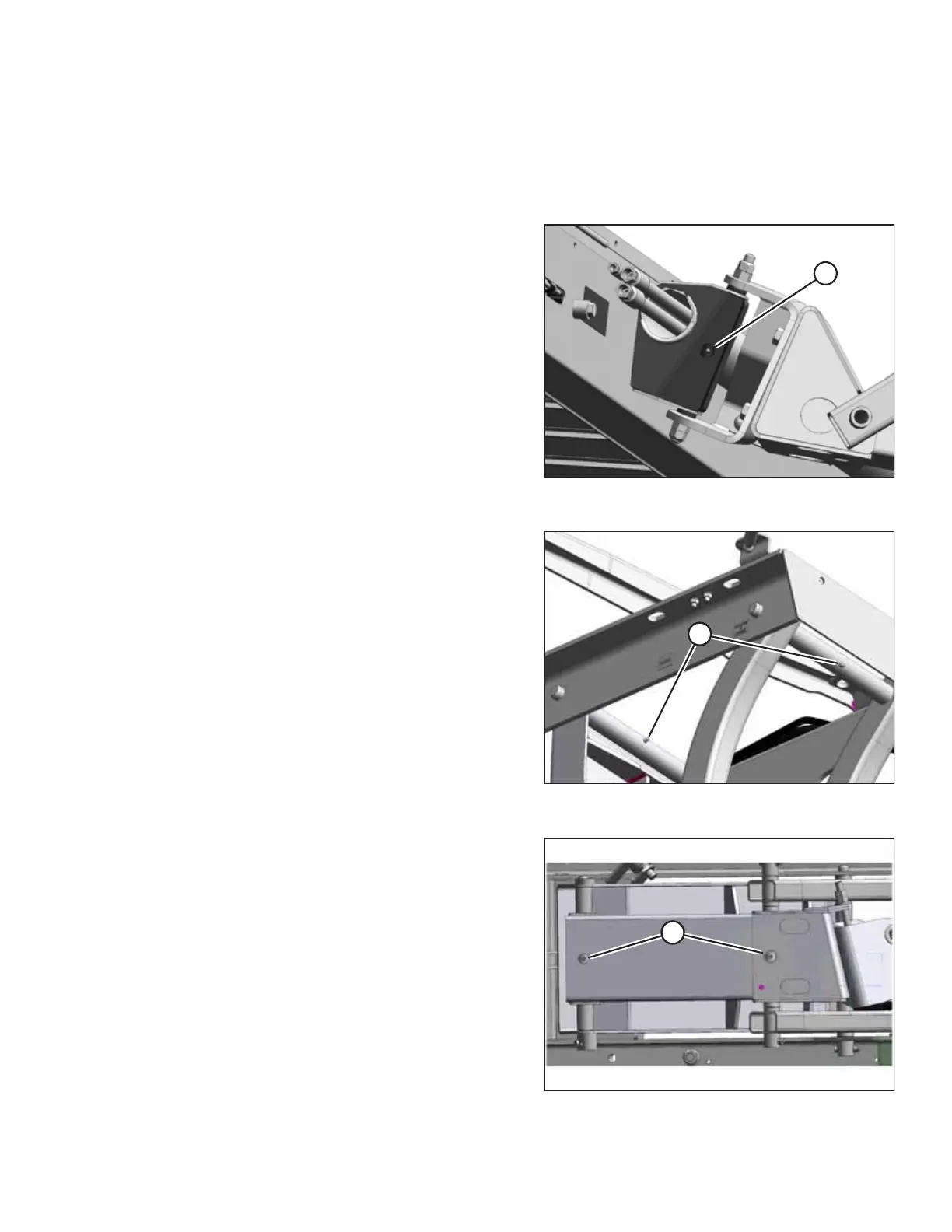

Figure 4.20: Deck Pivot

$$
Figure 4.21: Linkage Pivot

$$
Figure 4.22: Linkage Pivot: Bottom View of DWA
