2.4.3 Installing Linkage – M205
Attach the Double Windrow Attachment (DWA) support and linkage to the frame. The procedure will differ slightly
depending on the type of header you intend to use with your M205 windrower.

$
%

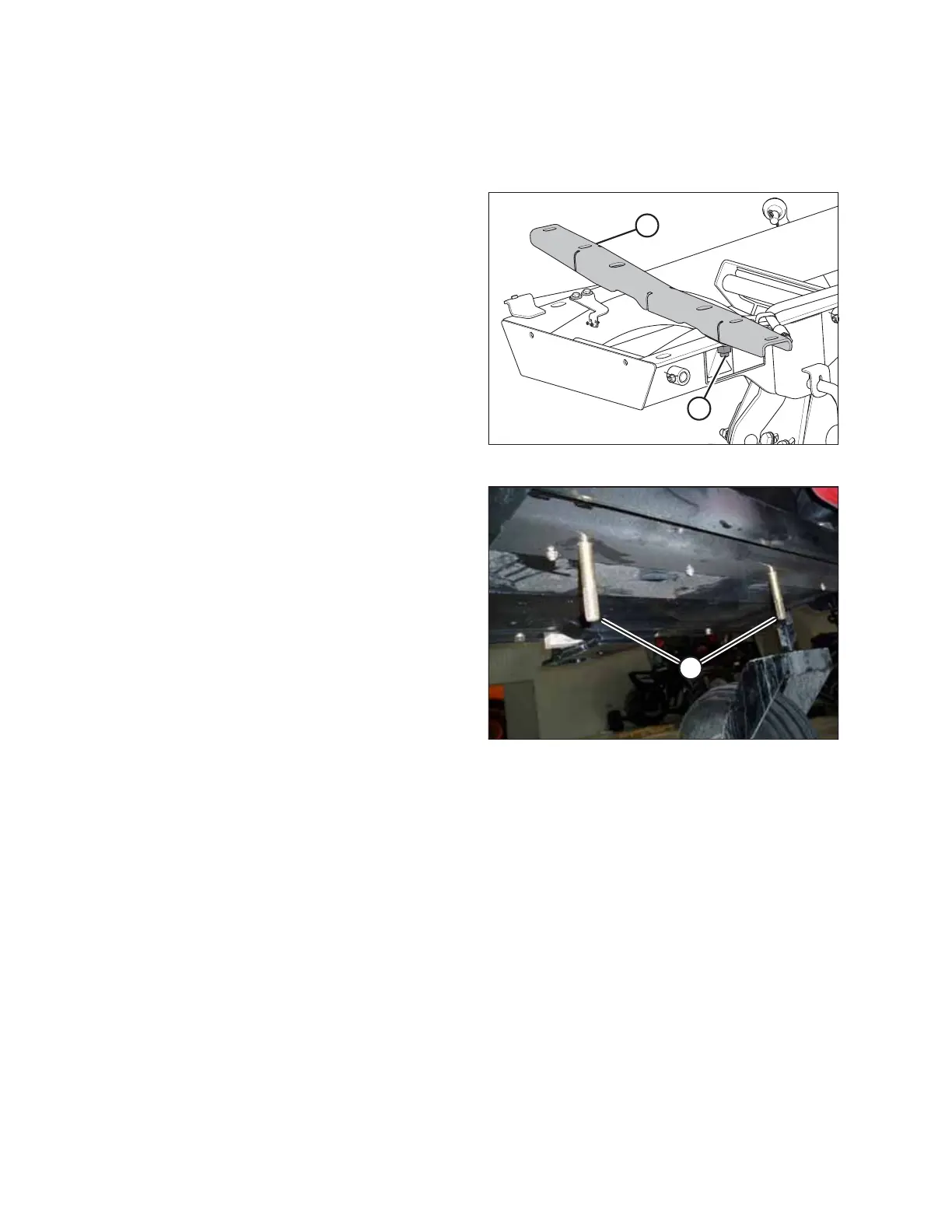

Figure 2.36: Linkage Support
1. Remove support (A) from the DWA linkage by removing
nut (B).

$
Figure 2.37: Frame Member under Windrower
2. Install two 3/4 in. x 4 1/2 in. carriage head bolts (A) in the
windrower frame member located between the engine and
the caster wheels.
NOTE:
Move the hoses located above the frame member to install
the bolts.
