2.2 Installing Draper Drive Manifold
The Double Windrow Attachment’s (DWA) draper drive manifold must be tied into the windrower’s hydraulic system. This
procedure may differ depending on your particular windrower model.

$

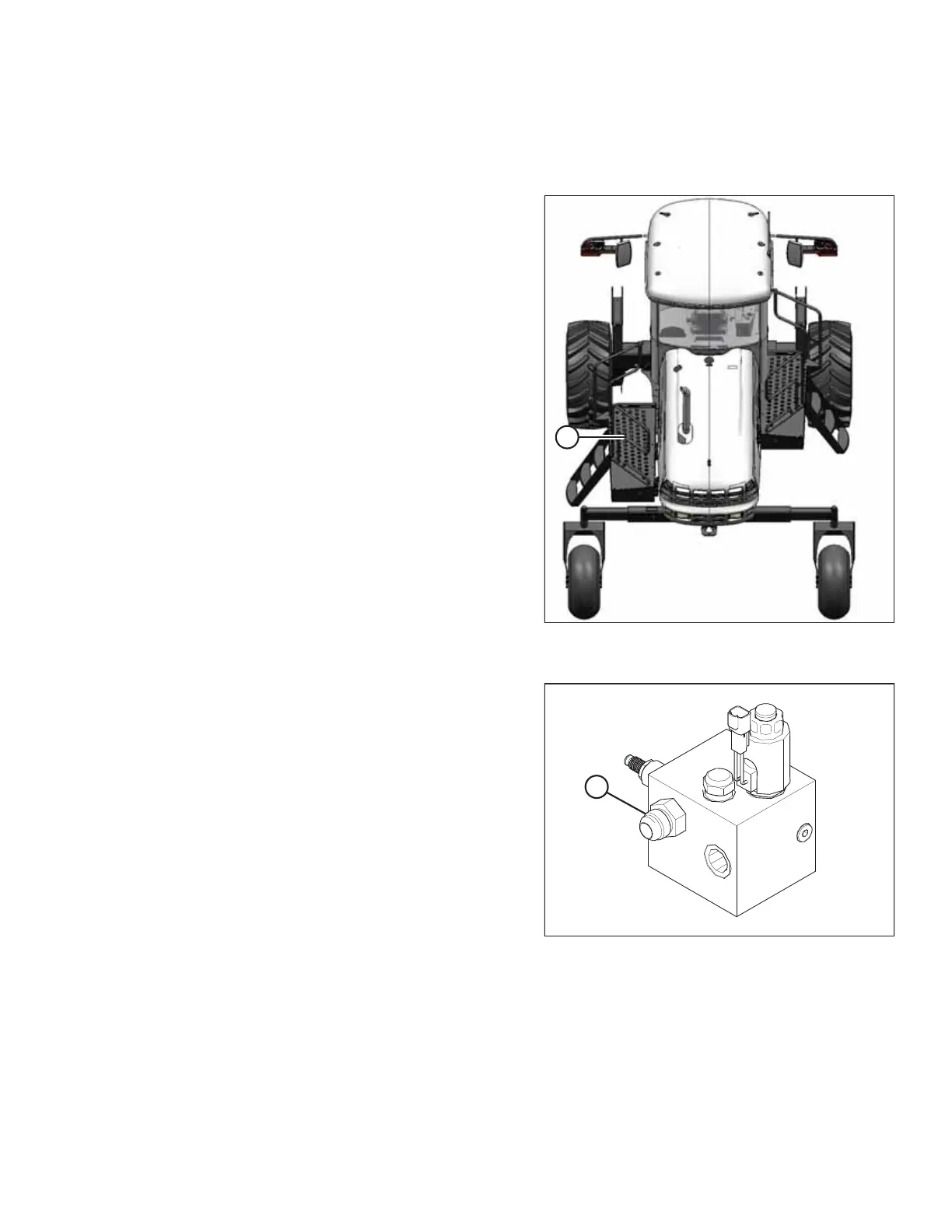

Figure 2.3: Windrower Top View with Left Platform in
Open Position
1. Move left platform (A) to the open position to access the
hydraulic valve blocks. Ensure that the platform latch is
engaged in the open position; refer to the windrower
operator’s manual for instructions.
5
3

$
Figure 2.4: DWA Drive Manifold
2. To prepare the DWA draper drive manifold, install #12 ORB
x #12 JIC fitting (A) in the R2 port on the DWA drive
manifold.
