MacDon DWA - 2.5 Installing Deck

215626 30 Revision A
2.5 Installing Deck
The conveyor deck must be removed from its shipping supports before it can be installed. It will be need to be handled
with a lifting aid such as a forklift.

$
%
$

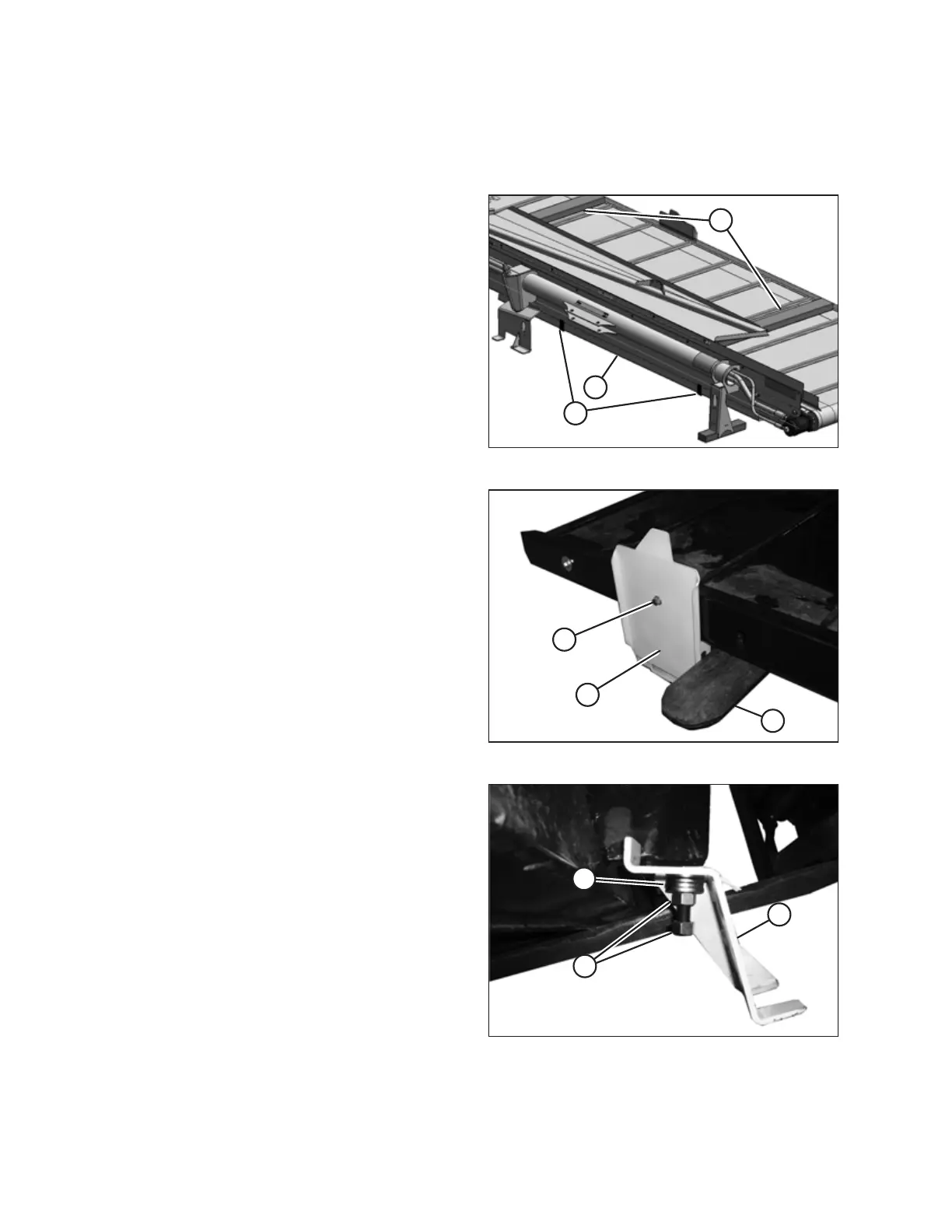

Figure 2.46: DWA Deck
1. Remove shipping boards (A) by removing transport
banding (B). Discard the shipping materials.

$
%
&
Figure 2.47: Deck Shipping Stand
2. Support the deck with a forklift. Forks (C) should be inboard
of shipping stand (A).
3. Remove two shipping stands (A) from the front of the deck
by removing nut (B).
4. Reinstall nut (B) with a washer.
NOTE:
Washers are supplied in the hydraulic kit.

$
%
&
Figure 2.48: Deck Shipping Stand
5. Remove shipping stand (A) from the rear of the deck by
removing two nuts (B) and washers (C).
