3.6 Adjusting Deck Height
The deck should never touch the ground as this causes excessive strain on the Double Windrow Attachment (DWA).
If the deck is too low to the ground, raise it as follows:
$

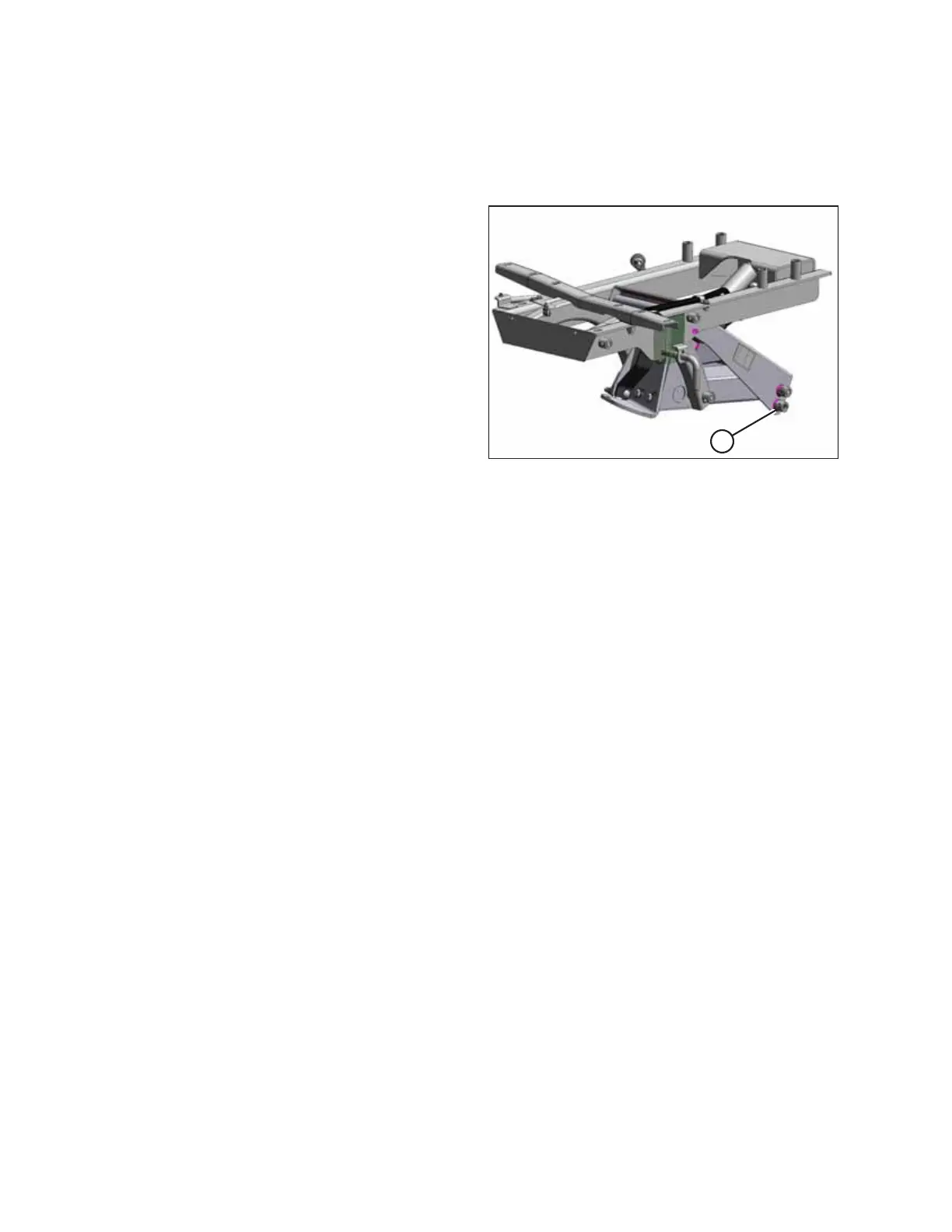

Figure 3.12: DWA Linkage
1. Lower the linkage by fully extending its cylinder.
2. Move the bottom pivot pin to lower position (A). This will
raise the front of the deck approximately 100 mm (4 in.).
