2.6.2 Installing Case Drain Hose – M150/M200 and A Series Headers with Reverser
The case drain hose must be connected to the header drive block on M150/M200 windrowers using A Series headers with
reversers.
$
%
&
'
(

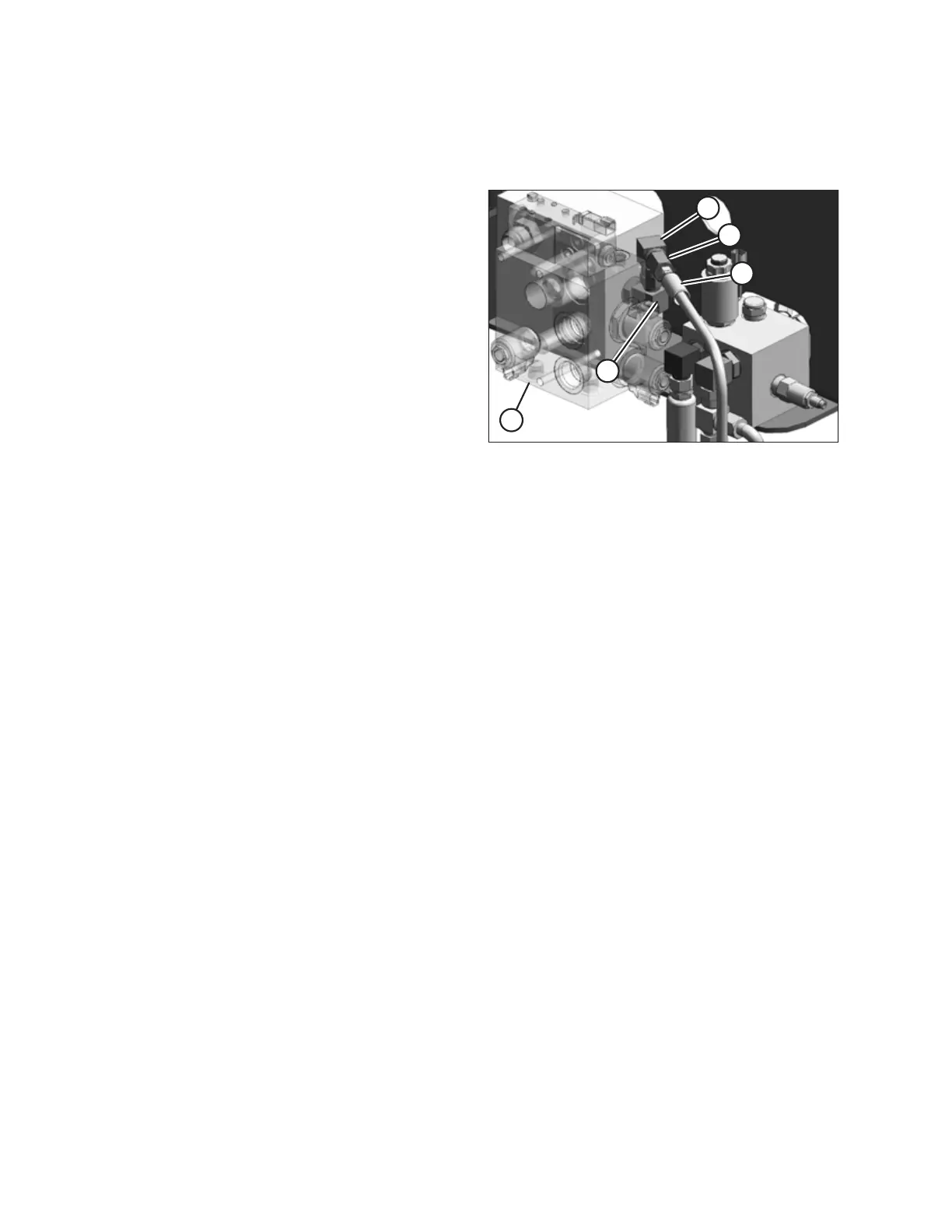

Figure 2.60: Header Drive Block
A - Case Drain Hose B - #12 ORB x #10 JIC Elbow
C - #10 JIC x #10 JIC Elbow D - #10 JIC x #6 JIC Reducer
E - Reverser (Hidden)
1. Connect #12 ORB x #10 JIC elbow (B) to port T on the
header drive block.
2. Connect #10 JIC x #10 JIC elbow (C) to elbow (B).
3. Connect #10 JIC x #6 JIC reducer (D) to elbow (C).
4. Attach case drain hose (A) to reducer (D).
NOTE:
Make sure that hose (A) is not rubbing against any fittings.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 98 for
additional information on the hydraulic connections.
5. Proceed to 2.7 Installing Auxiliary Valve Block, page 40.
