3.2 Engaging Deck Safety Pin
The deck safety pin on the Double Windrow Attachment (DWA) keeps the deck locked when it is raised.

$
%

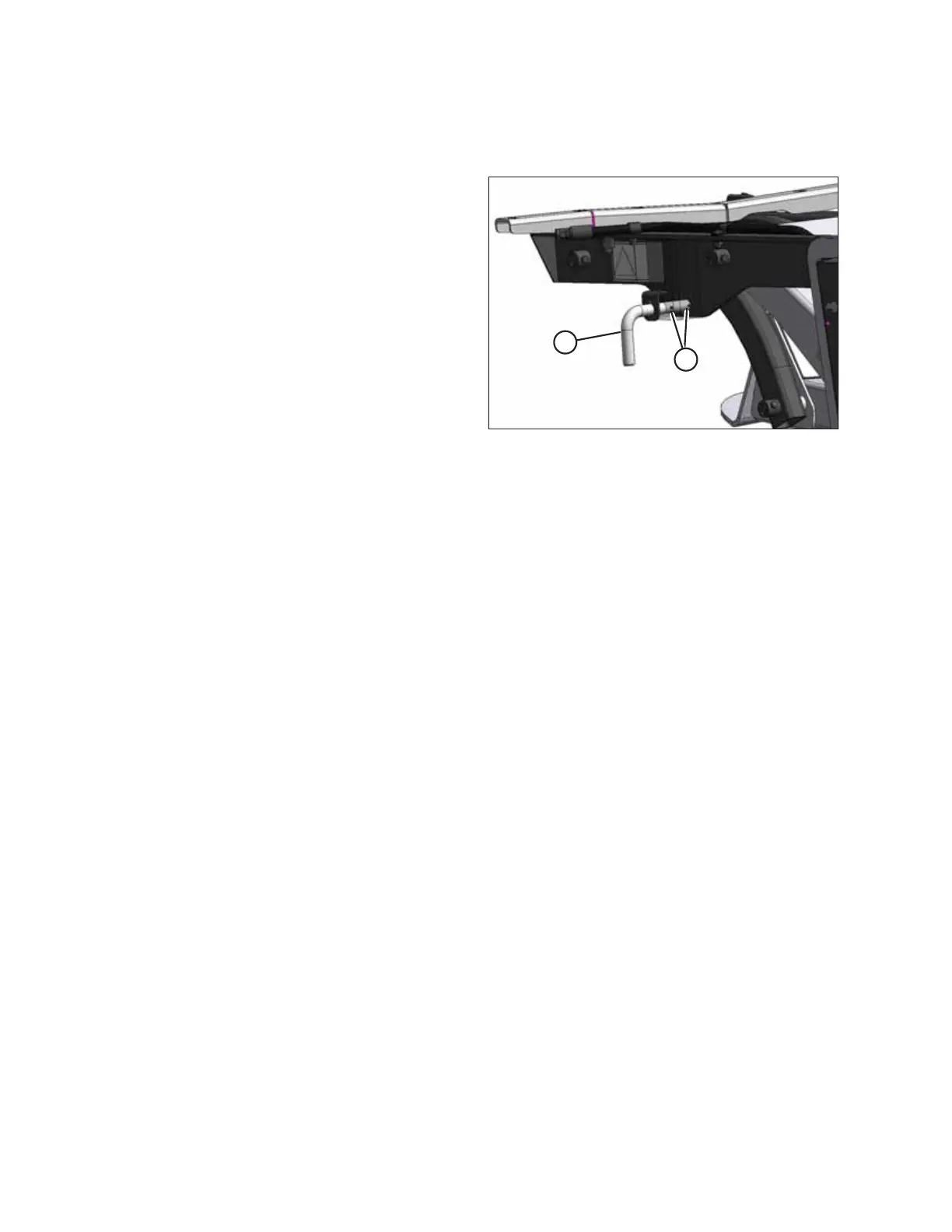

Figure 3.1: DWA Deck Safety Pin
1. Raise the DWA deck.
2. Rotate pin (A) and push inward until both roll pins (B) are
inside the channel.
