2.7 Installing Auxiliary Valve Block
The auxiliary valve block supplies the additional hydraulic connections needed for the Double Windrow Attachment (DWA).
Your windrower may already have an auxiliary valve block if it is paired with a D60 header with reel foe-aft functionality.

$
%

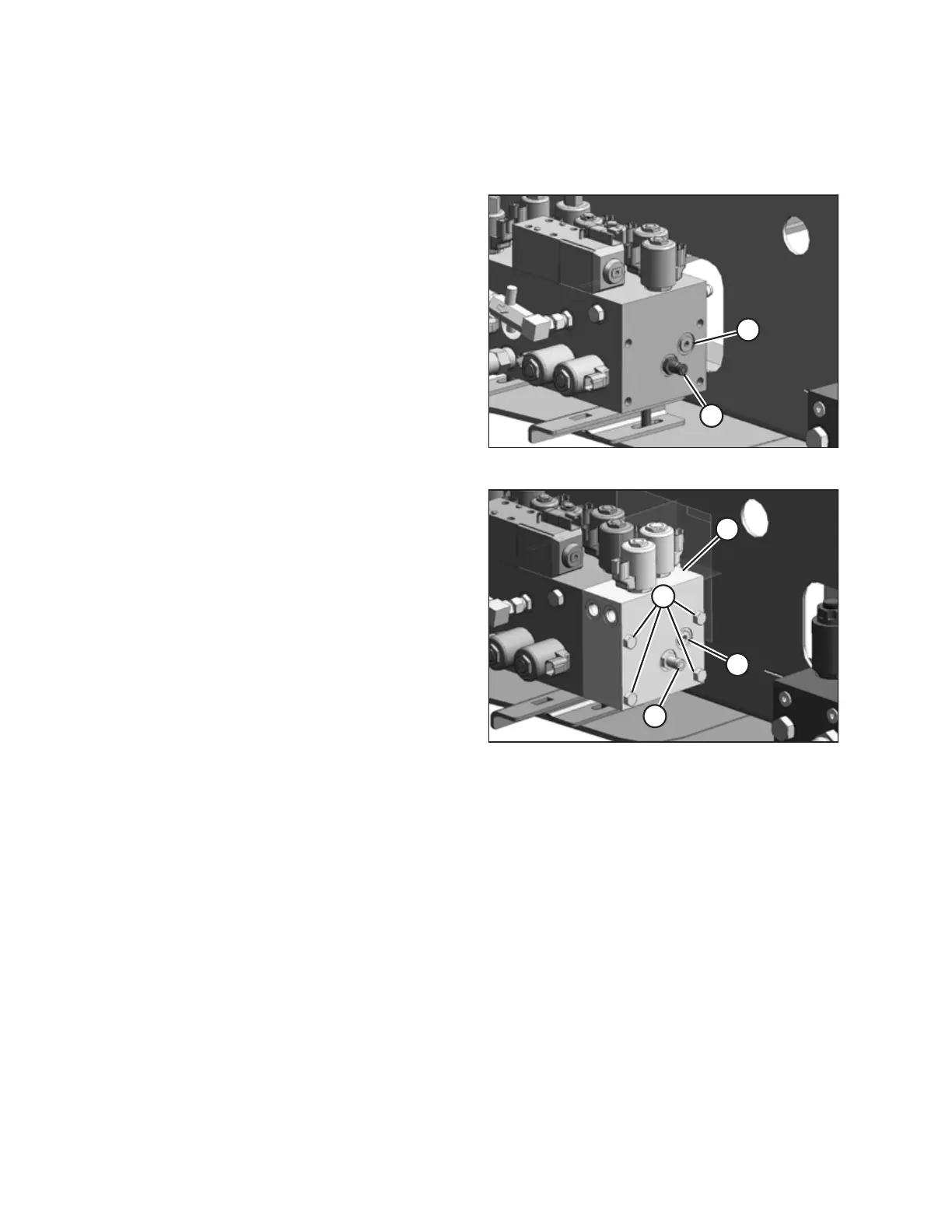

Figure 2.65: Lift Manifold Block
1. Remove and retain fitting (A) and plug (B) from the lift
manifold block.

$
%
&
'
Figure 2.66: Auxiliary Valve Block
2. Attach auxiliary valve block (C) to the lift manifold block.
NOTE:
If you are installing the auxiliary valve block onto a
windrower paired with a D60 header with reel fore-aft
functionality, the windrower will already have an auxiliary
valve block installed.
3. Apply grease to the O-rings (supplied with the valve block)
and install them in the countersunk port holes from which
the plugs were removed.
4. Attach the smooth side of valve (C) to the lift valve with
four 3/8 in. bolts (D). Use the longer bolts if there are two
auxiliary valve blocks.
5. Torque the bolts to 34 Nm (25 lbf·ft).
6. Replace fitting (A) and plug (B) (removed in Step 1, page
40) into the auxiliary valve block.
NOTE:
If plug (B) is damaged when it is removed, an extra plug is
provided in the kit.
