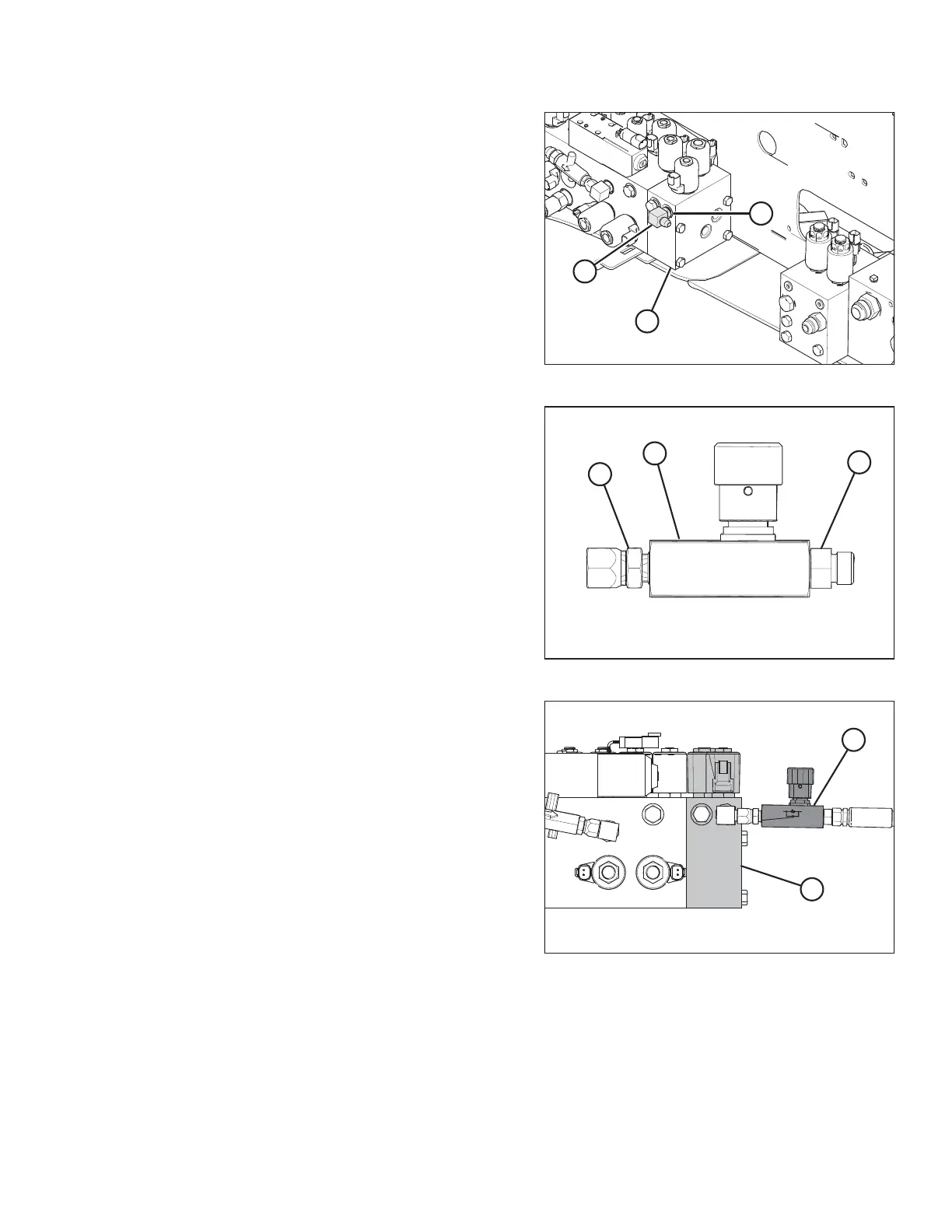

Figure 2.67: Auxiliary Valve Block
7. Install 90° elbow fitting (A) into port K on auxiliary valve
block (B).

$
%
&
Figure 2.68: Flow Valve
8. Install 9/16–18 ORB fitting (A) into flow valve (B).
9. Install 3/8 in. tube 37° flare fitting (C) onto flow valve (B).

$
%
Figure 2.69: Flow Valve and Auxiliary Valve Block
IMPORTANT:
Orient the flow valve as shown. The long end of flow valve
(A) should face auxiliary valve block (B).
SETUP INSTRUCTIONS
