215626 42 Revision A
.
-
$
%
(
'
&
)

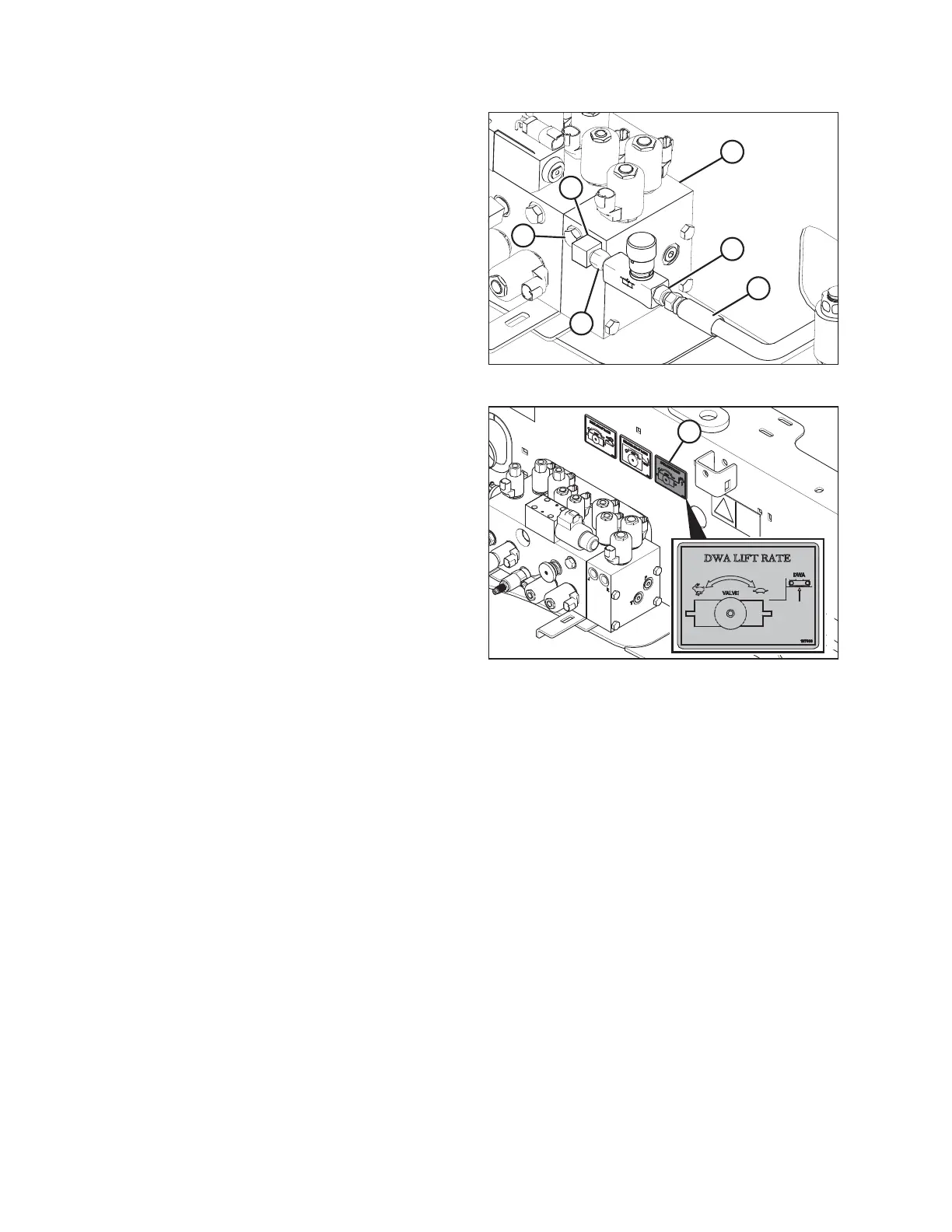

Figure 2.70: Auxiliary Valve Block
10. Connect 9/16–18 ORB fitting (C) to 90° elbow fitting (A).
11. Route 1/4 in. lift cylinder hose (E) through the side of the
windrower frame and connect it to fitting (D).
12. Route the hoses neatly by using the cable ties included in
the kit. Ensure that the hoses are not rubbing against any
moving parts.
13. Install plug (F) into port J on auxiliary valve block (B).
$
Figure 2.71: DWA Lift Rate Decal (MD #167903)
14. Install DWA Lift Rate decal (A) at the location shown. To
install the decal:
a. Clean and dry the installation area.
b. Decide where the decal will be placed before you
remove the decal backing paper.
c. Remove the smaller portion of the split backing paper.
d. Attach the decal to the installation area, and slowly
peel back the remaining paper, smoothing the decal as
it is applied.
e. Prick any small air pockets with a pin and smooth
them out.
SETUP INSTRUCTIONS
