2.6 Installing Hydraulics
Once the Double Windrow Attachment (DWA) is secured to the frame, the hydraulic connections can be made. Setting up
the case drain hose will depend on the particular model of windrower that the DWA is being installed on.
IMPORTANT:
Ensure that all hydraulic fittings and hose ends are free of dust, dirt, and other contaminants before installing them.

$
%

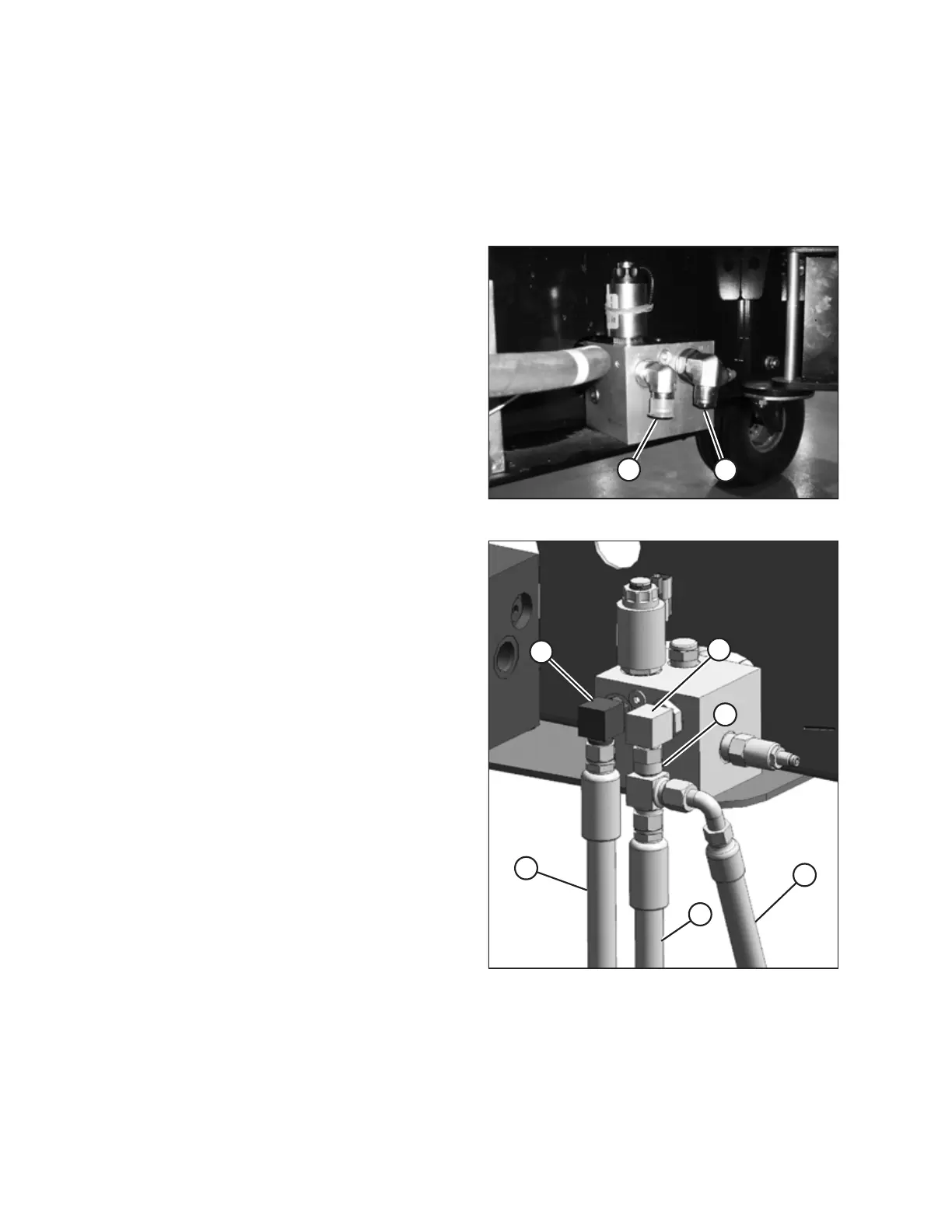

Figure 2.56: Draper Drive Block
1. Install #10 ORB x #10 JIC elbow (A) into the DWA port on
the draper drive block.
2. Install #12 ORB x #10 JIC elbow (B) into the R1 port.

$
%
&
'
(
)
Figure 2.57: Draper Drive Block
A - #10 Tee B - Elbow C - Pressure Hose
D - Elbow E - Return Hose F - Lift Cylinder Hose
3. Connect #10 tee (A) to elbow (B) in the draper drive block.
4. Connect pressure hose (C) (marked with a blue cable tie)
from the top port of the draper drive motor to elbow (D) in
the draper drive block.
5. Connect return hose (E) to tee (A).
6. Connect 1/2 in. lift cylinder hose (F) to tee (A).
