2.6.3 Installing Case Drain Hose – M150/M200 and D Series Headers without
Reverser
The case drain hose must be connected to the header drive block on M150/M200 windrowers using D Series headers
without reversers.

$
%
&
'
(

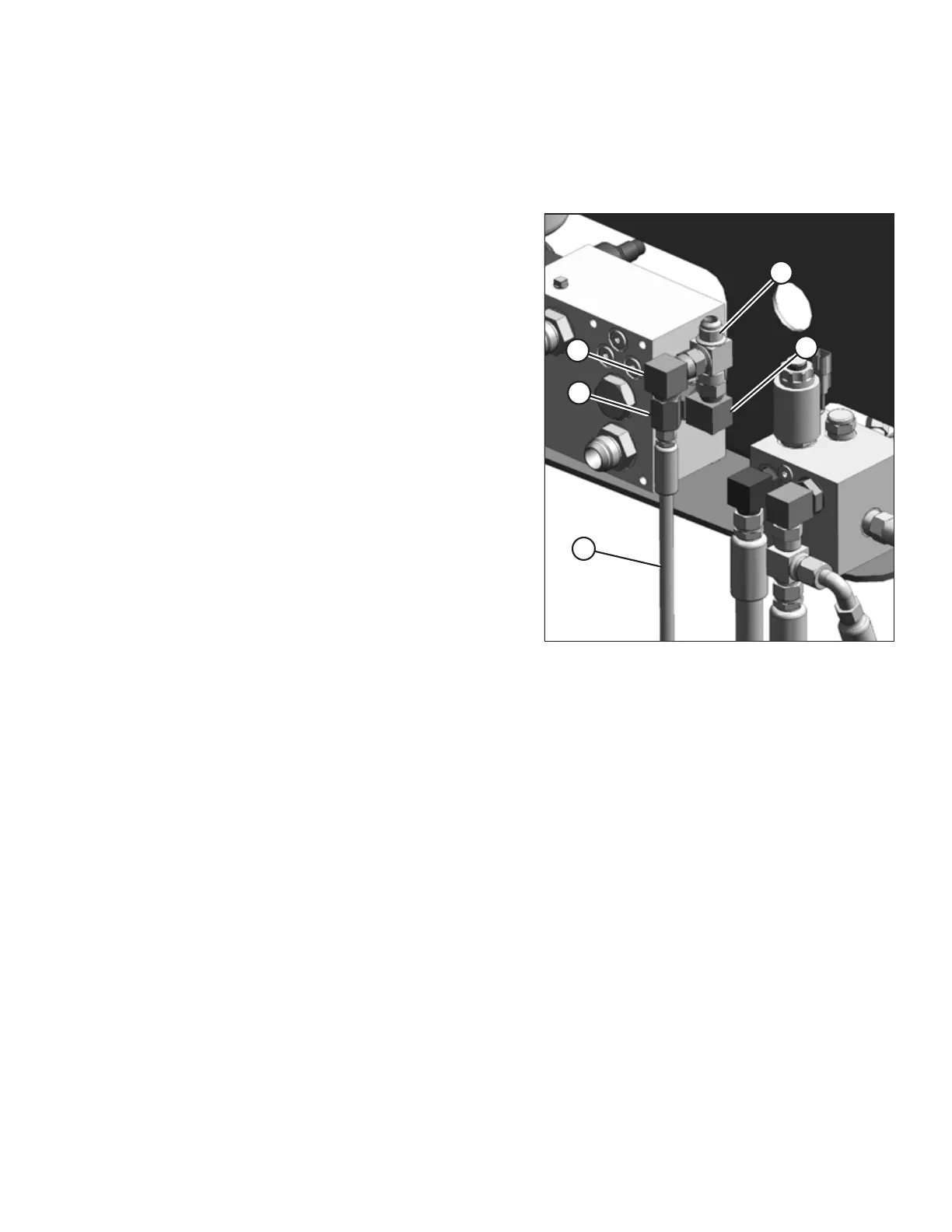

Figure 2.61: Header Drive Block
A - Case Drain Hose B - #12 ORB x #10 JIC Elbow
C - #10 JIC Tee D - #10 JIC x #10 JIC Elbow
E - #10 JIC x #6 JIC Reducer
1. Disconnect the reel return hose (and all the fittings in
between) connected to port T on the header drive block.
2. Connect #12 ORB x #10 JIC elbow (B) to port T on the
header drive block.
3. Connect #10 JIC tee (C) to elbow (B).
4. Connect #10 JIC x #10 JIC elbow (D) to tee (C).
5. Connect #10 JIC x #6 JIC reducer (E) to elbow (D).
6. Install case drain hose (A) to reducer (E).
NOTE:
Make sure that hose (A) is not rubbing against any fittings.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 98 for
additional information on the hydraulic connections.
7. Reconnect the reel return hose by installing the elbow
removed in Step 1, page 37 to tee (C), followed by the reel
return hose.
8. Proceed to 2.7 Installing Auxiliary Valve Block, page 40.
