2.9 Installing Tank Overflow Hose Extension
The extension hose prevents overflow fluid from dropping onto the Double Windrow Attachment (DWA) draper deck.
Follow the relevant procedure:
• To install the overflow extension hose onto M150 models with Cummins engines, refer to 2.9.1 Installing Tank Overflow
Hose Extension: M150, page 50
• To install the overflow extension hose on M155/M155E4 models with Cummins engines, refer to 2.9.2 Installing Tank
Overflow Hose Extension: M155/M155E4, page 51
• To install the overflow extension hose on M200 models with Cat engines, refer to 2.9.3 Installing Tank Overflow Hose
Extension: M200 with Cat Engine, page 53
• To install the overflow extension hose on M205 models with Cummins engines, refer to 2.9.4 Installing Tank Overflow
Hose Extension: M205, page 54
2.9.1 Installing Tank Overflow Hose Extension: M150
The hydraulic tank overflow extension is integrated into the fuel overflow system on M150 windrowers.
$
%
&
'
(
)
*

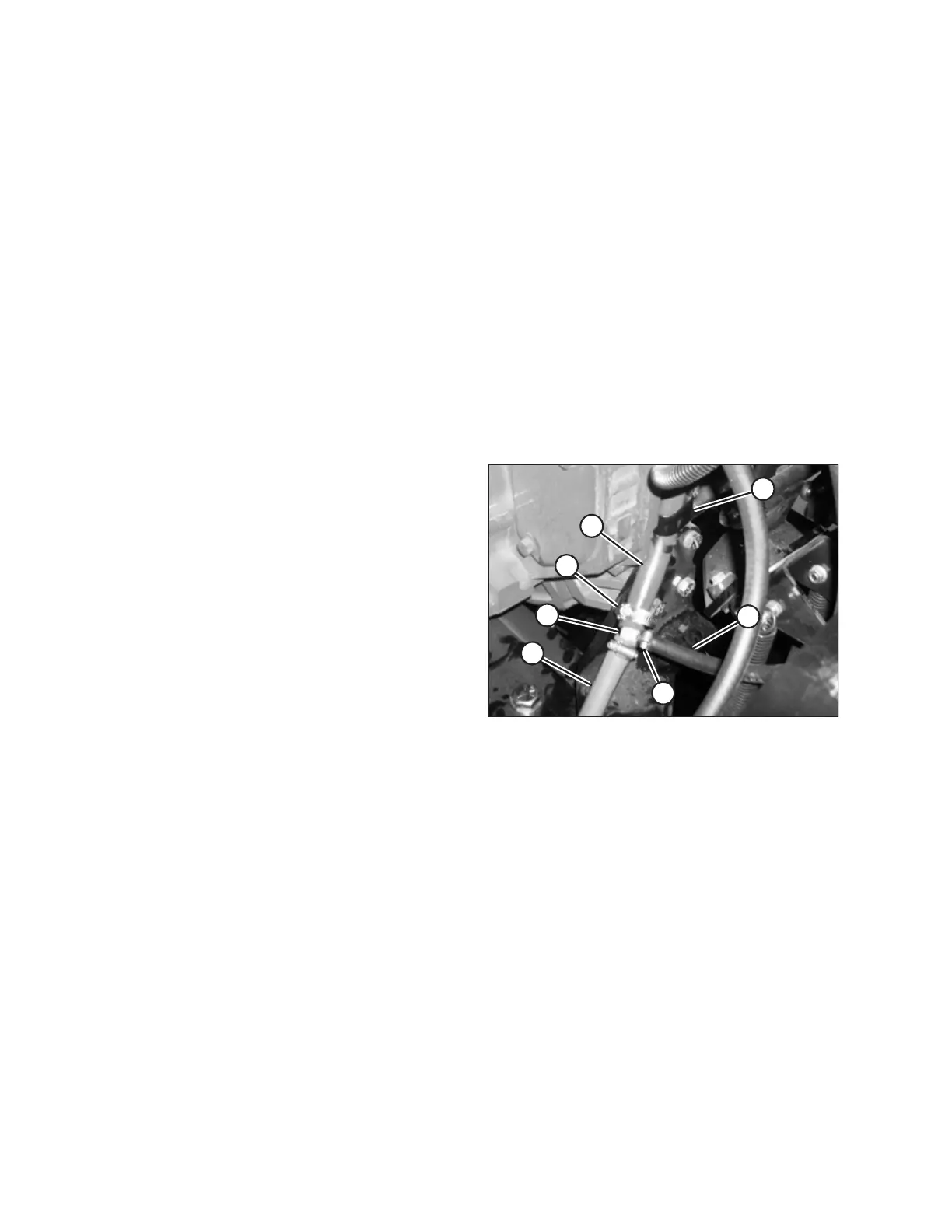

Figure 2.92: Fuel and Hydraulic Overflow Hoses
1. Locate hydraulic hose (A) and fuel tank overflow hose (B).
2. Pull fuel tank hose (B) out from clamp (C).
3. Using supplied plastic tee fitting (D), join the hydraulic and
fuel overflow lines:
• Hose (B) connects to the 3/8 in. tee branch with smaller
gear clamp (E).
• Hose (A) connects to the 5/8 in. tee branch with larger
gear clamp (F).
SETUP INSTRUCTIONS
