MacDon DWA - Installing Platform Rail - M150;M200

215626 18 Revision A
2.3.2 Installing Platform Rail – M150/M200
The right stairs must be removed on M150/M200 windrowers in order to install the adapter plate and platform rail for the
Double Windrow Attachment (DWA).

$
%
&

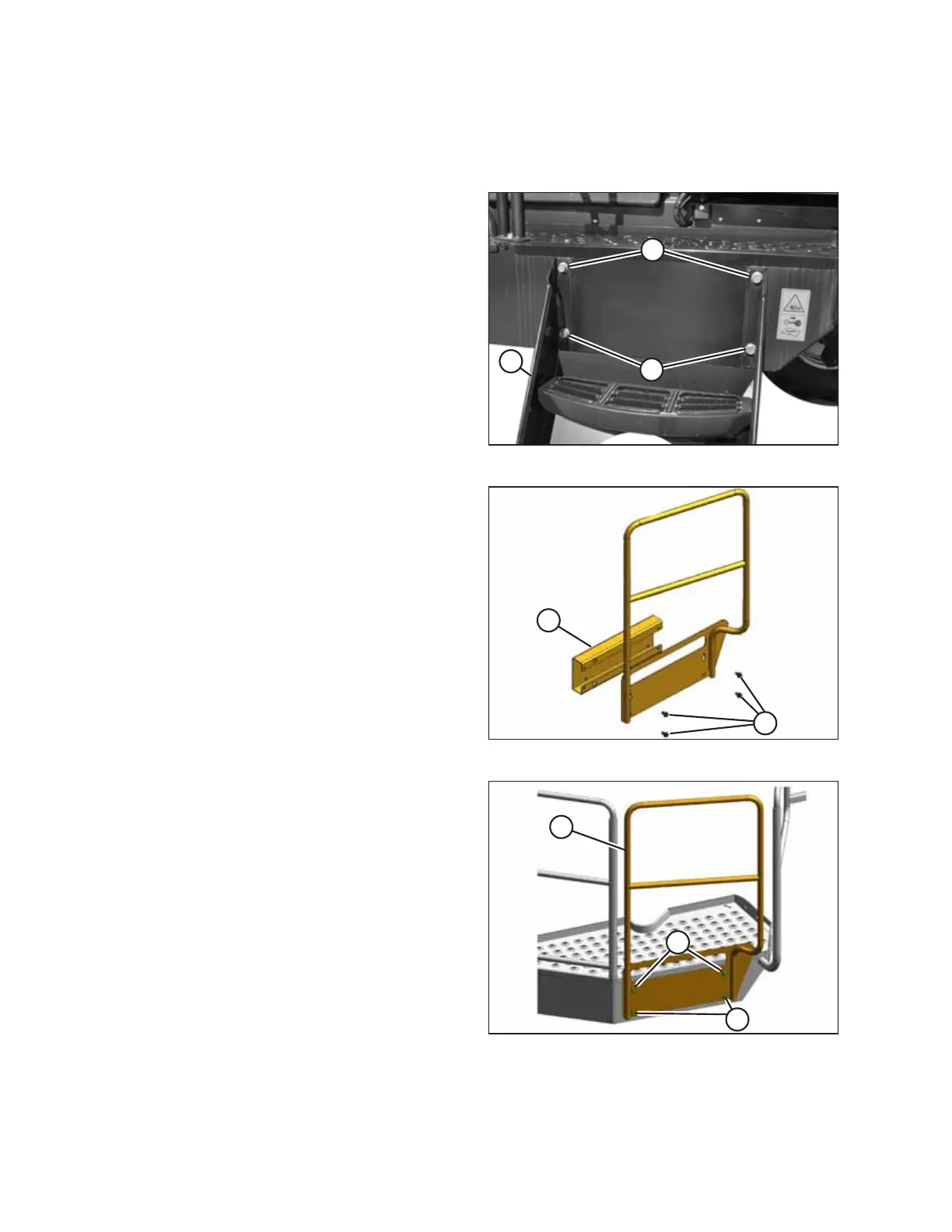

Figure 2.13: Right Stairs
1. Remove right stairs (C) from the platform by loosening two
top bolts (A) and removing two bottom bolts (B).
2. Lift the steps to detach the top keyhole slots from bolts (A).
Retain the bolts.

$
%
Figure 2.14: Platform Rail
3. Remove adapter plate (A) by removing four 1/2 NC x 1 in.
flange bolts and nuts (B).

$
%
&
Figure 2.15: Platform Rail
4. Hang rail (A) without the spacer plate by engaging the
keyhole slots on top bolts (B).
5. Install two bottom bolts (C) and tighten all four bolts.
