2.6.6 Installing Case Drain Hose – M155/M155E4/M205 with All Headers
The case drain hose must be connected to the hydraulic reservoir on M155/M155E4 /M205 windrowers.

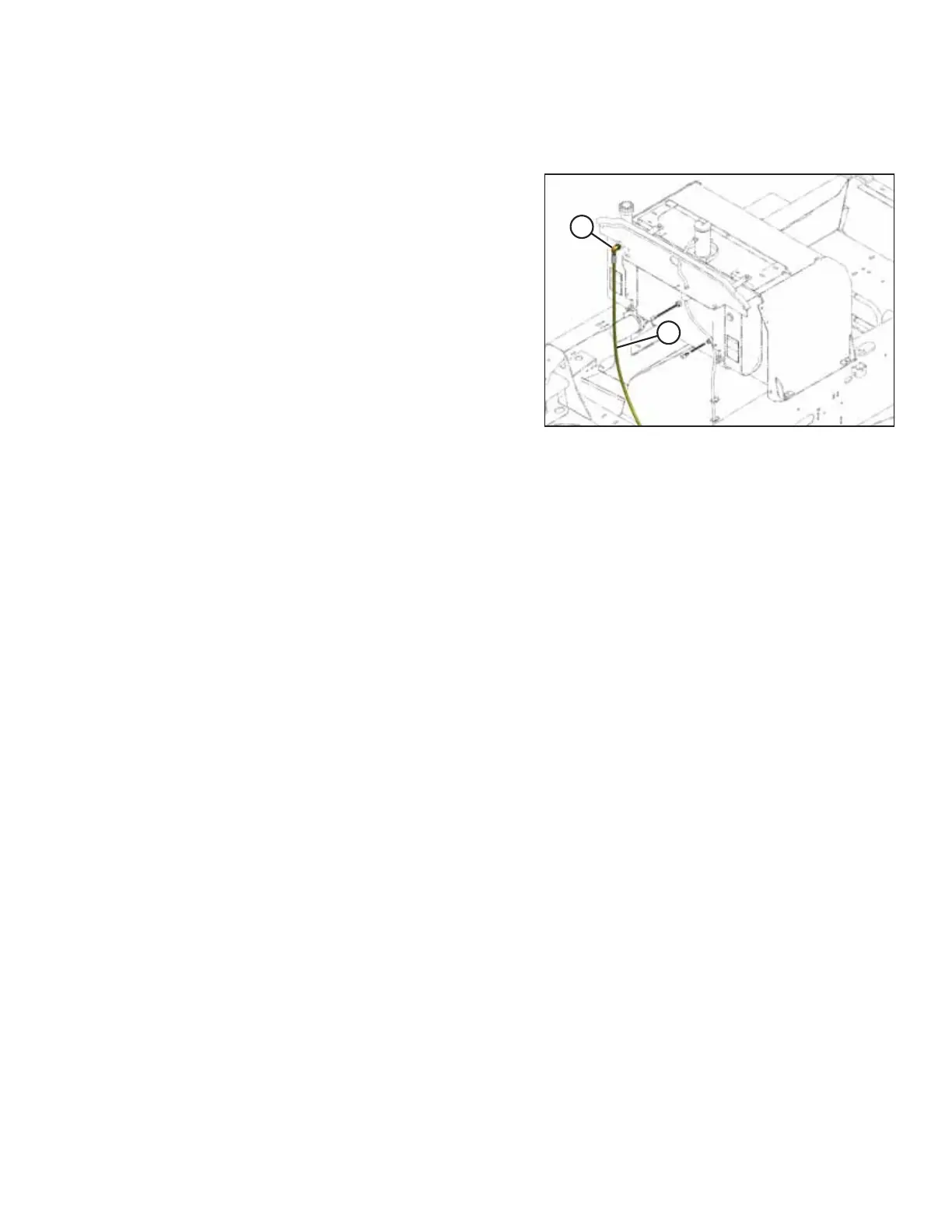

Figure 2.64: Hydraulic Reservoir
1. Remove the plug from the top left corner of the hydraulic
reservoir and connect #10 ORB x #6 JIC elbow (B) to the
reservoir port.
2. Connect case drain hose (A) to elbow (B).
3. Proceed to 2.7 Installing Auxiliary Valve Block, page 40.
Refer to 5.5 Hydraulics and In-Cab Electrical, page 98 for
additional information on the hydraulic connections.
SETUP INSTRUCTIONS
