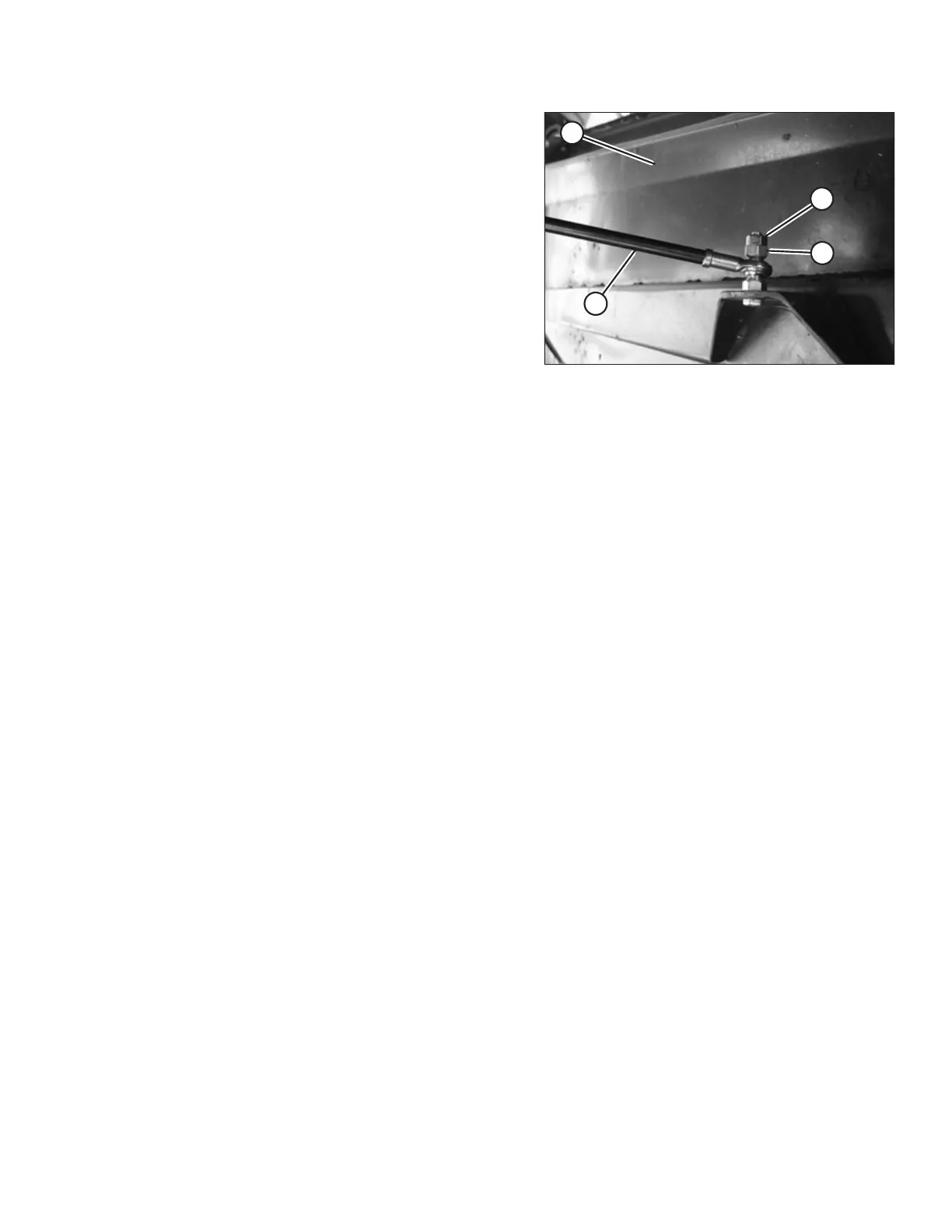

Figure 2.55: Backsheet Gas Shock
16. Raise backsheet (A) on the deck and remove the top nuts
(B) and (C).
17. Install gas shock absorber (D) in the center hole and secure
it with nuts (B) and (C).
IMPORTANT:
Make sure the taper of nut (C) is facing the gas shock rod
end as shown.
