215626 29 Revision A

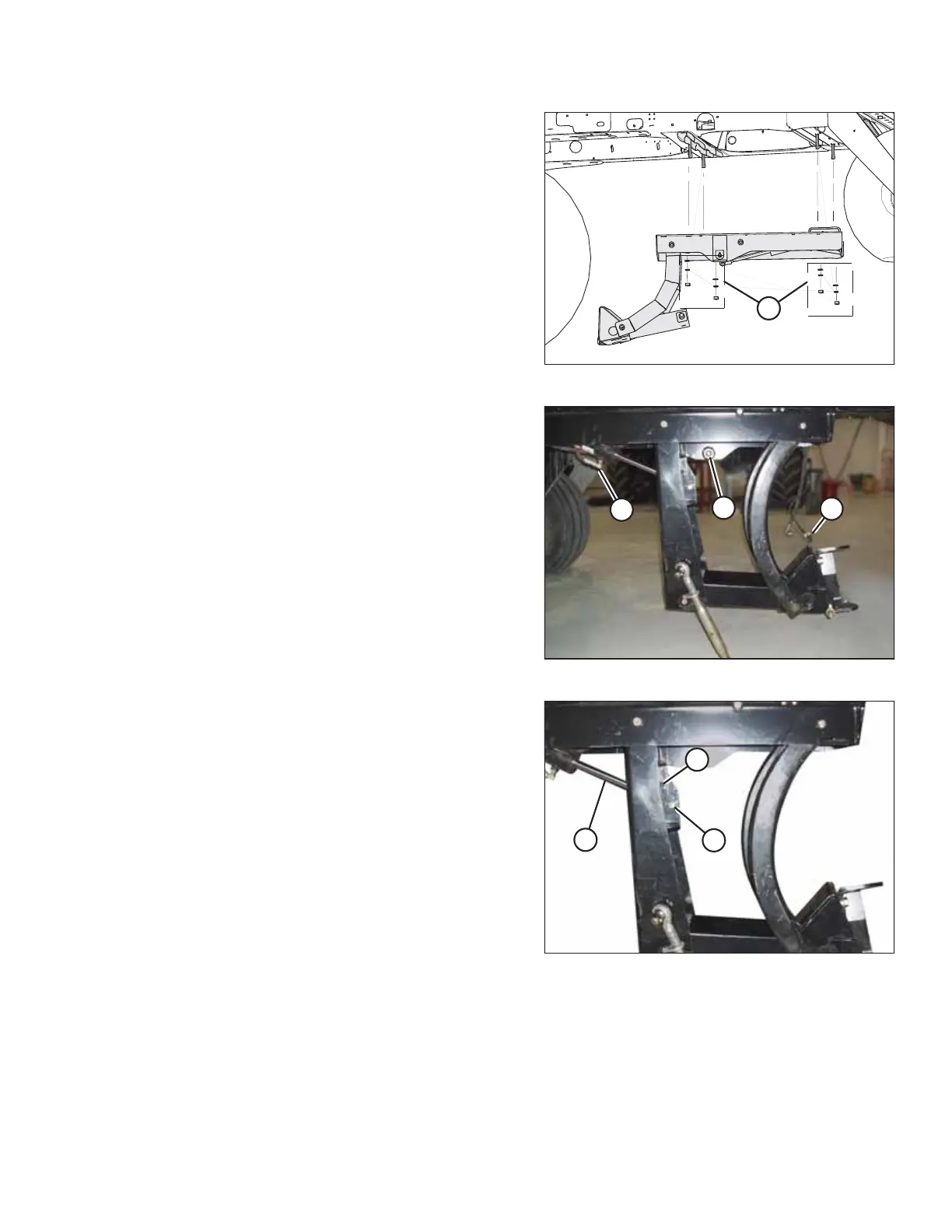

Figure 2.43: Linkage Forward
10. Attach the linkage with four flat washers, lock washers, and
nuts (A).
Figure 2.44: DWA Linkage
11. Lower the linkage by pulling on safety pin (A) on the left
side of the linkage.
12. If the linkage does not lower, remove the plugs at the end
of lift cylinder hoses (B) to remove the air from the hoses.
Figure 2.45: Lift Cylinder Pivot
13. Secure the lift cylinder pivot (A) into the correct hole for
your header type:
• For an R Series header: Insert the pivot in upper
hole (B).
• For a D Series or A Series header: Insert the pivot in
lower hole (C).
SETUP INSTRUCTIONS
