215626 28 Revision A
$
%

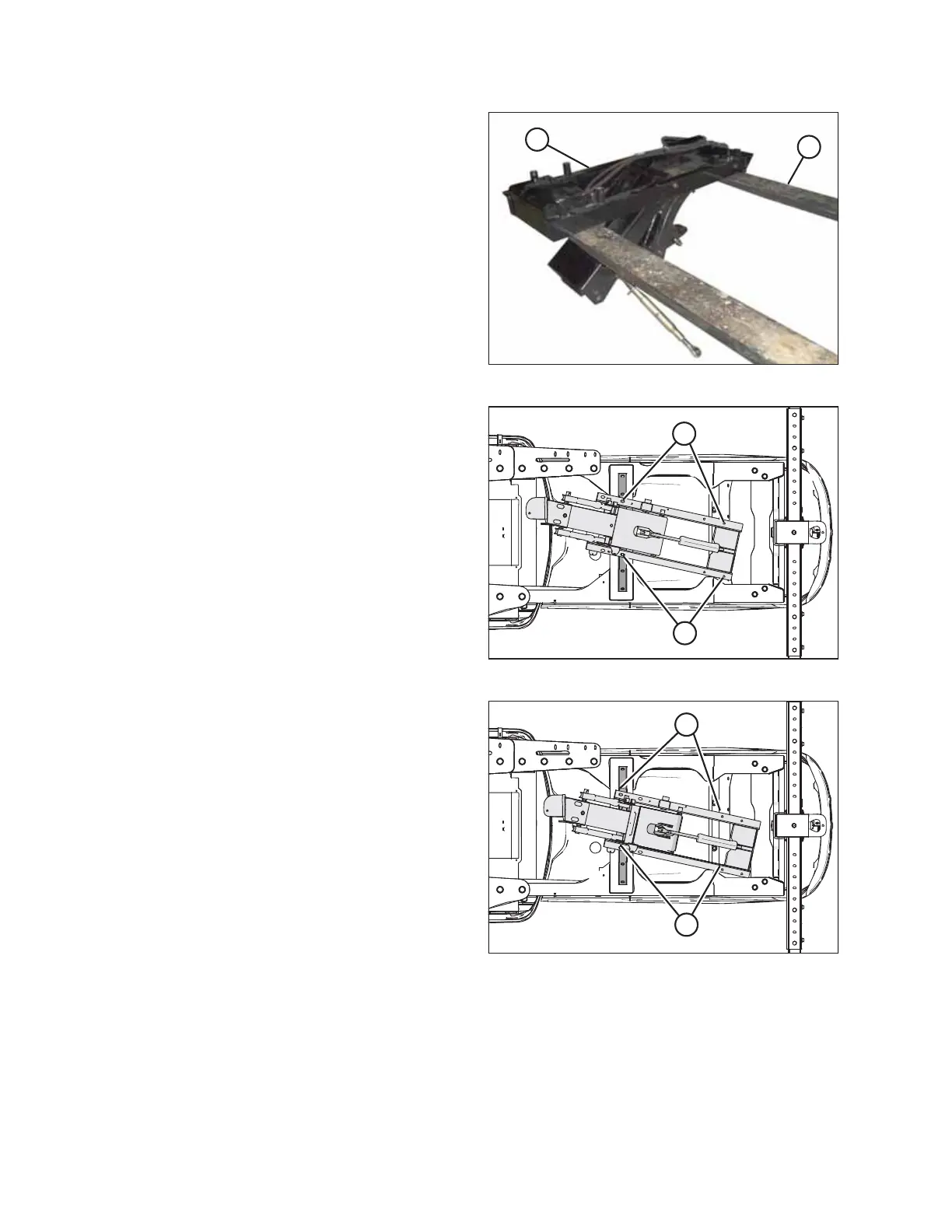

Figure 2.40: DWA Linkage
8. Support linkage assembly (A) with a forklift.
NOTE:
Make sure forks (B) of the forklift do not lift against the
cylinder fitting.
$
$
Figure 2.41: Linkage Forward
9. Align the DWA linkage with the four bolts in the
windrower frame.
• For an R Series header: Mount the linkage in most
forward position (A).
• For an A Series or D Series header: Mount the linkage
in most rearward position (B).
%
%
Figure 2.42: Linkage Rearward
SETUP INSTRUCTIONS
