215626 27 Revision A

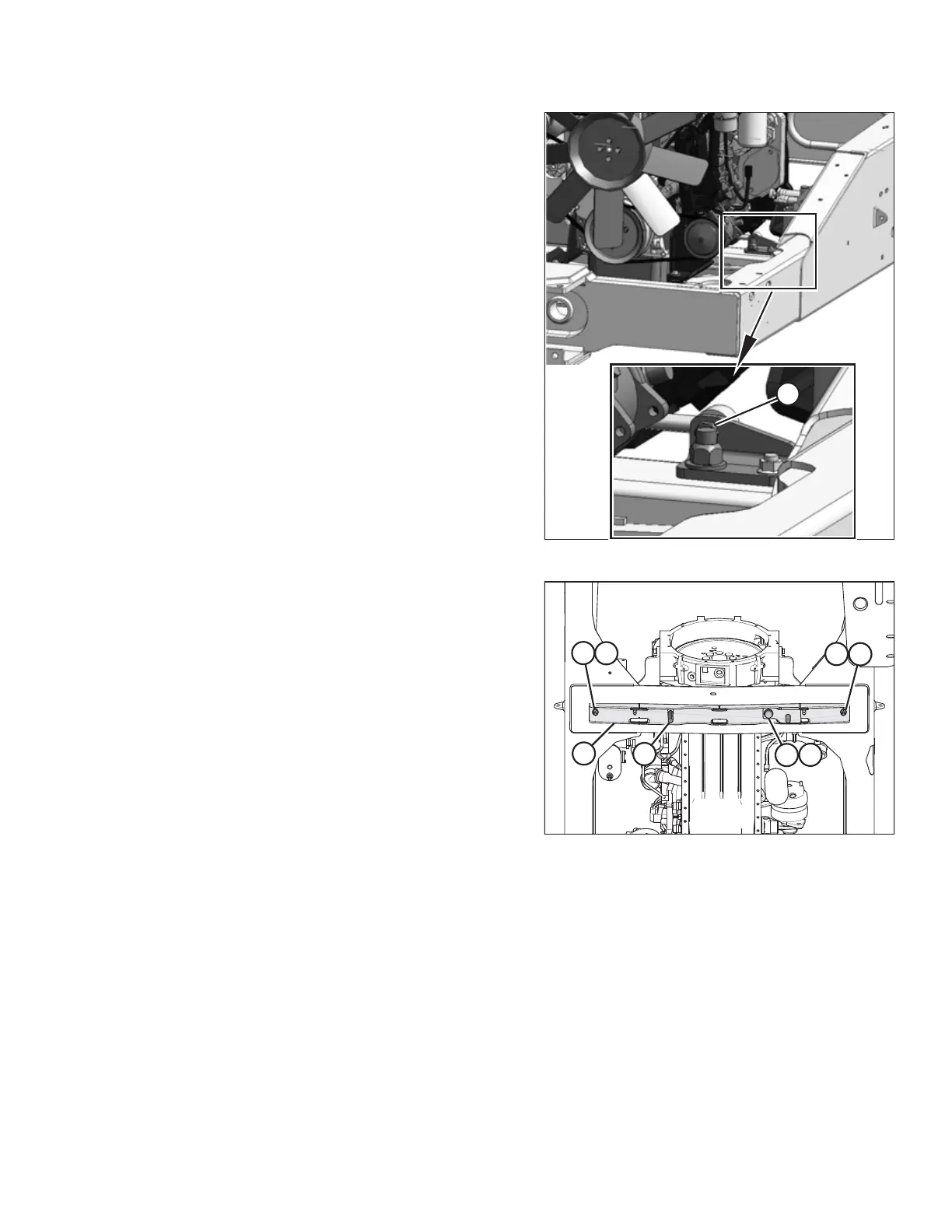

Figure 2.38: Stabilizer Link
3. M205 Windrower – 2010 and 2011 model years only:
Remove 3/4 in. x 3 1/2 in. bolt (A) from the stabilizer link
mount near the right front engine mount. Retain the bolt.
Figure 2.39: Linkage Support
4. Mount linkage support (A) to the windrower frame with
two 1/2 in. x 2 3/4 in. hex head bolts (B) with flat washers
under the bolt heads. Secure the bolts with nuts (C).
5. From below the support, install 3/4 in. x 3 1/2 in. long hex
head bolt (D) with flat washer (E) under the bolt head.
6. Secure the bolt with a flat washer, a lock washer, and a nut
on the top of the frame.
7. From above the support, install 3/4 in. x 5 1/2 in. long hex
head bolt (F) with a flat washer under the bolt head.
NOTE:
This bolt replaces the 3 1/2 in. long bolt removed in Step 3,
page 27.
Do NOT install a nut on bolt (F).
SETUP INSTRUCTIONS
