MacDon DWA - Page 41

215626 31 Revision A

$
%

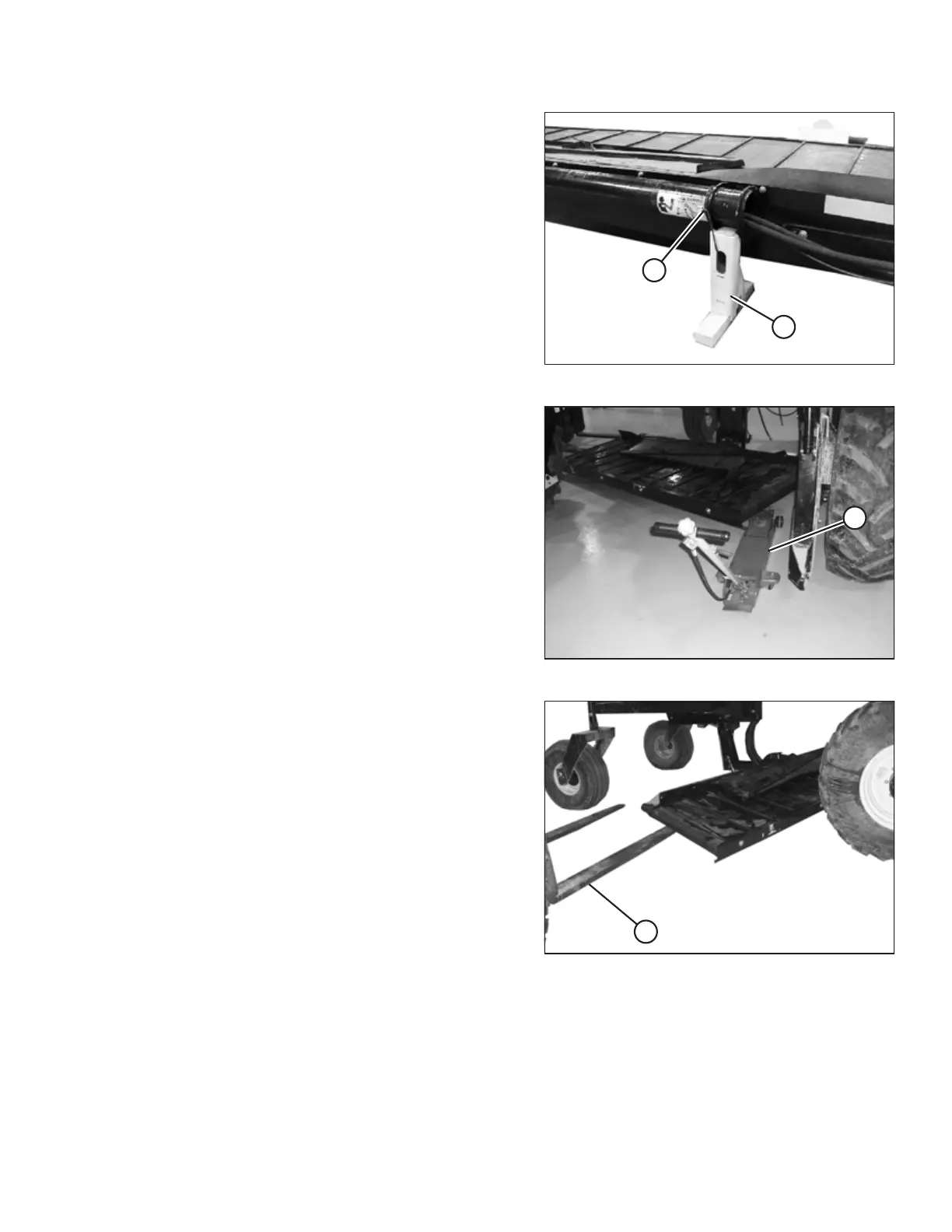

Figure 2.49: Deck Shipping Stand
6. Remove shipping stand (A) by removing transport wire (B).
The DWA deck is now ready to be assembled to the linkage
underneath the windrower.

$
Figure 2.50: DWA Deck Supported with Floor Jack
7. Position the DWA deck on the right side of the windrower.
8. Support the deck with floor jack (A) or forklift (B) at
each end.

%
Figure 2.51: DWA Deck Supported with Fork Lift
SETUP INSTRUCTIONS
