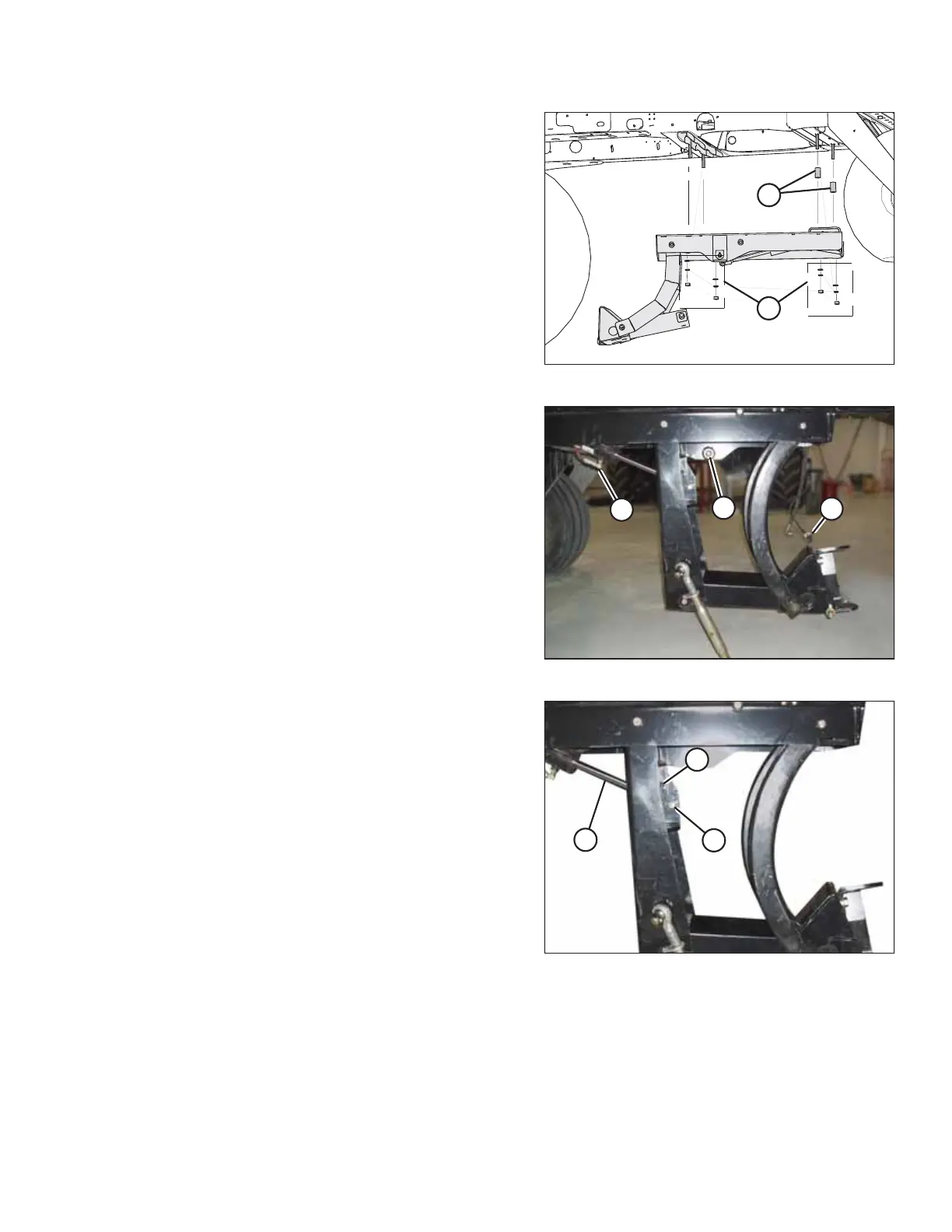

Figure 2.33: Linkage Forward
10. Position two 1 1/2 in. OD x 1 in. ID x 2 3/4 in. long
spacers (A) on the rear bolts.
NOTE:
Spacers are not required with the linkage in the rearward
position.
11. Attach the linkage with four flat washers, lock washers, and
nuts (B).
Figure 2.34: DWA Linkage
12. Lower the linkage by pulling on safety pin (A) on the left
side of the linkage.
13. If the linkage does not lower, remove the plugs at the end
of lift cylinder hoses (B) to remove the air from the hoses.
Figure 2.35: Lift Cylinder Pivot
14. Insert lift cylinder pivot (A) into the correct hole depending
on header type:
• For R Series Header: Insert the pivot in upper hole (B).
• For D Series or A Series Headers: Insert the pivot in
lower hole (C).
SETUP INSTRUCTIONS
