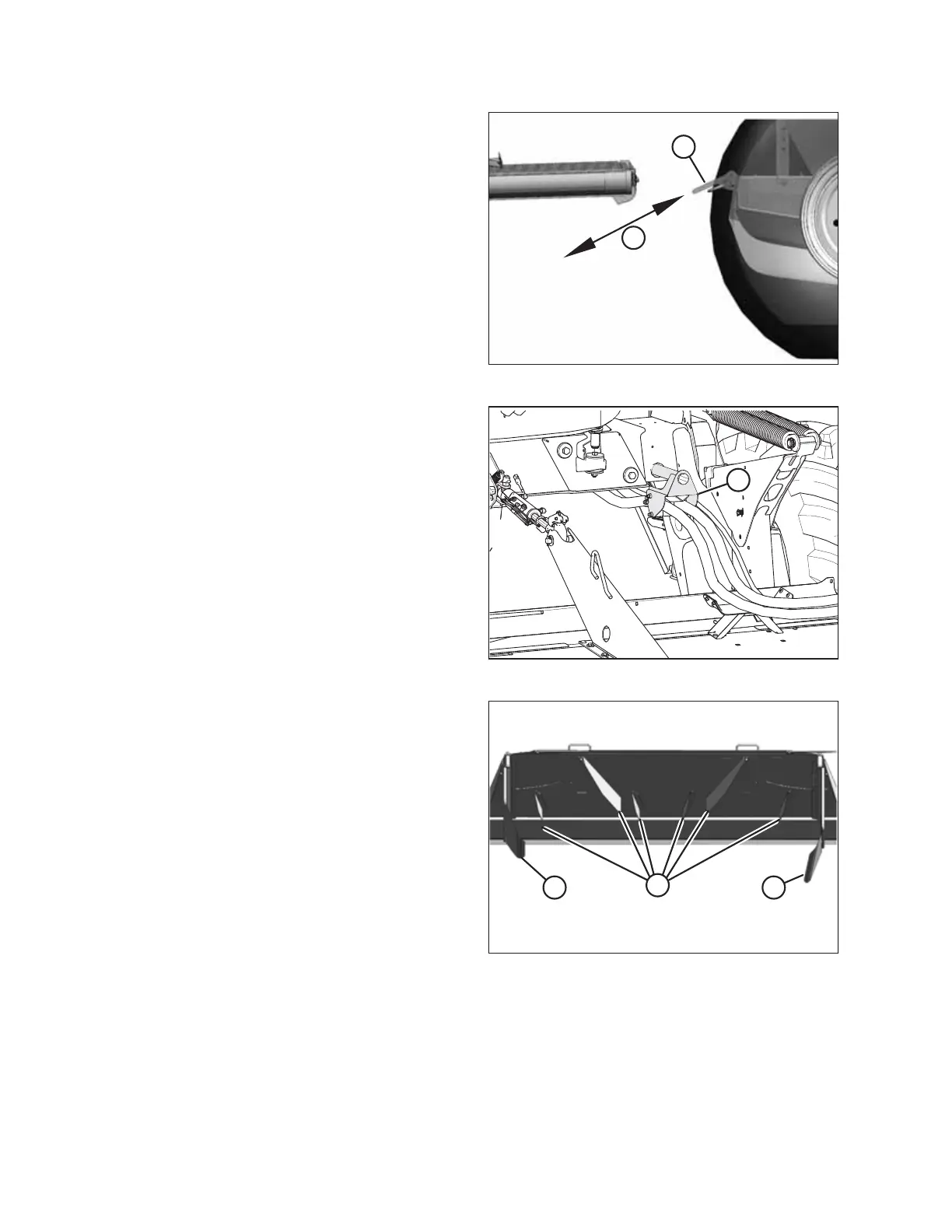

Figure 3.16: Deck Raised
6. Adjust rear deflector baffle (A) so that crop flow (B) does
not interfere with the deck when fully raised:
• Set the left end of the rear deflector lower to direct the
crop down toward the DWA draper.
• Set the right end of the rear deflector higher to allow
space for the crop to flow to the DWA deck.
$
Figure 3.17: Header Hose Support
7. After installing the forming shield, raise the header fully.
Ensure that there is adequate clearance between the top of
the forming shield and header drive hose support (A)
attached to the windrower frame.
$ $
%
Figure 3.18: Fins under Forming Shield
A - Side Deflectors B - Fins under Forming Shield
NOTE:
When using the DWA with disc headers, remove fins (B)
under the forming shield.
