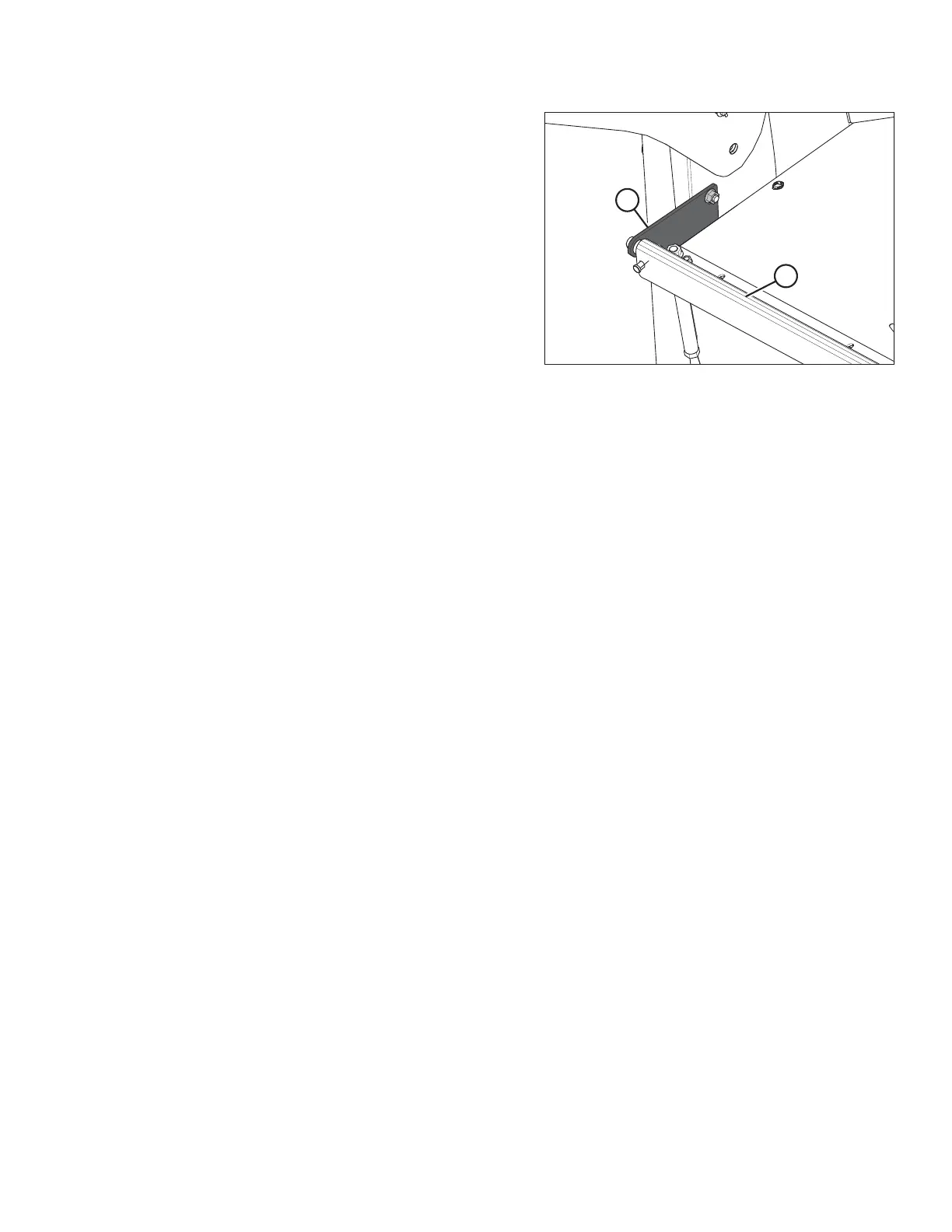

Figure 3.19: Forming Shield
Forming shield settings
• Make sure that forming shield (A) is installed correctly with
bracket (B).
• Remove the windrow forming fins from the underside of the
forming shield to improve the flow of crop to the DWA.
• Periodically remove any buildup of sticky crop residue on
deflector sliding surfaces.
• Refer to 3.7 Positioning Conditioner Forming Shield, page 65
for more instructions on positioning the conditioner forming
shield.
