215626 76 Revision A
1. Shut down the engine, and remove the key from the ignition.
2. Ensure that the deck safety pin is engaged.
%
$

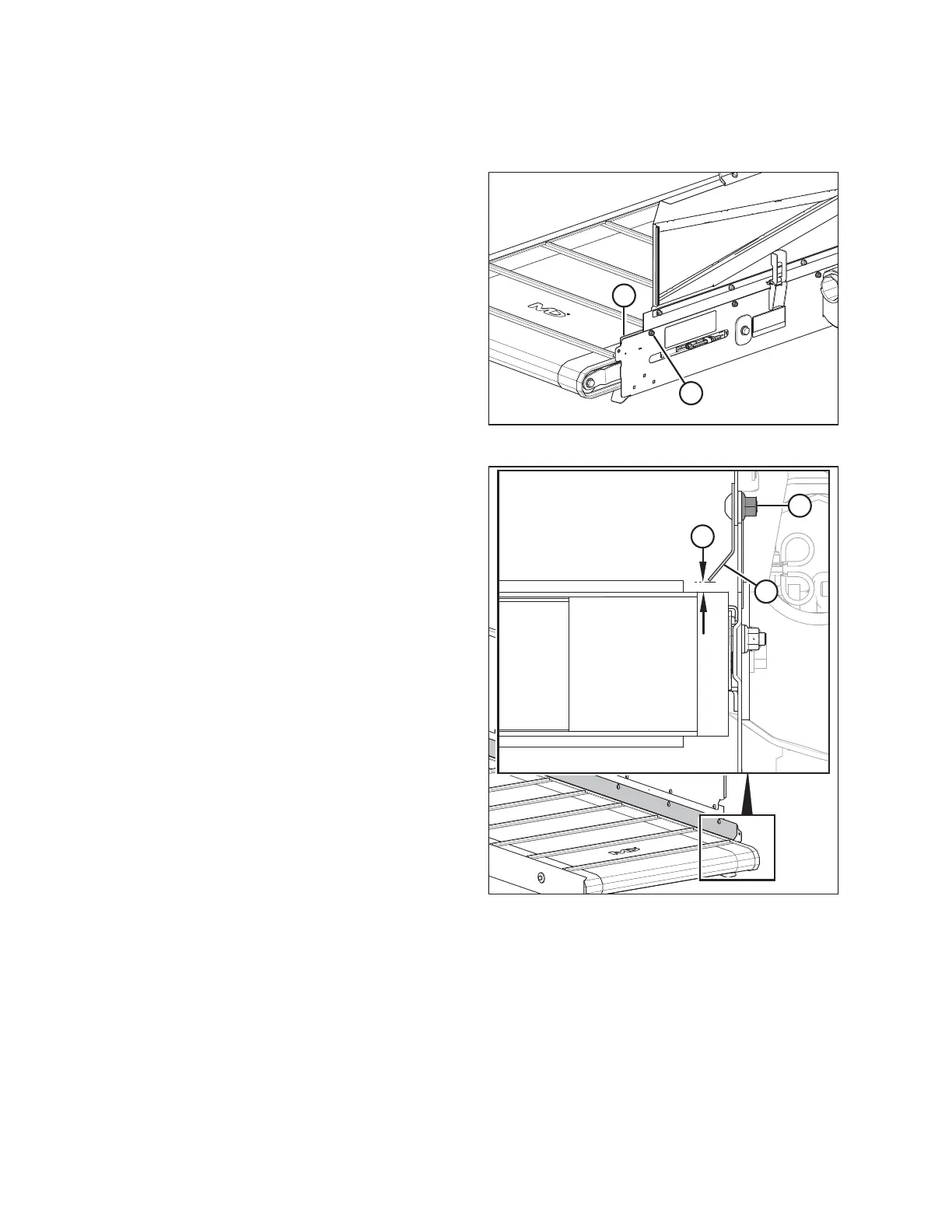

Figure 4.9: Draper Deck Rear Deflector
3. Loosen eight nuts (B) securing rear deflector (A) along the
length of the deck.
$
%
&
Figure 4.10: Draper Deck Rear Deflector
4. Set height (C) so that deflector (A) is 1.5–8mm
(1/16–5/16 in.) above the draper.
5. Tighten nuts (B).
MAINTENANCE AND SERVICING
