28
Position Menu

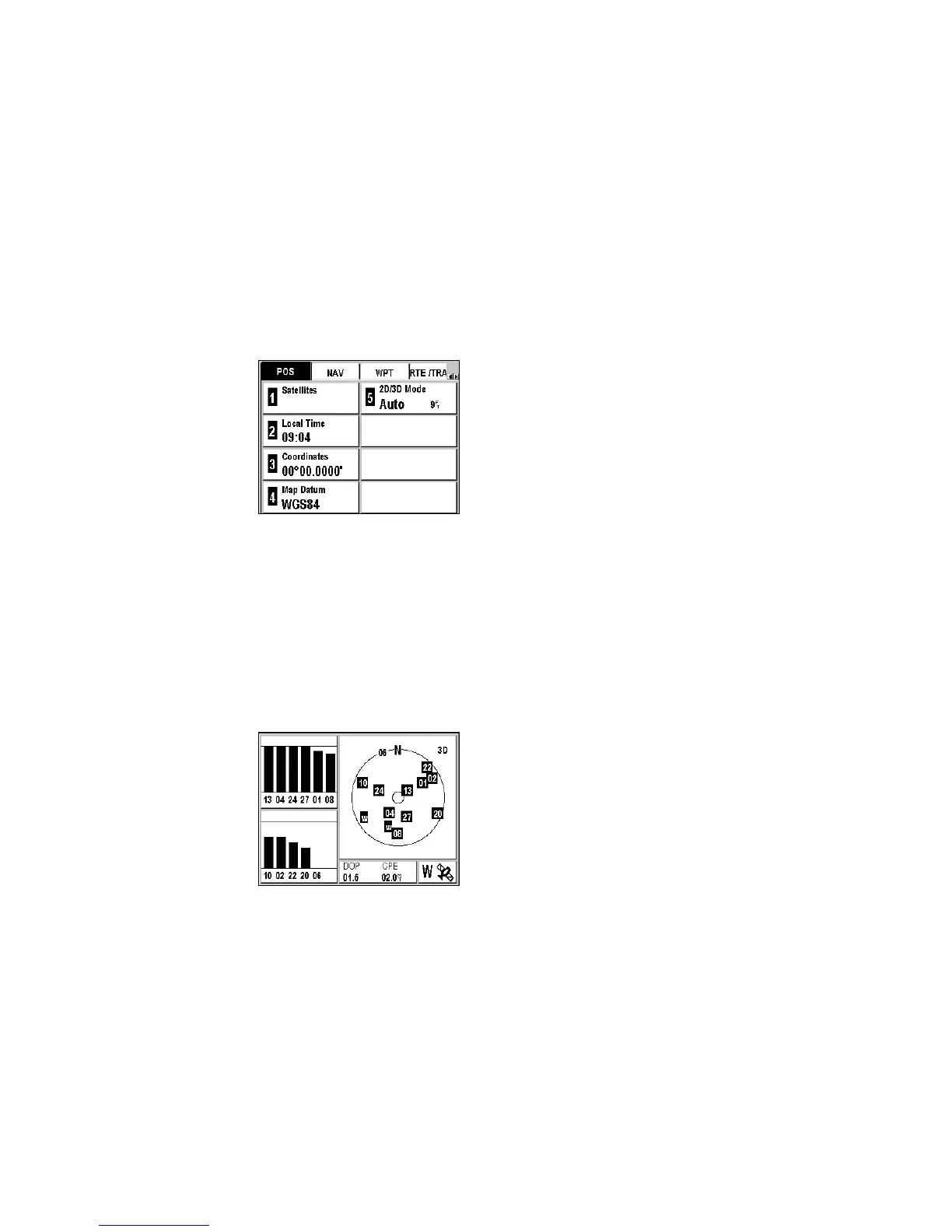

The Position menu can be displayed directly by pushing Menu from any
Position screen or by selecting Menu and then the POS tab.
Five options are available.
See Navigating through the Screens and Selecting Options.
Viewing the Satellites
The Satellite option allows you to view the satellites from which your GPS
is receiving signals, as well as the accuracy of the calculated position, at
any time.
Menu Æ POS Tab Æ 1-Satellites
Example: The screen below shows that the GPS receives 10 satellites. The
CPE is equal to 2 meters and the DOP is equal to 1.5. The two w
symbols mean that your GPS is currently receiving two Waas or
Egnos satellites. In the example below, the reception quality for
satellite 06 is not good enough to be used in the position
calculation.
The window to the right of the screen represents the available satellites in
the sky. The outer circle represents the horizon and the inner circle
