66

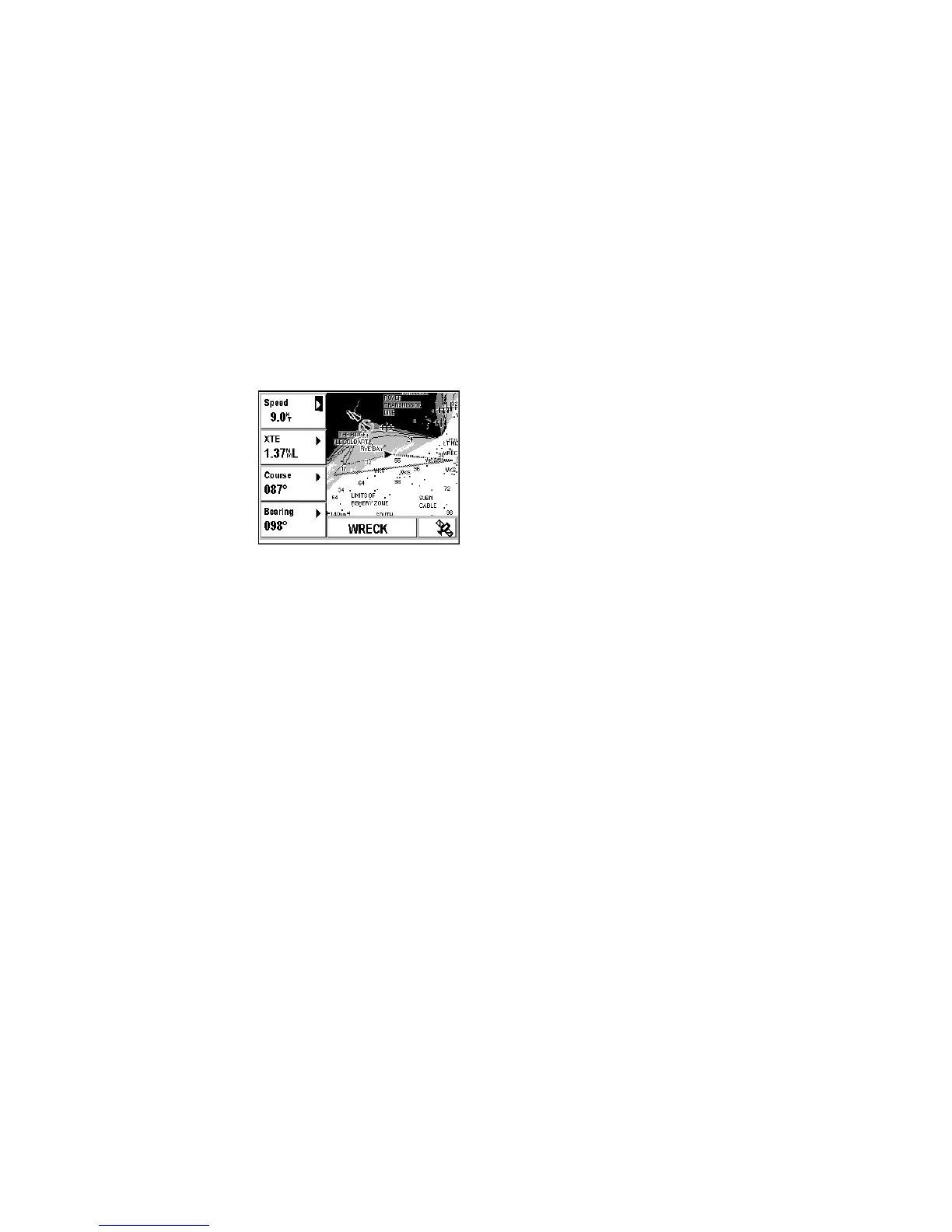

Plotter Screen No. 2
This screen can be displayed at any time by pushing the Plot button once
or twice.
The main window displays the same chart as in full screen mode and four
configurable windows allow you to choose the other information to be
displayed.
Note: If the screen that appears after you push the Plot button is
different, push the Plot button again.
Configurable Windows
The 4 windows located on the left of the screen can be configured. Select
a window and push Enter to choose the type of information you would like
to view from the list. Push Enter to choose your selection.
See Choosing the Information Displayed in the Configurable Window.
Plotter Window
The main window displays the same information as in full screen mode.
See Plotter Screen No. 1.
Active Waypoint
The name of the active waypoint is displayed at the bottom of the screen.
This can be your destination waypoint or the next waypoint if you are
navigating in GoTo Route mode.
See Moving Toward a Waypoint and Following a Route.
