OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-82 Published 7-23-2020, Control # 668-02

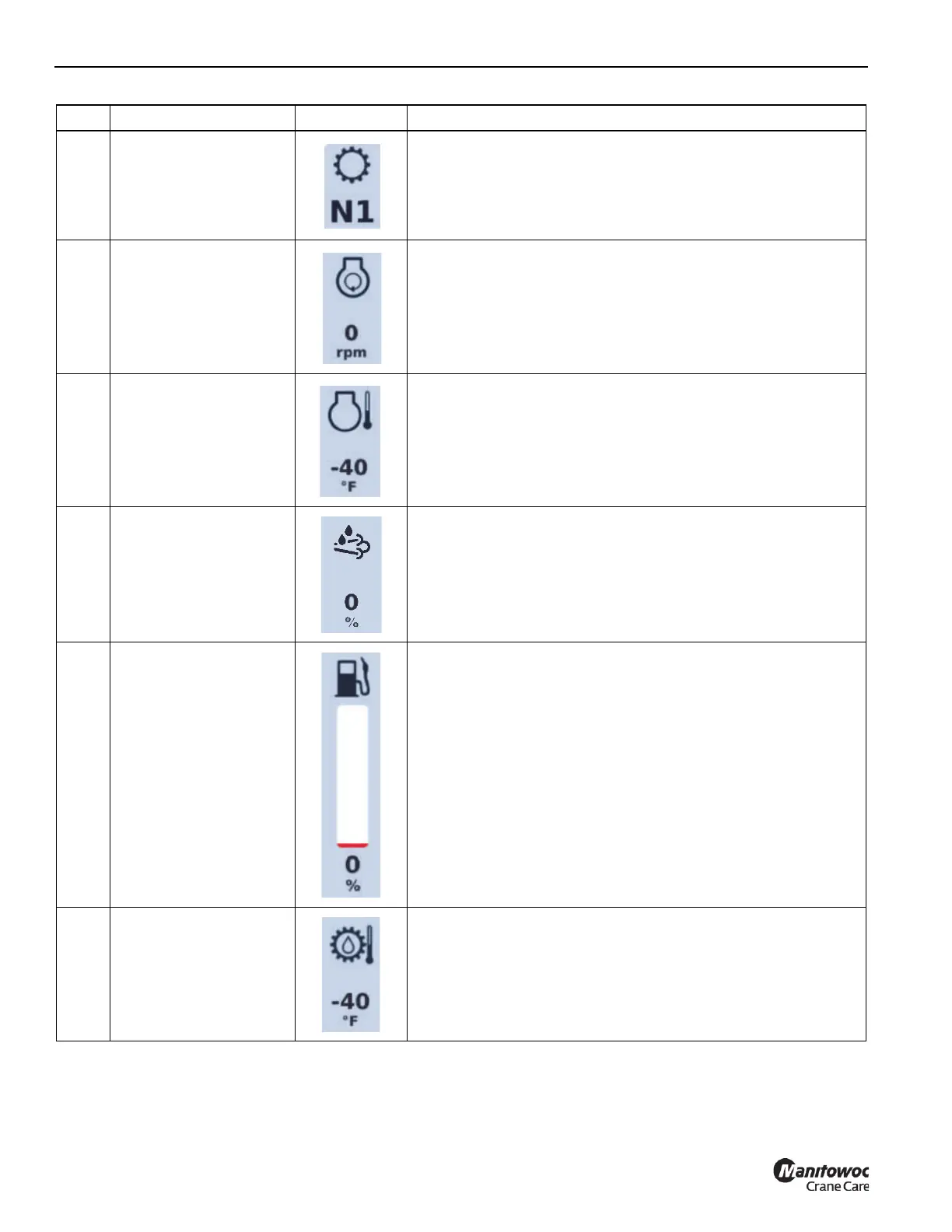

Item Name Symbol Description
1
Direction/Gear
Indicator
Indicates if the transmission is in neutral (N), forward (F), or reverse
(R) and what gear is selected [first gear (1), second gear (2), or third
gear (3)].
2 Engine Speed Indicator Shows engine speed in revolutions per minute (RPM).
3
Engine Coolant
Temperature Indicator
Shows engine coolant temperature in the selected unit of measure
(°C / °F).
If indicator is yellow or red, safely stop the lifting operation, land and
secure the load being lifted. If possible, retract and lower the boom.
Shut down and secure the crane.
4
Diesel Exhaust Fluid
Level Indicator
Shows the DEF level as a percentage.
Yellow Indicator - Indicates the DEF tank is between 5% to 10% full.
Red Indicator - Indicates the DEF tank is 5% or less full.
5
Diesel Fuel Level
Indicator
Shows the fuel level as a percentage.
Yellow Bar - Indicates the fuel tank is between 5% to 15% full.
Red Bar - Indicates the fuel tank is 5% or less full.
6
Transmission Oil
Temperature Indicator
Shows the transmission oil temperature in the selected unit of
measure (°C / °F).
If indicator is yellow or red, then when safe to do so, move the crane
to a location where it can be parked and secured. Let the
transmission cool by running the engine at idle.
To Next Page
