GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4
Main Boom Length Display
Telescopic Sections Display
Refer to Pre-selection for all telescopic sections.
Current telescope Status Display
Extended length of the telescopic sections in percentage
Pre-selection for Selected Telescopic Section
Pre-selection Individual Telescopic Sections
Display:
Current extended length of the main
boom (1, Figure 4-88)
Unit of
measurement:
Displayed depending on setting, m
(meters) or ft (feet)
1 - 5
Display of telescopic sections 1 to 5
(1, Figure 4-89)

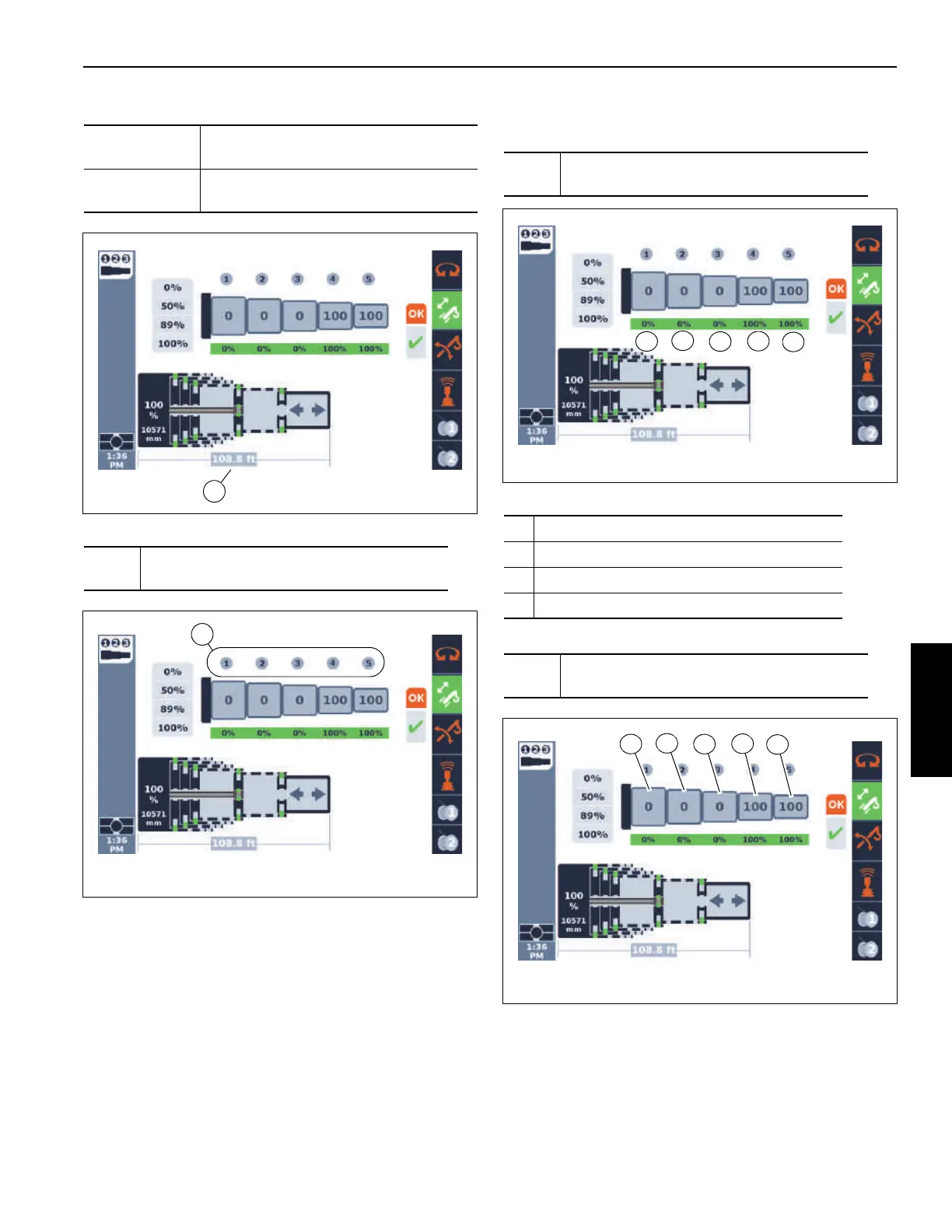

FIGURE 4-88
10085-21
1
FIGURE 4-89
10085-21
1
1 - 5
Display of telescopic sections 1 to 5
(Figure 4-90)
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%/55%
3 Pre-selection telescoping 89%
4 Pre-selection telescoping 100%
1 - 5
Display of telescopic sections 1 to 5
(Figure 4-91)
FIGURE 4-90
1
2
3
4
5
10085-21
FIGURE 4-91
10085-21
1
2
3
4
5
