OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-132 Published 7-23-2020, Control # 668-02

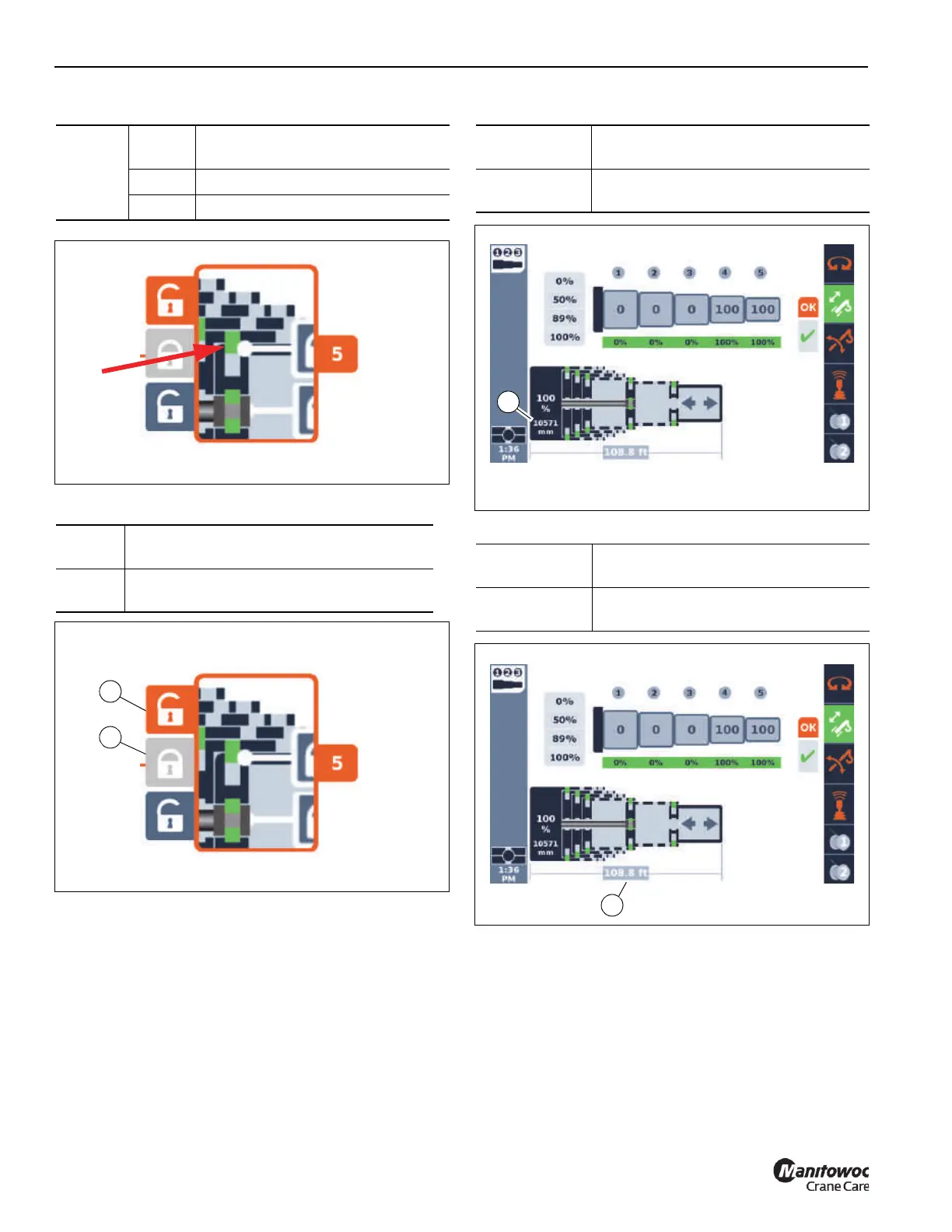

Lock/release Telescopic Section Indication
Locking/releasing the Telescopic Section
Telescoping Cylinder Length Display
Main Boom Length Display
Telescoping Section in the Telescopic Section
Display
Displayed telescopic section, e.g. telescopic section 5
Figure 4-130
Display
Yellow:
Locking pins intermediate position
Figure 4-126
Green: Telescopic section locked
Red: Telescopic section unlocked
To l ock:
Select symbol (2) Figure 4-127 and confirm
– telescopic section locked
To
unlock:
Select symbol (1) and confirm – telescopic
section is unlocked
FIGURE 4-126
10085-15a
FIGURE 4-127
10085-15a
1
2
Display:
Current extended length of the
telescoping cylinder (1, Figure 4-128)
Unit of
measurement:
Displayed in mm (millimeters)
Display:
Current extended length of the main
boom (1, Figure 4-129)
Unit of
measurement:
Displayed depending on setting, m
(meters) or ft (feet)
FIGURE 4-128
10085-21
1
FIGURE 4-129
10085-21
1
