OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-160 Published 7-23-2020, Control # 668-02
In this order, the values that can be selected for the current
entry are always restricted by the previous entry. As a result,
already entered values do not change.
When entering the components, the corresponding RCL
code (6) is displayed at the same time.
Then you must enter the current hoist selection (4) and
reeving (5) and confirm the indicated rigging mode (7).
Switching on Input Mode
• Select one of the desired components (1, Figure 4-180)
to (4).
The corresponding symbol goes orange.
• Confirm the selection.
Direction arrows appear on the display.
Input mode is switched on.
Selecting Values
With the input mode switched on, you can select values that
are permissible according to the Lifting Capacity Table.
The selection process is described using reeving as an
example.
• Select and confirm the symbol (1, Figure 4-181) –
arrows on the left and right are displayed.
• Select using the left or right buttons on the control panel
until the display shows the rigged reeving.
• Confirm the selection.
The display shows the corresponding RCL code (2).
You can cancel the input at any time. Press button (1,
Figure 4-182) or (2).
After the selection procedure, there are three options:
• Cancel input mode:
- Press the button (3, Figure 4-183) or (4) once – the
config menu is opened.

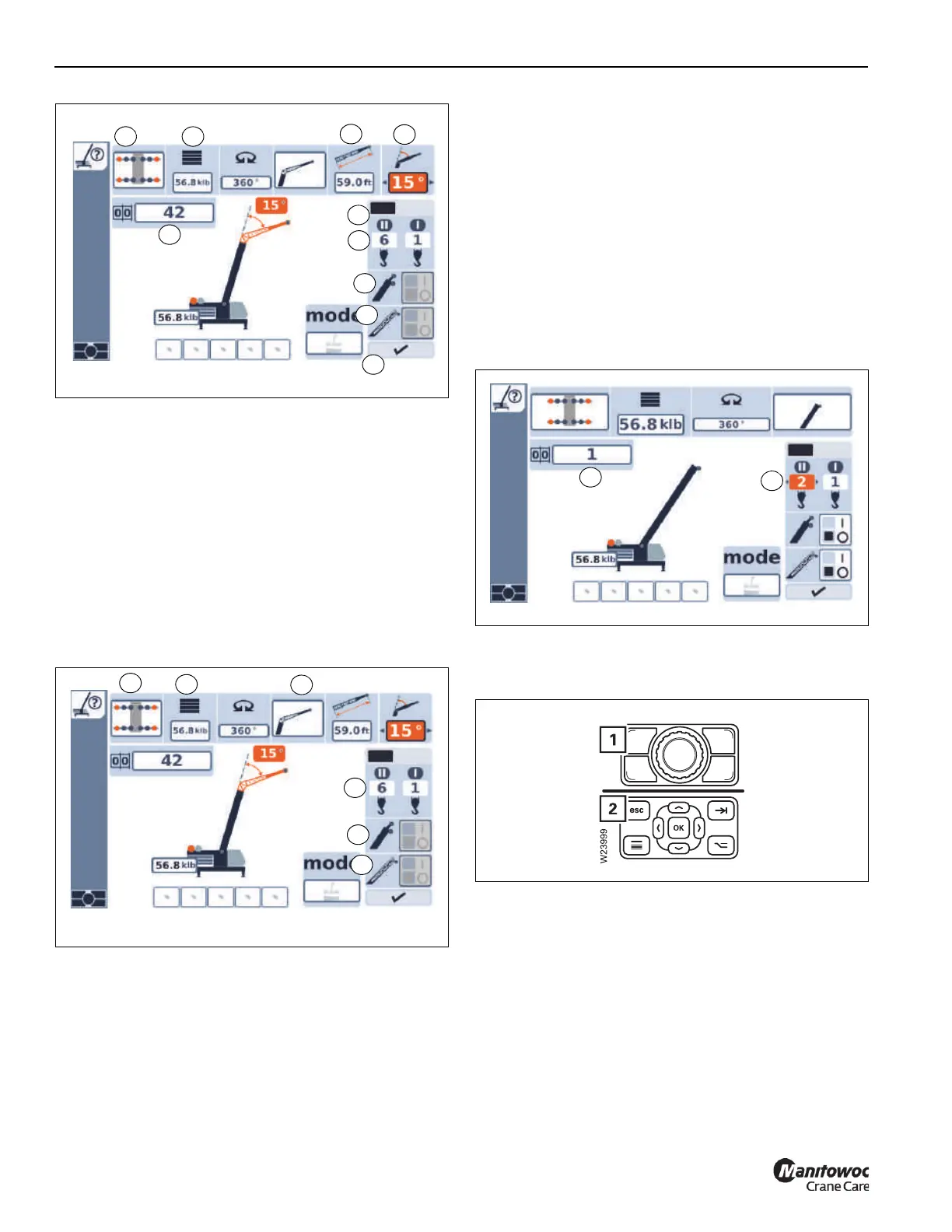

FIGURE 4-179
