OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-162 Published 7-23-2020, Control # 668-02

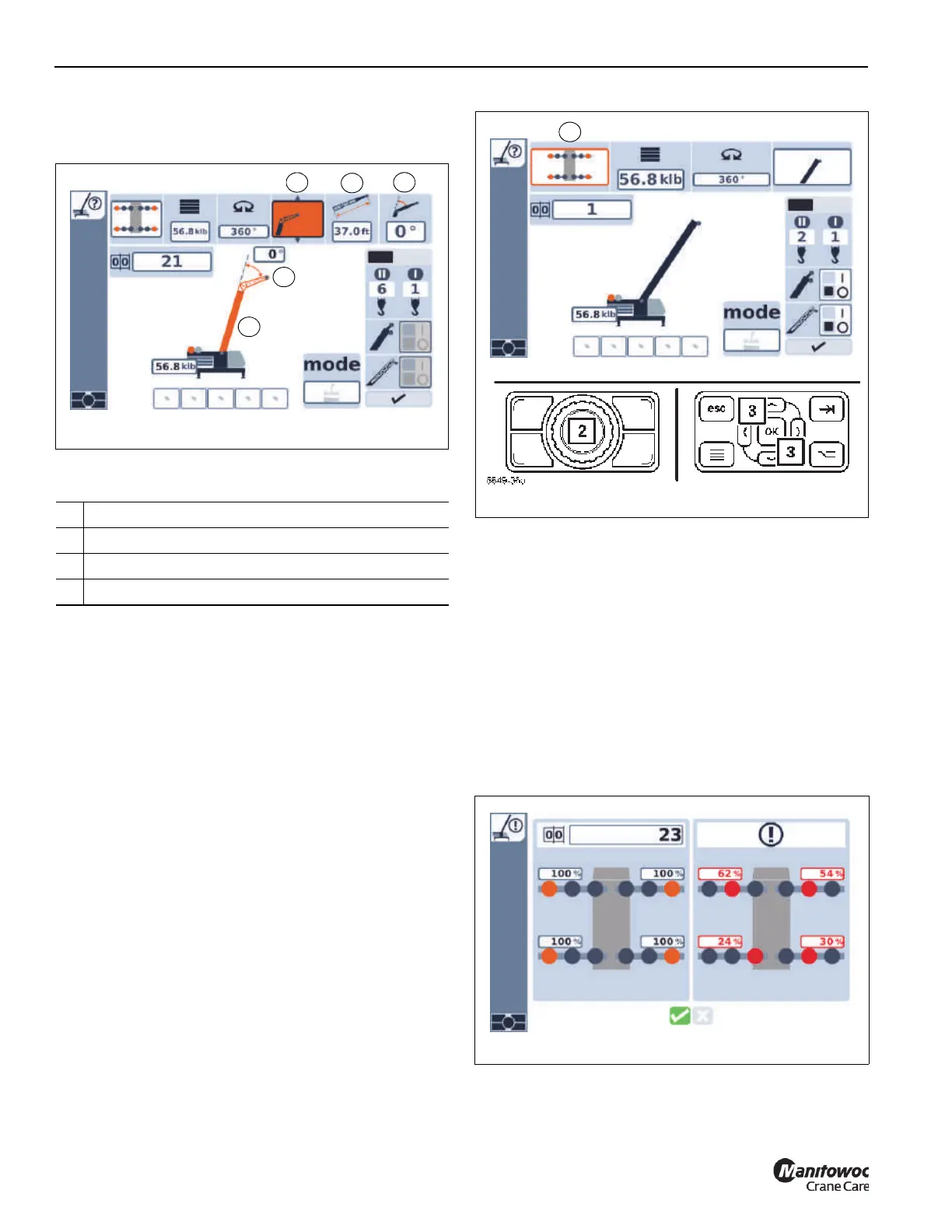

Boom System
• Select and confirm the symbol (1, Figure 4-185).
• Use symbol (1, Figure 4-185) to select the rigged boom
system.
• Confirm each selection.
Outrigger Span
• Select and confirm the symbol (1, Figure 4-186).
• Use the buttons (2) or (3) to select the rigged outrigger
span.
• Confirm the selection.
The outrigger span is monitored when outrigger monitoring is
installed. You must check the outrigger span when entering
the rigging mode.
If the OMS does not match the selected positions an
additional screen opens after selecting the check mark at the
bottom right corner of this screen. The detected positions
and selected positions are shown side by side Figure 4-187.
The operator has the choice of 1) Returning to this setup
screen to change the selection –OR– 2) Verifying that the
chosen outrigger position is the one to use even though it
doesn't match the OMS, in which case the screen transitions
to the main viewing screen.
2 Main boom
3 Main boom with lattice extension
4 Angle of the manual lattice extension
5 Length of lattice extension
FIGURE 4-186
1
8849-36a
9905-6
