5-20 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL
3
Counterweight Cylinder
Indicator
Green indicates the counterweight cylinders can be
raised or lowered.
Yellow indicates the counterweight cylinders are outside
of the range for raising or lowering the counterweight
(176.5° to -176.5°).
Red indicates the counterweight cylinders cannot be
raised or lowered.
4 Automatic Mode Icons
Gray indicates that the swing angle is outside of the
automatic mode swing angle range (176.5° to -176.5°).
Blue indicates the swing angle is in the automatic mode
swing angle range (176.5° to -176.5°).
Orange indicates the Automatic Mode icon is
highlighted. Use the ODM keypad or jog dial to enter
Automatic Mode.
5
Lock and Unlock Icons
(Manual Mode Only)
Blue indicates the counterweight pin lock and unlock
icon is not highlighted.
Orange indicates the counterweight pin lock or unlock
icon is highlighted.
Green indicates the lock or unlock icon is selected when
removing or retracting Counterweight Pins in manual
mode. For more information, see Manual Mode, page
5-26.
6
Carrier Alignment
Indicators
Indicates the counterweight alignment relative to the
counterweight stops on the carrier deck.
7
Counterweight Pin
Indicators
Green indicates the counterweight pin is fully extended.
Yellow indicates the counterweight pin is partially
extended or retracted.
Red indicates the counterweight pin is fully retracted.

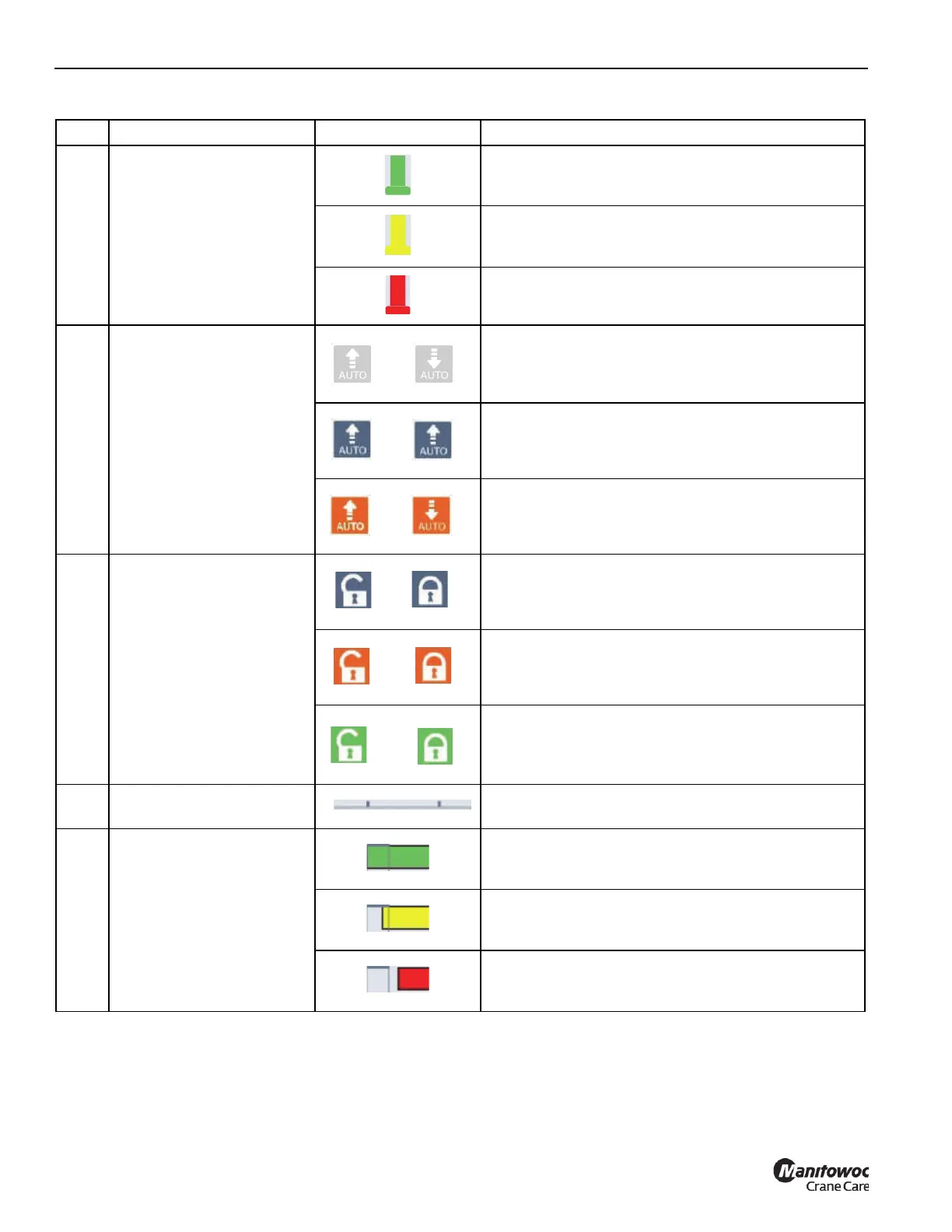

Table 5-1 ODM Counterweight Overview (Continued)
Item Name Symbol Description
