Grove Published 7-23-2020, Control # 668-02 5-21
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
8
Counterweight Cylinder
Remove/Install Arrows
(Manual Mode Only)
Gray indicates the arrows are inactive because the
swing angle is outside of the 179.5° to -179.5° range.
Black indicates the arrows are active. The counterweight
cylinder remove and install arrows can be highlighted
and selected when the swing angle is in the 179.5° to
-179.5° range.
An orange border indicates the arrow is highlighted. Use
the ODM navigation panel or jog dial to highlight the
arrow when using manual mode. The Up arrow raises
the counterweight cylinders. The down arrow lowers the
counterweight cylinders.
Orange (solid) indicates the remove (down) or install
(up) function is selected. When the arrow is highlighted,
press and hold the OK button on the ODM navigation
control panel or the jog dial to select the function. For
more information, see Manual Mode, page 5-26.
9
Counterweight Status
Indicators
Green indicates the counterweight is installed on the
superstructure.
Red indicates the counterweight is not installed on the
superstructure.
10 Controller Icon
Indicates the Swing Controller should be moved and
held to the left to start and progress through automatic
mode steps to install or remove the counterweight.
Indicates the Swing Controller should be moved and
held to the right to start and progress through automatic
mode steps to install or remove the counterweight.
Indicates the Swing Controller can be moved and held in
either direction to start and progress through automatic
mode steps to install or remove the counterweight.
11 Swing Caution Icon
Indicates that the swing speed is reduced because the
counterweight not being fully raised. This icon appears
when installing the counterweight in automatic or manual
mode.

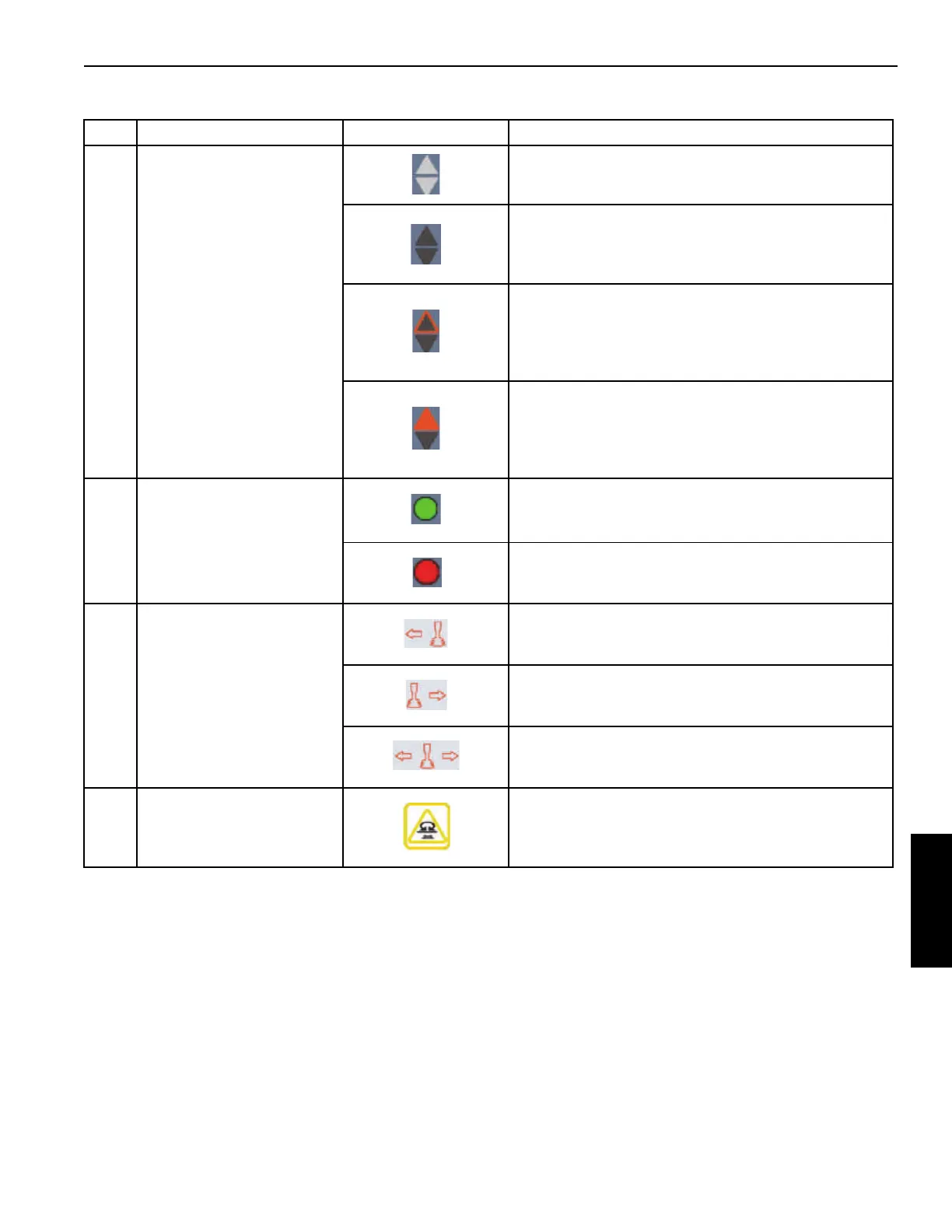

Table 5-1 ODM Counterweight Overview (Continued)
Item Name Symbol Description
