5-38 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL
12 Line Parts.
7 Sheave
Hook Block.
13 Line Parts.
7 Sheave
Hook Block.

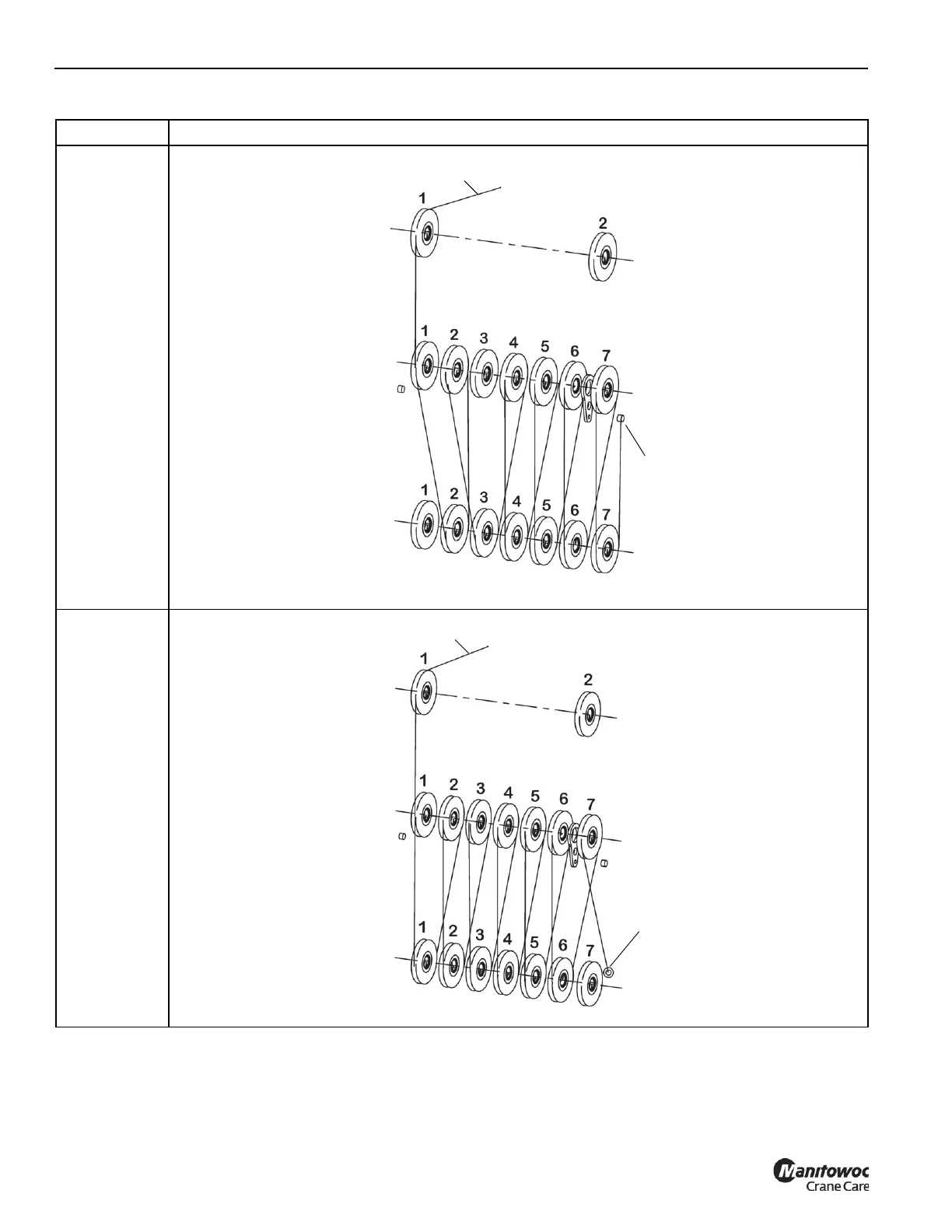

Table 5-2 Possible Multi-part Line Reeving Combinations (Continued)
Line Part Reference Drawing
Hook Block Sheaves
Upper Boom
Nose Sheaves
Boom Nose
Dead End
Lower Boom
Nose Sheaves
To main hoist
10050
Hook Block Sheaves
Lower Boom
Nose Sheaves
Upper Boom
Nose Sheaves
Hook Block
Dead End
To main hoist
10051
