GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION
5
14 Line Parts.
7 Sheave
Hook Block.
15 Line Part.
7 Sheave
Hook Block.
Auxiliary
Boom Nose.

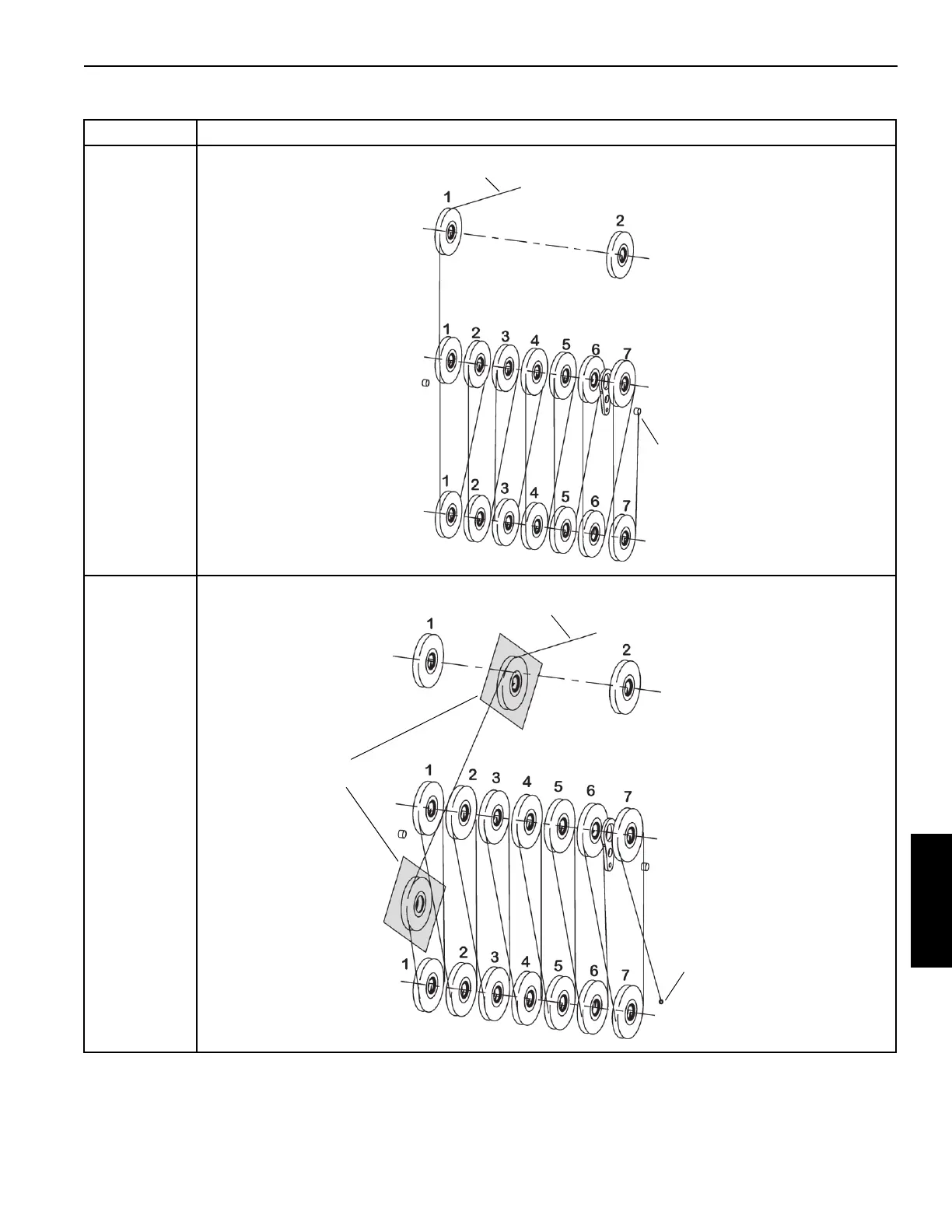

Table 5-2 Possible Multi-part Line Reeving Combinations (Continued)
Line Part Reference Drawing
Hook Block Sheaves
Lower Boom
Nose Sheaves
Upper Boom
Nose Sheaves
Boom Nose
Dead End
To main hoist
10052
Hook Block Sheaves
Lower Boom
Nose Sheaves
Upper Boom
Nose Sheaves
Hook Block
Dead End
To main hoist
Auxiliary
Nose Boom
10053
