5-40 Published 7-23-2020, Control # 668-02
SET-UP AND INSTALLATION GRT9165 OPERATOR MANUAL
16 Line Parts.
8 Sheave
Hook Block.
Auxiliary
Boom Nose.

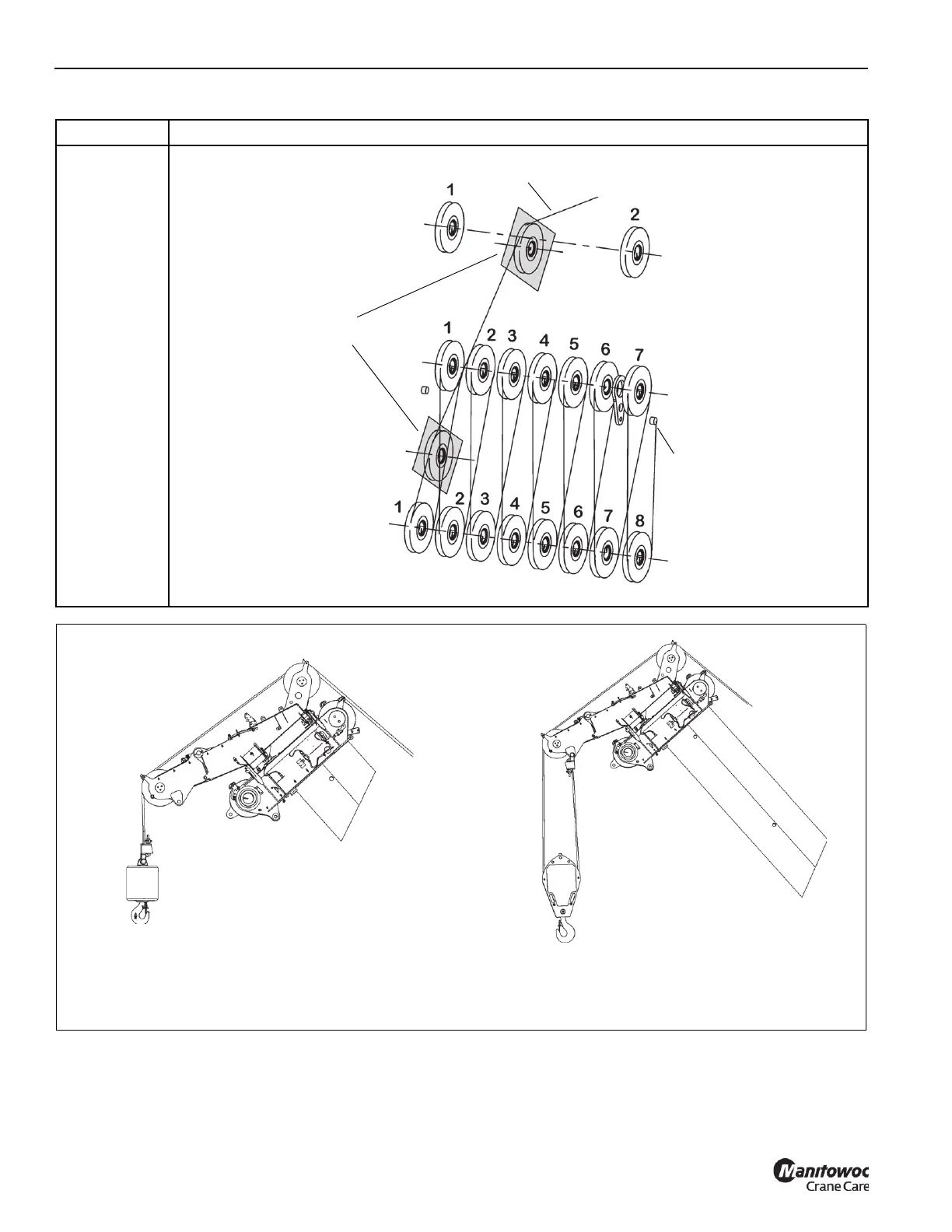

Table 5-2 Possible Multi-part Line Reeving Combinations (Continued)
Line Part Reference Drawing
Hook Block Sheaves
Lower Boom
Nose Sheaves
Upper Boom
Nose Sheaves
Auxiliary
Nose Boom
Boom Nose
Dead End
To main hoist
10054
FIGURE 5-22
Auxiliary Boom Nose
with Overhaul Weight
Auxiliary Boom Nose
with Hook Block
10041
10042
