Grove Published 7-23-2020, Control # 668-02 6-29
GRT9165 OPERATOR MANUAL MAINTENANCE AND LUBRICATION
NOTE 26: CHECK fluid level in each of two (2) Swing Drive Gearboxes, and FILL to MAX LEVEL on DIPSTICK.
NOTE 27: CHECK level in each of two (2) Swing Drive Gearbox Brake Assemblies, and FILL to TOP of ELBOW.
NOTE 28: Perform same service for each of two (2) Boom Pivot Pins.
NOTE 29: DO NOT USE non semi-synthetic lubricant. Use of non-approved lubricant may damage components.
NOTE 30: Before operating crane in cold weather (arctic) ambient temperatures below -9°C (+15°F), Standard lubricant
must be fully purged and replaced with Cold Weather lubricant meeting Grove U.S. L.L.C. specifications as
shown in Table 6-4: Approved Lubricant Reference Table, page 6-11 in this Operator Manual. See also your
Service Manual for maintenance and lubrication instructions.
Item
Lube Point
Description
Figure No.
Approved
Lubricant
Approximate
Capacity
Service Interval
Service
Application
CAUTION
Possible Equipment Damage!
Use semi-synthetic or synthetic lubricants as listed in Section 6 of this Operator Manual. See
also your Service Manual for maintenance and lubrication instructions.
Use of non-approved, non semi-synthetic lubricant may damage components and/or
invalidate published lubricant intervals.
Failure to follow this instruction may cause damage to equipment.
FIGURE 6-13
9900-11

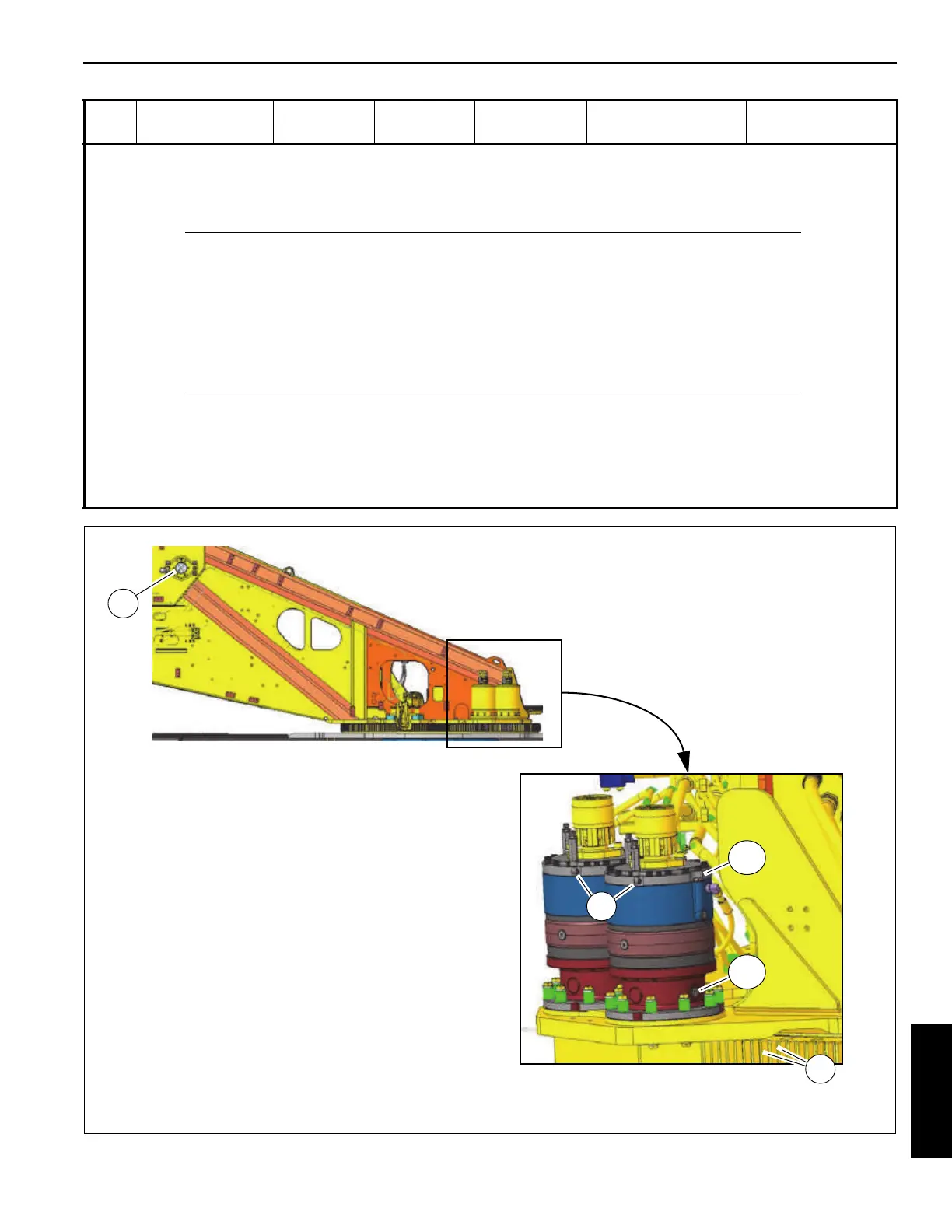

RIGHT SIDE VIEW – SUPERSTRUCTURE
25
26
23b
24
23a
To Next Page
