Manitowoc National Crane 500E2 Service Manual

National Crane Published 08/16/19 Control # 112-05 9-5
500E2 SERVICE MANUAL CRANE INSTALLATION
9

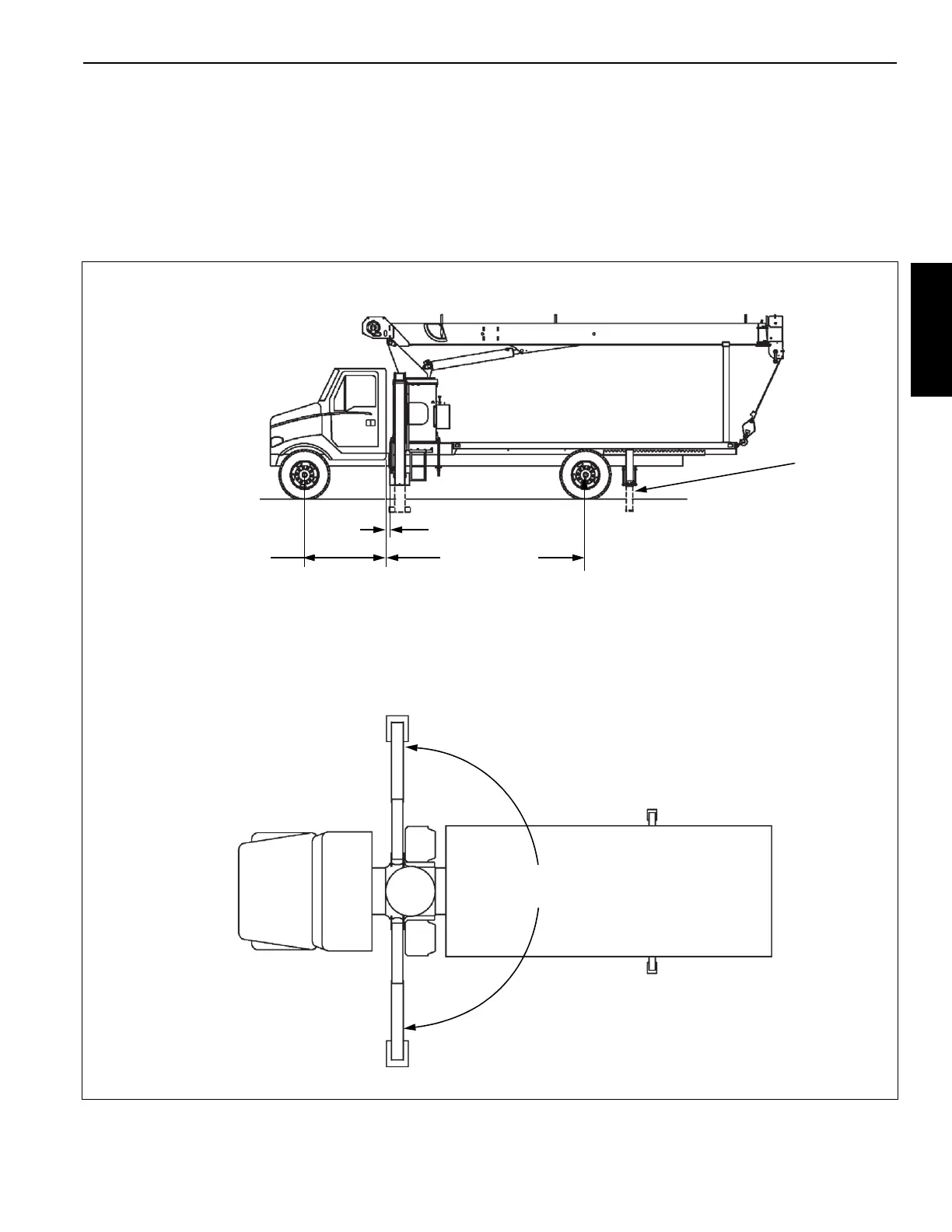

Configuration 3 - 560E2
This configuration allows the installation of the Series 560E
on a chassis with a small frame by using the standard sub-
base for 18' bed. In most cases, the chassis will not require
reinforcing and the amount of counterweight required as
minimized increasing payload capabilities.
Requires 12,000 (5443 kg) GAWRF, 21,000 (9525 kg)
GAWRR, 33,000 (14,968 kg) GVWR, ASH rear stabilizers
and sub-base for 18' bed. Full capacity work area is rear
180× of vehicle from outrigger to outrigger. Tandem axle
trucks may be used for hauling larger payloads. Truck frame
must have or be capable of being reinforced to 15.9 in.3 S.M.
(218 cm
3
) and 1,749,000 in-lb (197,610 N-m) RBM under the
crane, spring hanger to spring hanger.
180° Full Capacity
Work Area
69 (175.2) Min
3 (7.6) Min
154 (391.1) Min
*6800 lb
(3084) kg
Min
*5500 lb
(2494) kg
Min
* Actual scale weights prior to
installation of crane, sub-base,
and stabilizers
Note: All dimensions inch (cm)
Ash
